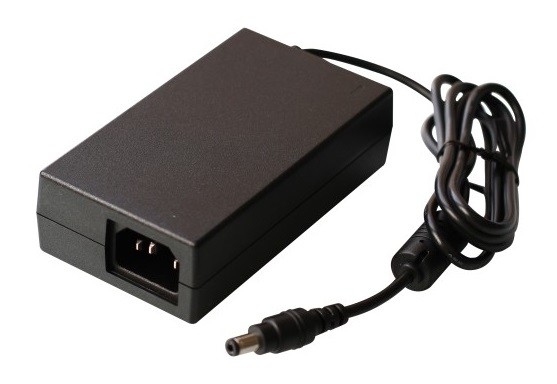

Fortron Source FSP084-DHAC3L

Power Adapter

PRODUCT FEATURES

// Power Adapter
// 84 W

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION

Basic Module: Fortron Source FSP084-DHAC3L

General information
SKU / Item NumberFSP084-DHAC3L
Product Basic Data
ManufacturerFortron Source
Power Supply
Typ (Input)ACRange90~264V
Input frequency47 to 63 Hz
ConnectorC14
Power supply - InputAC: 90~264V
Output wattage84 W
EfficiencyAt 100% load / 25°C89 %
Typ (Output)DCRange12V
ConnectorDC Power Jack
Current7 A
Mechanical / Environment
TemperatureOperation0°C to 70°C
Storage-20° to 80°C
Relative humidityOperation10 to 85%, non-condensing
Storage10 to 95%, non-condensing
DimensionsForm factorAC/DC Power Adapter
Width62 mm
Deep110 mm
Height31,5 mm
MTBF (Mean Time Between Failures)MTBF at 25°C30.000 h
Certificates / Conformities
CEYes
ULYes
FCCClass BYes
CCCYes
Additional certificates / compliance approvalsCISPR 32, DOE Level VI, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC 62368-1, VCCI
RoHS compliantYes
