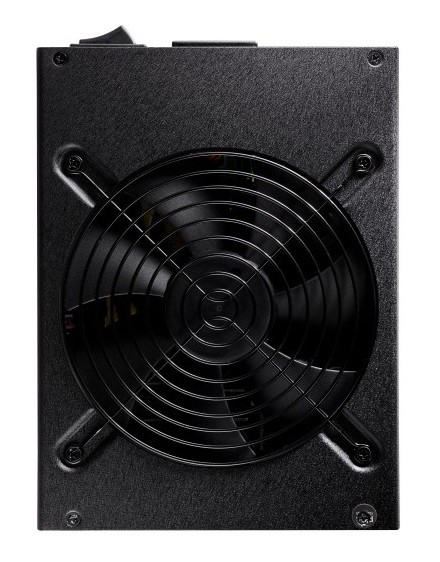

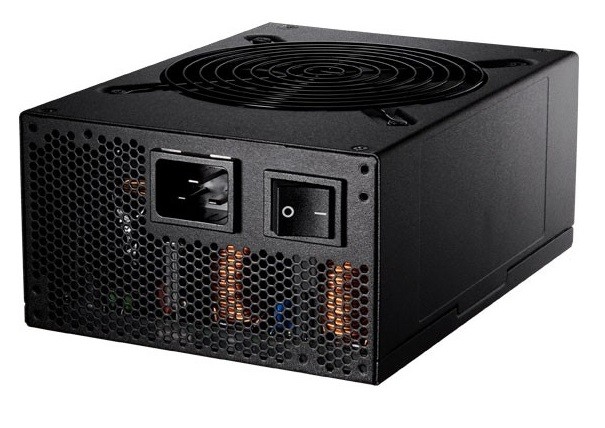

Fortron Source FSP2500-57APB

PS/2 Power Supplies - Single

PRODUCT FEATURES

// PS/2 Power Supplies - Single
// 2500 W

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Fortron Source FSP2500-57APB

General information
	SKU / Item Number			FSP2500-57APB
Product Basic Data
	Manufacturer			Fortron Source
Power Supply
	Typ (Input)	AC	Range	200~240V
			Input frequency	50-60 Hz
			Connector	C19
	Power supply - Input			AC: 200~240V
	Output wattage			2500 W
	Output Voltage	+5V	Output Current Max	25 A
		+12V	Output Current Max	208,3 A
		-12V	Output Current Max	0,3 A
		+3.3V	Output Current Max	25 A
		+5V Standby	Output Current Max	4 A
	Efficiency	At 100% load / 25°C		94 %
Mechanical / Environment
	Temperature	Operation		0° to 50°C
		Storage		-40°C to 70°C
	Relative humidity	Operation		5 to 90%, non-condensing
		Storage		5 to 90%, non-condensing
	Dimensions	Form factor		PS/2
		Width		200 mm
		Deep		150 mm
		Height		86 mm
	MTBF (Mean Time Between Failures)	MTBF at 25°C		100.000 h
Certificates / Conformities
	CE			Yes
	UL			Yes
	FCC	Class B		Yes
	CCC			Yes
	Additional certificates / compliance approvals			80 PLUS Platinum, CB, UKCA
	Compatibility			ATX Specification Version 3.1
	RoHS compliant			Yes
