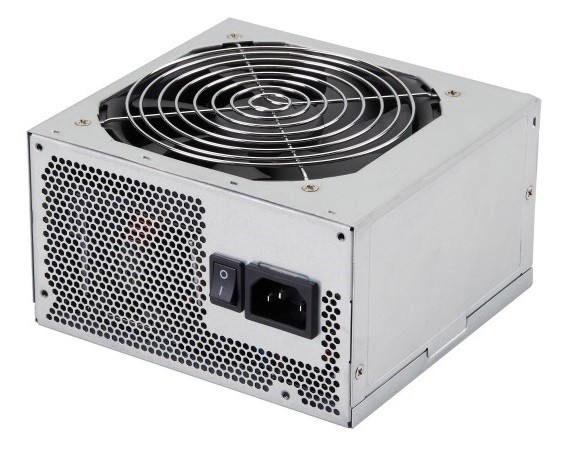

Fortron Source FSP450-51AAC

PS/2 Power Supplies - Single

PRODUCT FEATURES

// PS/2 Power Supplies - Single
// 450 W

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Fortron Source FSP450-51AAC

General information
	SKU / Item Number			FSP450-51AAC
Product Basic Data
	Manufacturer			Fortron Source
Power Supply
	Typ (Input)	AC	Range	180~264V
			Input frequency	50-60 Hz
			Connector	C14
	Power supply - Input			AC: 180~264V
	Output wattage			450 W
	Output Voltage	+5V	Output Current Max	20 A
		+12V	Output Current Max	37,5 A
		-12V	Output Current Max	0,3 A
		+3.3V	Output Current Max	20 A
		+5V Standby	Output Current Max	2,5 A
	Efficiency	At 100% load / 25°C		88 %
Mechanical / Environment
	Temperature	Operation		0° to 50°C
		Storage		-20° to 80°C
	Relative humidity	Operation		5 to 90%, non-condensing
		Storage		5 to 90%, non-condensing
	Dimensions	Form factor		PS/2
		Width		150 mm
		Deep		140 mm
		Height		86 mm
	MTBF (Mean Time Between Failures)	MTBF at 25°C		100.000 h
Certificates / Conformities
	CE			Yes
	UL			Yes
	FCC	Class B		Yes
	Additional certificates / compliance approvals			80 PLUS Bronze, CB, UKCA
	Compatibility			ATX Specification Version 2.52
	RoHS compliant			Yes
