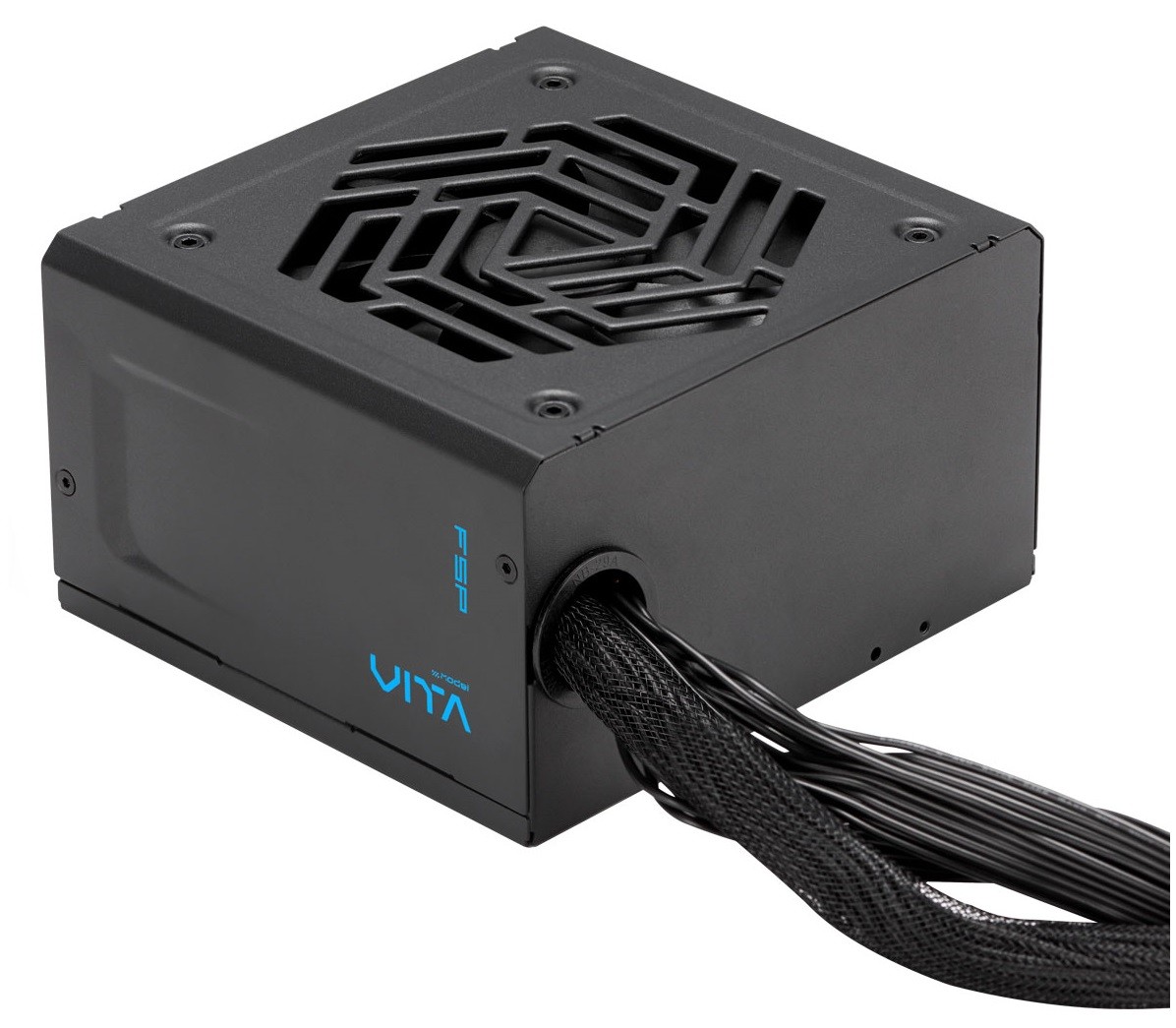

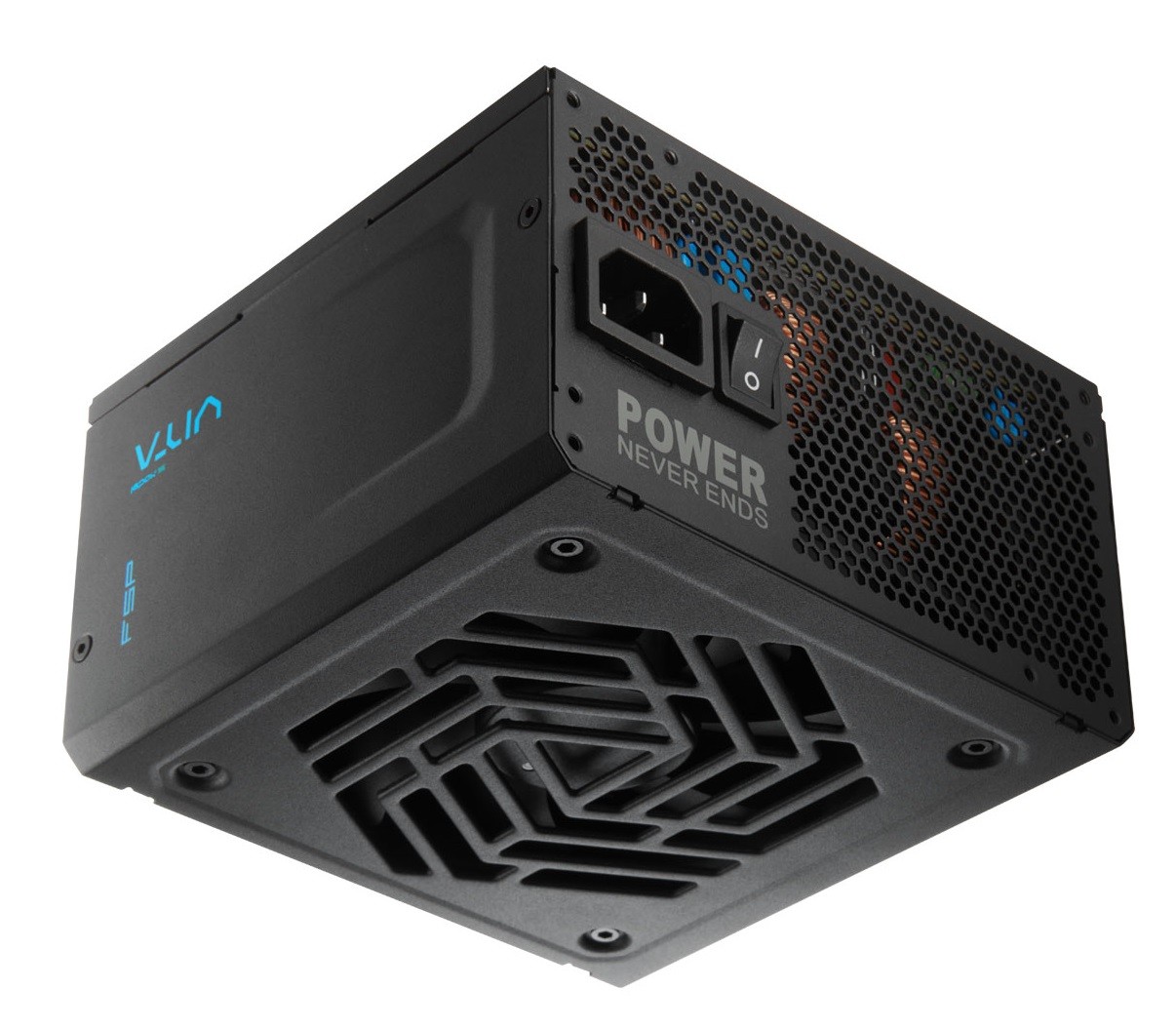

Fortron Source VITA-850BD

PS/2 Power Supplies - Single

PRODUCT FEATURES

// PS/2 Power Supplies - Single
// 850 W

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Fortron Source VITA-850BD

General information
	SKU / Item Number			VITA-850BD
Product Basic Data
	Manufacturer			Fortron Source
Power Supply
	Typ (Input)	AC	Range	200~240V
			Input frequency	50-60 Hz
			Modules	1 Pce
			Connector	C14
	Power supply - Input			AC: 200~240V
	Output wattage			850 W
	Output Voltage	+5V	Output Current Max	20 A
		+12V	Output Current Max	70,83 A
		-12V	Output Current Max	0,3 A
		+3.3V	Output Current Max	20 A
		+5V Standby	Output Current Max	2,5 A
	Efficiency	At 100% load / 25°C		88 %
Mechanical / Environment
	Temperature	Operation		0° to 40°C
		Storage		-20° down to 70°C
	Relative humidity	Operation		0 to 90%, non-condensing
		Storage		0 to 95%, non-condensing
	Dimensions	Form factor		PS/2
		Width		140 mm
		Deep		150 mm
		Height		86 mm
	Shock	Measurement Data		10G, half sine wave, 11 ms duration
	Color			Black
Certificates / Conformities
	CE			Yes
	FCC	Class B		Yes
	Additional certificates / compliance approvals			80 PLUS Bronze, EN 55032, EN 61000-4-2 (Electrostatic Discharge), IEC 62368-1, KC
	Compatibility			ATX Specification Version 3.1
	RoHS compliant			Yes
