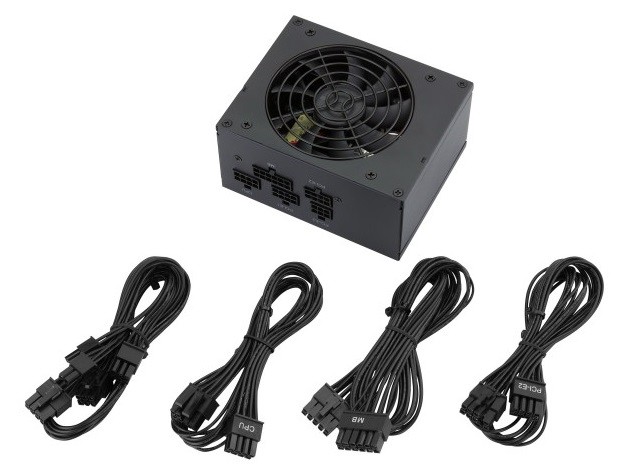

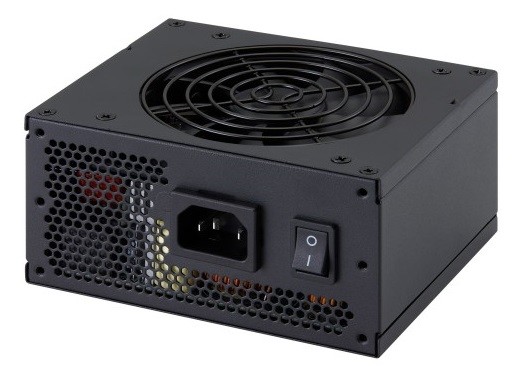

Fortron Source FSP650-27SCB

Special Power Supplies - Single

PRODUCT FEATURES

// Special Power Supplies - Single
// 650 W

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Fortron Source FSP650-27SCB

General information
	SKU / Item Number			FSP650-27SCB
Product Basic Data
	Manufacturer			Fortron Source
Power Supply
	Typ (Input)	AC	Range	90~264V
			Input frequency	47 to 63 Hz
			Connector	C14
	Power supply - Input			AC: 90~264V
	Output wattage			650 W
	Output Voltage	+12V	Output Current Max	54,17 A
	Efficiency	At 100% load / 25°C		90 %
Mechanical / Environment
	Temperature	Operation		0° to 40°C
		Storage		-40°C to 70°C
	Relative humidity	Operation		0 to 90%, non-condensing
		Storage		0 to 90%, non-condensing
	Dimensions	Width		100 mm
		Deep		125 mm
		Height		63,5 mm
	MTBF (Mean Time Between Failures)	MTBF at 25°C		100.000 h
Certificates / Conformities
	CE			Yes
	FCC	Class B		Yes
	CCC			Yes
	Additional certificates / compliance approvals			80 PLUS Gold, BSMI, CB, KC, UKCA
	RoHS compliant			Yes
