TFX Industrial Power Supplies
// TFX Industrial Power Supplies
// 300 W
Sales only to business customers.
Delivery time: upon request

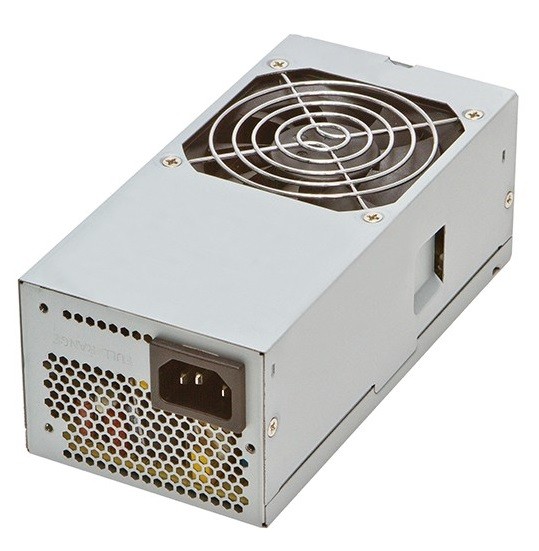

Basic Module: Fortron Source FSP300-60SGV
| General information | ||||
| SKU / Item Number | FSP300-60SGV | |||
| Product Basic Data | ||||
| Manufacturer | Fortron Source | |||
| Power Supply | ||||
| Typ (Input) | AC | Range | 100~240V | |
| Input frequency | 47 to 63 Hz | |||
| Connector | C14 | |||
| Power supply - Input | AC: 100-240V | |||
| Output wattage | 300 W | |||
| Output Voltage | +5V | Output Current Max | 18 A | |
| -12V | Output Current Max | 0,3 A | ||
| +3.3V | Output Current Max | 18 A | ||
| +5V Standby | Output Current Max | 3 A | ||
| +12V1 | Output Current Max | 13 A | ||
| +12V2 | Output Current Max | 13 A | ||
| Efficiency | At 100% load / 25°C | 85 % | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -20° down to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | TFX | ||
| Width | 85 mm | |||
| Deep | 175 mm | |||
| Height | 65 mm | |||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 100.000 h | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | 80 PLUS Gold, CB, IEC 62368-1, KC | |||
| Compatibility | Intel Design TFX 12V V2.53 | |||
| RoHS compliant | Yes | |||
