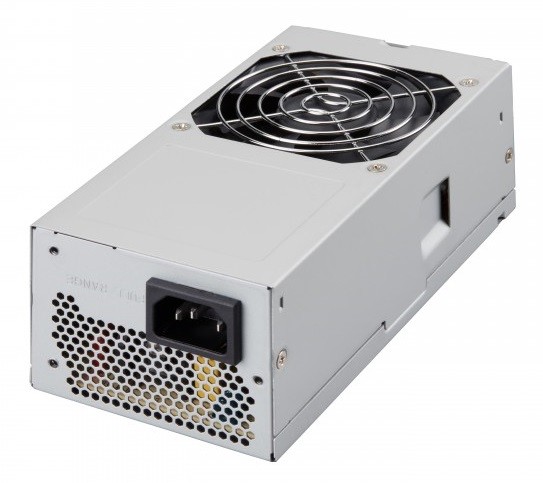

Fortron Source FSP450-51TAC

TFX Industrial Power Supplies

PRODUCT FEATURES

// TFX Industrial Power Supplies
// 450 W

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Fortron Source FSP450-51TAC

General information
	SKU / Item Number			FSP450-51TAC
Product Basic Data
	Manufacturer			Fortron Source
Power Supply
	Typ (Input)	AC	Range	180~270V
			Input frequency	50-60 Hz
			Connector	C14
	Power supply - Input			AC: 180~270V
	Output wattage			450 W
	Output Voltage	+5V	Output Current Max	16 A
		+12V	Output Current Max	37 A
		-12V	Output Current Max	0,3 A
		+3.3V	Output Current Max	16 A
		+5V Standby	Output Current Max	2,5 A
	Efficiency	At 100% load / 25°C		85 %
Mechanical / Environment
	Temperature	Operation		0° to 40°C
		Storage		-40°C to 70°C
	Relative humidity	Operation		0 to 90%, non-condensing
		Storage		0 to 90%, non-condensing
	Dimensions	Form factor		TFX
		Width		85 mm
		Deep		175 mm
		Height		65 mm
	MTBF (Mean Time Between Failures)	MTBF at 25°C		100.000 h
Certificates / Conformities
	CE			Yes
	FCC	Class A		Yes
	Additional certificates / compliance approvals			80PLUS 230V EU, CB, KC
	Compatibility			Intel Design TFX 12V V2.53
	RoHS compliant			Yes
