CAN Bus Interface Cards
// M.2 CAN Bus Interface Cards
// 2 x CAN Bus [CANopen
// SAE J1939]
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

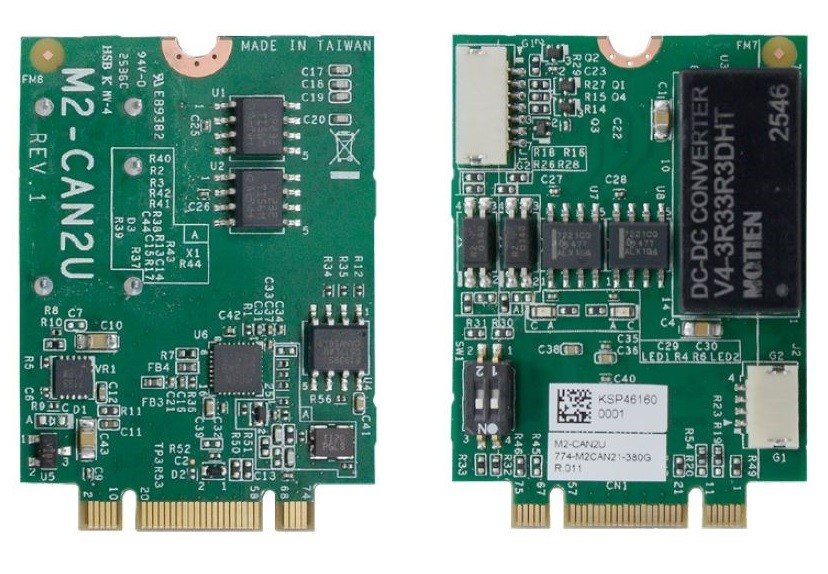

Basic Module: DFI M2-CAN2
| General information | ||||
| SKU / Item Number | M2-CAN2 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-M2CAN21-080G, 770-M2CAN21-180G, 770-M2CAN21-280G, 770-M2CAN21-380G | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B + M | |
| Supported dimensions | 3042 | |||
| M.2 Key IDs | B + M | |||
| External I/O | ||||
| CAN bus | Connector | DB-9 | ||
| piece | 2 Pce | |||
| Protocol | CANopen, SAE J1939 | |||
| Baud rate | 10 Kbps, 20 Kbps, 50 Kbps, 125 Kbps, 250 Kbps, 500 Kbps, 800 Kbps, 1000 Kbps | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Dimensions | Form factor | M.2 | ||
| Interface | PCI Express 1.0 x 1, USB 2.0 | |||
| Width | 30 mm | |||
| Deep | 42 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | EN 61000-4-2 (Electrostatic Discharge), IEC 62368-1 | |||
| RoHS compliant | Yes | |||
