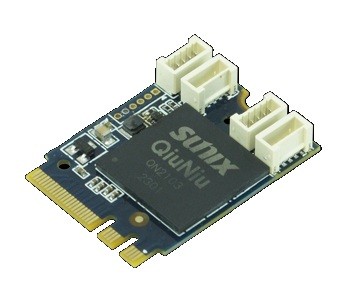

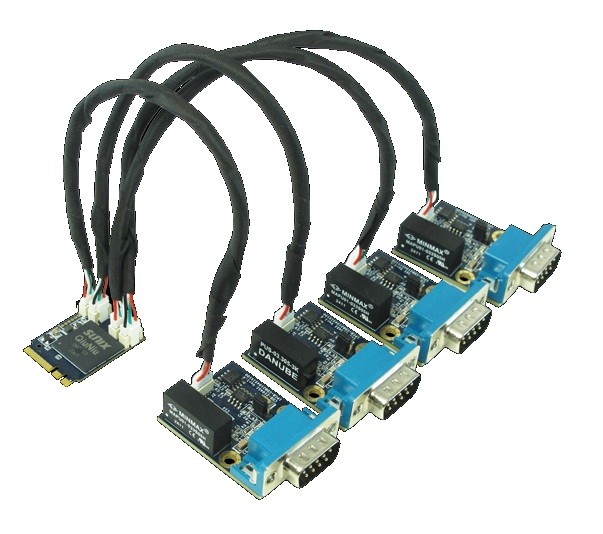

Sunix CAN-A2104SI

CAN Bus Interface Cards

PRODUCT FEATURES

// CAN Bus Interface Cards
// 4 x CAN Bus [CAN 2.0A
// CAN 2.0B
// CAN-FD]

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Sunix CAN-A2104SI

General information
	SKU / Item Number			CAN-A2104SI
Product Basic Data
	Manufacturer			Sunix
Extension
	M.2	Slot 1	Key ID	A, E
			Interface	PCIe ×1 (Gen. 2)
			Supported dimensions	2230
		M.2 Key IDs		A, E
Internal I/O
	CAN bus	Channel		4 Pce
		Protocol		CAN 2.0A, CAN 2.0B, CAN-FD
OS / Software
	Windows	Windows 10 (64-bit)		is supported
		Windows 11		Supported
	Linux	Distribution		Linux
	Supported OS			Windows, Linux
Mechanical / Environment
	Temperature	Operation		-40°C to 85°C
		Storage		-40°C to 85°C
	Relative humidity	Operation		5 to 95%, non-condensing
	Dimensions	Type		2230
		Interface		PCI Express 2.0 x 1
		Width		22 mm
		Deep		30 mm
Certificates / Conformities
	CE			Yes
	FCC	Class B		Yes
	Additional certificates / compliance approvals			BSMI, EN 61000-4-2 (Electrostatic Discharge), UKCA, VCCI
	RoHS compliant			Yes
