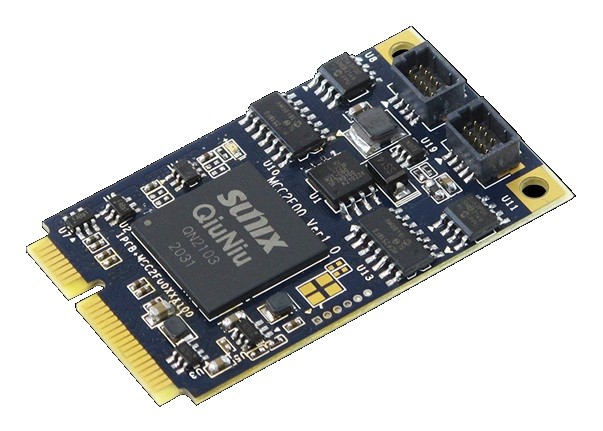

Sunix MCC2F00

CAN Bus Interface Cards

PRODUCT FEATURES

// CAN Bus Interface Cards
// 2 x CAN Bus [CAN 2.0A
// CAN 2.0B
// CAN-FD]
// 1 x Mini-PCIe

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Sunix MCC2F00

General information
	SKU / Item Number			MCC2F00
Product Basic Data
	Manufacturer			Sunix
Extension
	Mini-PCIe	Full installation depth	Quantity	1 Pce
	PCIe Interfaces			1x Mini-PCIe
Internal I/O
	CAN bus	Channel		2 Pce
		Protocol		CAN 2.0A, CAN 2.0B, CAN-FD
OS / Software
	Windows	Windows 10 (64-bit)		is supported
		Windows 11		Supported
	Linux	Distribution		Linux
	Supported OS			Windows, Linux
Mechanical / Environment
	Temperature	Operation		-20° down to 70°C
		Storage		-20° to 85°C
	Relative humidity	Operation		5 to 95%, non-condensing
	Dimensions	Interface		mPCIe
		Width		30 mm
		Deep		50 mm
Certificates / Conformities
	CE			Yes
	FCC	Class B		Yes
	Additional certificates / compliance approvals			BSMI, EN 61000-4-2 (Electrostatic Discharge), VCCI, WEEE (Waste Electrical and Electronic Equipment)
	RoHS compliant			Yes
