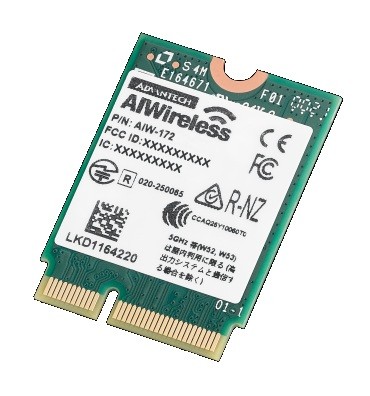

Basic Module: Advantech AIW-172BQ
| General information | ||||
| SKU / Item Number | AIW-172BQ | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Product ID | AIW-172BQ-GC1 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E | |||
| Network | ||||
| Wireless | Wi-Fi | Protocol | 802.11a/b/g/n/ac/ax/be | |
| Bluetooth | Type | v5.3 | ||
| Network | Wi-Fi, Bluetooth | |||
| OS / Software | ||||
| Linux | Distribution | Linux | ||
| Supported OS | Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0°C to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | M.2 | ||
| Type | 2230 | |||
| Width | 22 mm | |||
| Deep | 30 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | International Certificate (IC), KC | |||
| RoHS compliant | Yes | |||
