Serial Interface Cards
// M.2 Serial Interface Cards
// 2 x Seriell I/O
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

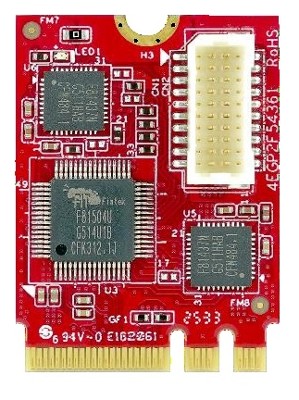

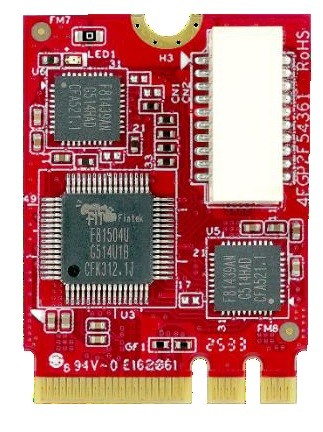

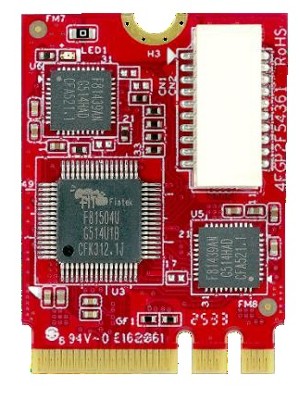

Basic Module: Innodisk EGP2-X201
| General information | ||||
| SKU / Item Number | EGP2-X201 | |||
| Product Basic Data | ||||
| Manufacturer | Innodisk | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | A, E | |
| Supported dimensions | 2230 | |||
| M.2 Key IDs | A, E | |||
| External I/O | ||||

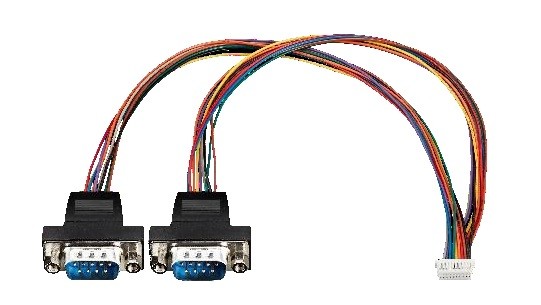

| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| OS / Software | ||||
| Windows | Windows XP (32/64-bit) | partially supported | ||
| Windows 7 (32/64-bit) | is supported | |||
| Windows 8 (32-bit) | is supported | |||
| Windows 8 (64-bit) | is supported | |||
| Windows 8.1 (32-bit) | is supported | |||
| Windows 8.1 (64-bit) | is supported | |||
| Windows 10 (64-bit) | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 85°C | ||
| Storage | -55°C to 95°C | |||
| Thermal Design Power (TDP) | 0,81 W | |||
| Dimensions | Form factor | M.2 | ||
| Type | 2230 | |||
| Interface | PCI Express 1.0 x 1 | |||
| Width | 22 mm | |||
| Deep | 30 mm | |||
| Height | 5,7 mm, 6,85 mm | |||
| Vibration | Vibration | 5G, 5 to 500 Hz | ||
| Shock | Measurement Data | 50G, 0.5 ms | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| Additional certificates / compliance approvals | EN 61000-4-2 (Electrostatic Discharge) | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
