Sunix IPC-M2204S

Serial Interface Cards

PRODUCT FEATURES

// Serial Interface Cards

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Sunix IPC-M2204S

General information
	SKU / Item Number			IPC-M2204S
Product Basic Data
	Manufacturer			Sunix
Extension
	M.2	Slot 1	Key ID	B + M
			Interface	PCIe ×1 (Gen. 2)
			Supported dimensions	2280
		M.2 Key IDs		B + M
Internal I/O

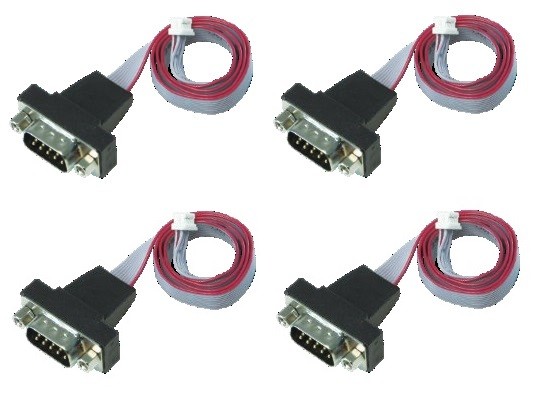

	Serial	RS-422 / 485	1.00 mm spacing	4 Pce
OS / Software
	Windows	Windows XP (32/64-bit)		is supported
		Windows 7 (32/64-bit)		is supported
		Windows 8 (32-bit)		is supported
		Windows 8 (64-bit)		is supported
		Windows 8.1 (32-bit)		is supported
		Windows 8.1 (64-bit)		is supported
		Windows 10 (64-bit)		is supported
		Windows Server 2012		is supported
		Windows Server 2016		is supported
		Windows Server 2022		is supported
	Linux	Distribution		Linux
	Supported OS			Windows, Linux
Mechanical / Environment
	Temperature	Operation		0°C to 70°C
		Storage		-20° to 85°C
	Relative humidity	Operation		5 to 95%, non-condensing
		Storage		5 to 95%, non-condensing
	Dimensions	Interface		PCI Express 1.0 x 1
		Width		22 mm
		Deep		80 mm
Certificates / Conformities
	CE			Yes
	FCC	Class B		Yes
	Additional certificates / compliance approvals			BSMI, EN 55022, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-5 (2 kV Surge Protection)
	RoHS compliant			Yes
