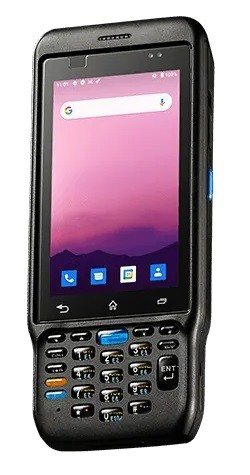

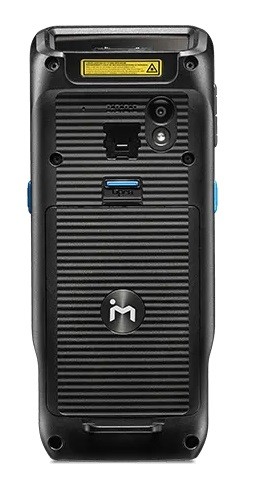

Rugged Handheld Computer
// 4.3" TFT LCD
// Qualcomm Snapdragon 660 (SDM660)
// Touchscreen (Capacitive)
// IP65 (full)
// SoC (System on a Chip)
// 4 GB
// 1 x USB (Front page)
// 64 GB eMMC
Sales only to business customers.
Delivery time: upon request
Basic Module: Winmate MC432
| General information | ||||
| SKU / Item Number | MC432 | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Number | Qualcomm Snapdragon 660 (SDM660) | ||
| CPU cores | 8 Pce | |||
| Max Turbo Frequency | 2,2 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Internal memory | 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Graphics | ||||
| Processor | Qualcomm Adreno 512 | |||
| Display | ||||
| Display Typ | 4.3" TFT LCD | |||
| Max. Resolution | 800 x 480 | |||
| Aspect Ratio | 5 : 3 | |||
| Luminance | 650 cd/m² | |||
| Touch Screen | Type | Capacitive | ||
| Audio | Speaker | 1 Pce | ||
| Display Audio - Microphone | 1 Pce | |||
| Extension | ||||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | Micro SD | |||
| Network | ||||
| Wireless | Wi-Fi | Protocol | 802.11a/b/g/n/ac | |
| Bluetooth | Type | v5.0 | ||
| RFID | Type | 13.56 MHz (ISO 14443 A/B, FeliCa) | ||
| Network | Wi-Fi, Bluetooth, RFID | |||
| Externe I/O (Front Panel) | ||||
| USB | USB On-The-Go (USB OTG) | 1 Pce | ||
| Barcode Scanner | Yes | |||
| Sensor | ||||
| 3D sensor | 3D Accelerometer, 3D Gyroscope | |||
| E-Compass | Yes | |||
| Light Sensor | Yes | |||
| Proximity sensor | Yes | |||
| Power Supply | ||||
| Typ (Input) | DC | Connector | USB Type-C | |
| Battery | Type | 3.85V typ. 4000 mAh Li-Polymer-Akku | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20°C to 50°C | ||
| Storage | -40°C to 70°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | 4.3" | ||
| Width | 185,1 mm | |||
| Deep | 77 mm | |||
| Height | 33,7 mm | |||
| IP Rating | IP65 (full) | |||
| Vibration | Reference Standard | MIL-STD-810G Method 514.6 Procedure I | ||
| Shock | Reference Standard | MIL-STD-810G Method 516.6 Procedure I | ||
| Drop | Reference Standard | MIL-STD-810G | ||
| Drop height | 1,8 m | |||
| Weight | 323 g | |||
| Camera | Rear | Resolution | 16 MP | |
| Autofocus | Yes | |||
| LED light | Yes | |||
| Controls | Power | 1 Pce | ||
| Status indicators | System Status | 1 Pce | ||
| Color | Black | |||
| OS / Software | ||||
| Android | Release | 10 | ||
| Supported OS | Android | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | CB, International Certificate (IC), NCC, REACH, UKCA, WEEE (Waste Electrical and Electronic Equipment) | |||
| RoHS compliant | Yes | |||
