Rugged Tablets
// 14" TFT LCD
// Intel Core i5-1235U
// IP65 (full)
// SoC (System on a Chip)
// 8 GB
// 128 GB SSD
// 1 x G-LAN (Front page)
// 6 x USB (Front page)
// Power Supply DC 20V
Sales only to business customers.
Delivery time: upon request

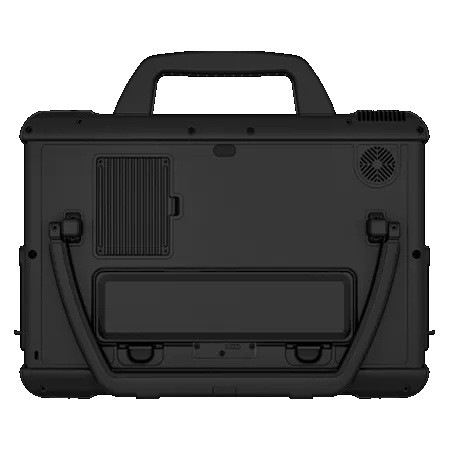

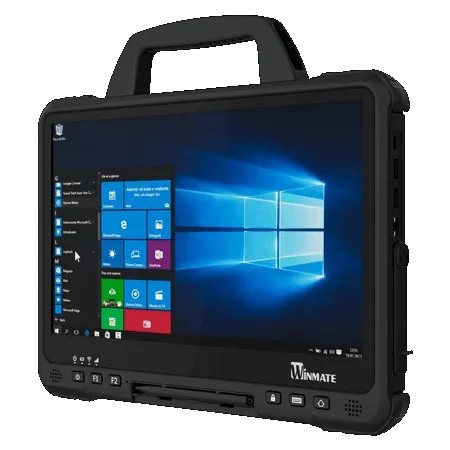

Basic Module: Winmate D140-H
| General information | ||||
| SKU / Item Number | D140-H | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Series | Intel Alder Lake | ||
| Number | Intel Core i5-1235U | |||
| CPU cores | 10 Pce | |||
| Threads | 12 Pce | |||
| Socket | BGA 1744 | |||
| Performance Core Max Turbo Frequency | 4,4 GHz | |||
| Efficient-core Max Turbo Frequency | 3,3 GHz | |||
| Cache | 12 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 55 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Slots | 1 Pce | ||
| Maximum expansion | 32 GB | |||
| Internal memory | 8 GB | |||
| Storage | Solid State Drive (SSD) | 128 GB | ||
| Power supply - Input | Solid State Drive (SSD) 128 GB | |||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Display | ||||
| Display Typ | 14" TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Contrast | 1000:1 | |||
| Luminance | 800 cd/m² | |||
| Viewing angle | Horizontal | 178 ° | ||
| Vertical | 178 ° | |||
| Audio | Speaker | 2 Pce | ||
| Watt | 1 W | |||
| Externe I/O (Front Panel) | ||||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 3.0 | 2 Pce | ||
| USB 3.2 (Gen 1) | 4 Pce | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Kensington Lock | Yes | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 20V | |||
| Connector | USB Type-C | |||
| Power supply - Input | DC: 20V | |||
| Battery | Type | 10.9V typical 6700 mAh Li-Polymer Battery | ||
| Battery Runtime | Standard | 8 h | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 30 to 75%, non-condensing | ||
| Dimensions | Form factor | 14-inch | ||
| Width | 355,55 mm | |||
| Deep | 250,71 mm | |||
| Height | 32,1 mm | |||
| IP Rating | IP65 (full) | |||
| Vibration | Reference Standard | MIL-STD-810G Method 514.6 Procedure I | ||
| Shock | Reference Standard | MIL-STD-810G Method 516.6 Procedure I | ||
| Drop | Reference Standard | MIL-STD-810G Method 516.6 Procedure IV | ||
| Drop height | 1,2 m | |||
| Weight | 2500 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Wi-Fi | 1 Pce | |||
| Cellular Network | 1 Pce | |||
| Coating | Coating | Yes | ||
| Material | Anti-Glare Glas | |||
| Material | Magnesium | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Supported OS | Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | SOTI MobiControl Compliance | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
