Rugged Tablets
// 11.6" TFT LCD
// Intel N150
// Touchscreen (Capacitive)
// IP65 (full)
// SoC (System on a Chip)
// 4 GB
// 128 GB SSD (NVMe)
// 2 x USB (Back side)
// Power Supply DC 19V
// 20V
Sales only to business customers.
Delivery time: upon request

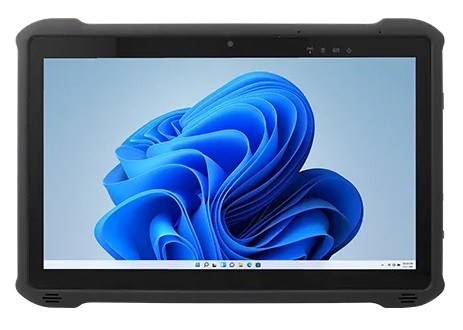

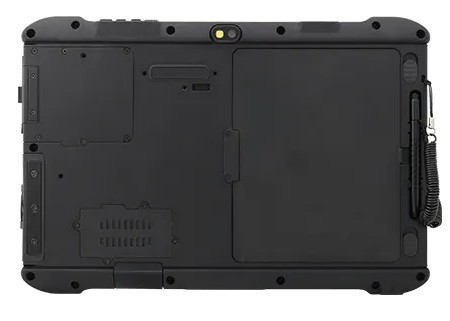

Basic Module: Winmate M116AN
| General information | ||||
| SKU / Item Number | M116AN | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Vertical Segment | Mobile | ||
| Series | Intel Twin Lake | |||
| Number | Intel N150 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,6 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Maximum expansion | 8 GB | |||
| Internal memory | 4 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 128 GB | ||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Display | ||||
| Display Typ | 11.6" TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Contrast | 1000:1 | |||
| Luminance | 850 cd/m² | |||
| Viewing angle | Horizontal | 170 ° | ||
| Vertical | 170 ° | |||
| Backlight | Type | LED | ||
| Touch Screen | Type | Capacitive | ||
| Extension | ||||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | Micro SD (external) | |||
| Network | ||||
| Wireless | Wi-Fi | Protocol | 802.11a/b/g/n/ac | |
| Bluetooth | Type | v5.0 | ||
| Cellular Network | GNSS (Global Navigation Satellite System) | GLONASS, GPS | ||
| Network | Wi-Fi, Bluetooth | |||
| Externe I/O (Rear Panel) | ||||
| Audio | Combo Jack | 1 Pce | ||
| USB | USB 3.0 | 1 Pce | ||
| USB v3.0 (Type C) | 1 Pce | |||
| Sensor | ||||
| 3D sensor | 3D Accelerometer, 3D Gyroscope | |||
| Light Sensor | Yes | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Kensington Lock | Yes | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 19V | |||
| Connector | DC Power Jack | |||
| DC | Wide Range | No | ||
| Range | 20V | |||
| Connector | USB Type-C | |||
| Power supply - Input | DC: 19V, 20V | |||
| Battery | Type | 7.7V typ. 5900 mAh Li-Polymer Battery | ||
| Battery Runtime | Standard | 8 h | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 11.6" | ||
| Width | 300,67 mm | |||
| Deep | 22,5 mm | |||
| Height | 201,97 mm | |||
| IP Rating | IP65 (full) | |||
| Vibration | Reference Standard | MIL-STD-810H Method 514.8 Procedure I | ||
| Shock | Reference Standard | MIL-STD-810H Method 516.8 Procedure I | ||
| Drop | Reference Standard | MIL-STD-810H Method 516.8 | ||
| Drop height | 1,2 m | |||
| Weight | 1400 g | |||
| Camera | Front | Resolution | 2 MP | |
| Rear | Resolution | 8 MP | ||
| Autofocus | Yes | |||
| LED light | Yes | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| RF | 1 Pce | |||
| Battery | 1 Pce | |||
| Docking Connector | 1 x 19 pin docking connector | |||
| Color | Black | |||
| Coating | Coating | Yes | ||
| Material | Anti-Glare Glas | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Supported OS | Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | SOTI MobiControl Compliance | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
