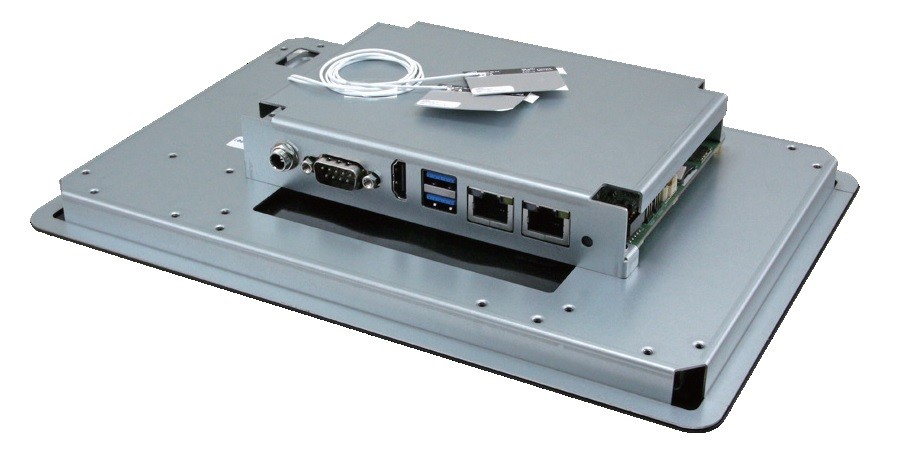

Open Frame Panel PC
// 10.1" TFT LCD Panel-PC
// Rockchip RK3568J
// Touchscreen (Capacitive)
// Passive cooled
// SoC (System on a Chip)
// 4 GB
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// 3 x Seriell I/O
// 64 GB eMMC
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Avalue OFT-10WR3
| General information | ||||
| SKU / Item Number | OFT-10WR3 | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | ARM Cortex-A55 | |||
| Number | Rockchip RK3568J | |||
| CPU cores | 4 Pce | |||
| Base frequency | 1,8 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Internal memory | 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Graphics | ||||
| Screens (Multi-display) | 2 displays | |||
| HDMI | Version | 2.0 | ||
| Display | ||||
| Display Typ | 10.1" TFT LCD | |||
| Max. Resolution | 1280 x 800 | |||
| Aspect Ratio | 8 : 5 | |||
| Luminance | 500 cd/m², 1200 cd/m² | |||
| Viewing angle | Horizontal | 85 ° | ||
| Vertical | 85 ° | |||
| Touch Screen | Type | Capacitive | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Supported dimensions | 3042 | |||
| Slot 2 | Key ID | E | ||
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | Micro SD | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8211FD (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Wireless | Wi-Fi | Protocol | 802.11a/b/g/n/ac | |
| Bluetooth | Type | v5.2 | ||
| Network | 2x G-LAN, Bluetooth, Wi-Fi | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.0 | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 2 Pce | |
| RS-422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LVDS connectors | 1 Pce | ||
| eDP (Embedded DisplayPort) lanes | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Image Capture Interfaces | MIPI-DSI (Display Serial Interface) | 1 Pce | ||
| Audio | Verstärker | 1 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12 to 24V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -30°C to 60°C | ||
| Storage | -30°C to 60°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 10.1" | ||
| Width | 262 mm | |||
| Deep | 40,9 mm | |||
| Height | 178 mm | |||
| Weight | 1100 g | |||
| Controls | Reset | 1 Pce | ||
| Mounting option | Spacer Hole | |||
| OS / Software | ||||
| Linux | Distribution | Debian 11 | ||
| Android | Release | 13 | ||
| Supported OS | Android, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
