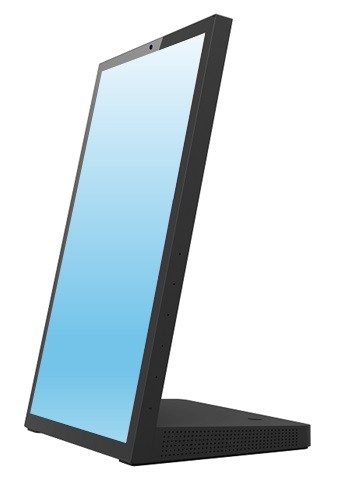

Panel PC for Terminal/POS
// 15.6" TFT LCD Panel-PC
// Rockchip RK3576S
// Touchscreen (Capacitive)
// Passive cooled
// Rockchip RK3576S
// SoC (System on a Chip)
// 4 GB
// 1 x G-LAN (Back side)
// 3 x USB (Back side)
// 64 GB eMMC
// Power Supply DC 12V
Sales only to business customers.
Delivery time: upon request
Basic Module: Avalue RPC-15WL
| General information | ||||
| SKU / Item Number | RPC-15WL | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Series | ARM Cortex-A53 | ||
| Number | Rockchip RK3576S | |||
| CPU cores | 4 Pce | |||
| Processor 2 | Series | ARM Cortex-A72 | ||
| Number | Rockchip RK3576S | |||
| CPU cores | 4 Pce | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Internal memory | 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Graphics | ||||
| Processor | ARM Mali-G52 MP6 | |||
| Display | ||||
| Display Typ | 15.6" TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Contrast | 1000:1 | |||
| Luminance | 250 cd/m² | |||
| Viewing angle | Horizontal | 170 ° | ||
| Vertical | 170 ° | |||
| Backlight | Type | LED | ||
| Touch Screen | Type | Capacitive | ||
| Interface | USB | |||
| Multitouch | 10-point | |||
| Extension | ||||
| Storage | Micro SD (external) | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI In | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 2.0 | 1 Pce | ||
| USB 3.0 | 1 Pce | |||
| USB v3.0 (Type C) | 1 Pce | |||
| Safety | ||||
| Kensington Lock | Yes | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 20 to 80%, non-condensing | ||
| Dimensions | Form factor | 15.6" | ||
| Width | 365 mm | |||
| Deep | 220 mm | |||
| Height | 173,9 mm | |||
| Controls | Power | 1 Pce | ||
| Color | Black | |||
| OS / Software | ||||
| Android | Release | 15.10 | ||
| Supported OS | Android | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
