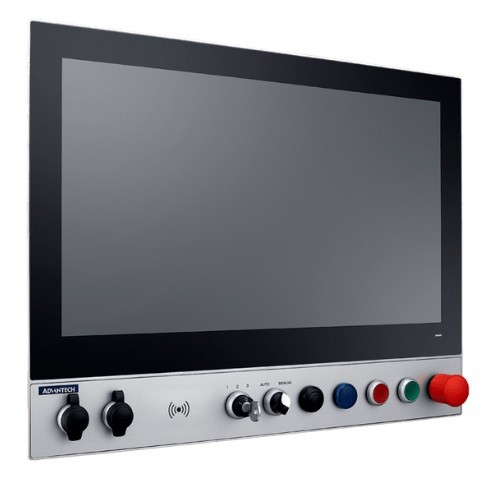

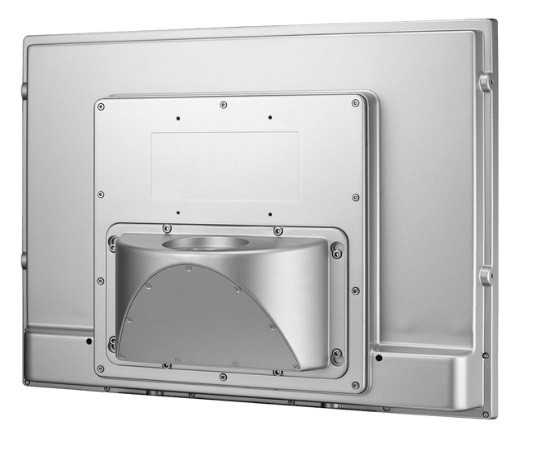

Panel PC with Full IP65 Protection
// 21.5" TFT LCD Panel-PC
// [Intel Core i3-1315URE | Intel Core i5-1345URE]
// Touchscreen (Capacitive)
// Passive cooled
// IP65 (full)
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// Power Supply DC 9 to 32 volts
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech SPC-821 V2
| General information | ||||
| SKU / Item Number | SPC-821 V2 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | Intel Raptor Lake | ||
| Number | Intel Core i3-1315URE, Intel Core i5-1345URE | |||
| CPU cores | 6 Pce, 10 Pce | |||
| Threads | 8 Pce, 12 Pce | |||
| Socket | BGA 1744 | |||
| Base frequency | 1,2 GHz, 1,4 GHz | |||
| Performance Core Max Turbo Frequency | 4,5 GHz, 4,6 GHz | |||
| Efficient-core Max Turbo Frequency | 3,3 GHz, 3,4 GHz | |||
| Cache | 10 MB, 12 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 55 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| Internal memory | 8 GB | |||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics, Intel UHD Graphics | |||
| HDMI | Version | 1.4 | ||
| DisplayPort | Version | 1.4A | ||
| Display | ||||
| Display Typ | 21.5" TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Max. Colors | 16.7 million | |||
| Luminance | 250 cd/m² | |||
| Viewing angle | Horizontal | 178 ° | ||
| Vertical | 178 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 50000 h | |||
| Touch Screen | Type | Capacitive | ||
| Light Transmission | 88 % | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4, SATA III | |||
| Supported dimensions | 2242, 2280 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 1 Pce | ||
| USB 3.2 (Gen 1) | 3 Pce | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 32 volts | |||
| Power supply - Input | DC: 9~32V | |||
| Typical power consumption | 80 W | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 55°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 21.5-inch | ||
| Width | 545,24 mm | |||
| Deep | 185 mm | |||
| Height | 415,59 mm | |||
| IP Rating | IP65 (full) | |||
| Weight | 8500 g | |||
| Color | Black / silver | |||
| Material | Aluminum | |||
| Mounting option | VESA | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Supported OS | Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class A | Yes | ||
| CCC | Yes | |||
| RoHS compliant | Yes | |||
