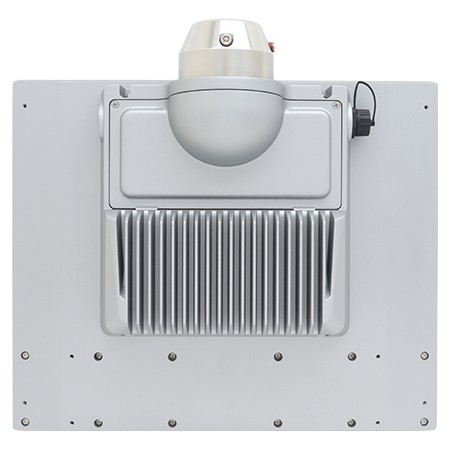

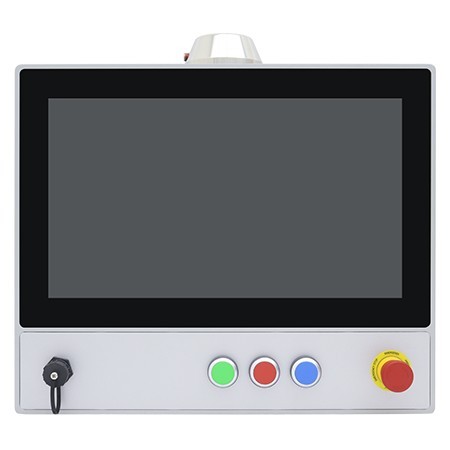

Panel PC with Full IP65 Protection
// 15.6" TFT LCD Panel-PC
// Intel Core i3-1215U
// Touchscreen (Capacitive)
// IP65 (full)
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// 128 GB SSD (NVMe)
// 2 x G-LAN (Back side)
// 1 x USB (Front page)
// 5 x USB (Back side)
// 4 x USB (internal)
// Power Supply DC 9 to 36V
Sales only to business customers.
Delivery time: upon request

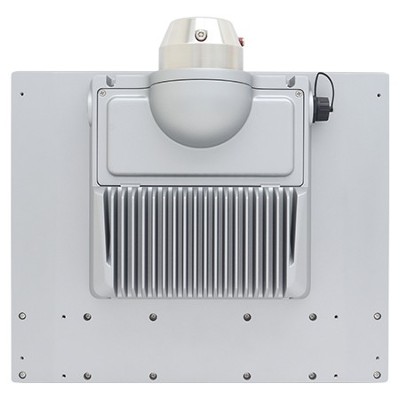

Basic Module: Aplex ABOS-916DP
| General information | ||||
| SKU / Item Number | ABOS-916DP | |||
| Product Basic Data | ||||
| Manufacturer | Aplex | |||
| System | ||||
| Processor | Series | Intel Alder Lake | ||
| Number | Intel Core i3-1215U | |||
| CPU cores | 6 Pce | |||
| Threads | 8 Pce | |||
| Socket | BGA 1744 | |||
| Performance Core Max Turbo Frequency | 4,4 GHz | |||
| Efficient-core Max Turbo Frequency | 3,2 GHz | |||
| Cache | 10 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 55 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 3200 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 128 GB | ||
| BIOS | AMI BIOS | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| HDMI | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Display | ||||
| Display Typ | 15.6" TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Max. Colors | 16.7 million | |||
| Contrast | 1000:1 | |||
| Luminance | 500 cd/m² | |||
| Viewing angle | Horizontal | 178 ° | ||
| Vertical | 178 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 50000 h | |||
| Touch Screen | Type | Capacitive | ||
| Light Transmission | 90 % | |||
| Interface | USB | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen. 3) | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Front Panel) | ||||
| USB | USB v2.0 (M12) | 1 Pce | ||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 mit Power (Pin 9 +5 V/+12 V) | 1 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB v2.0 (M12) | 1 Pce | |||
| USB 3.2 (Gen 1) | 2 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 4 Pce | |
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 3-pin terminal connector | |||
| Power supply - Input | DC: 9~36V | |||
| Typical power consumption | 47,93 W | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 15.6" | ||
| Width | 409,9 mm | |||
| Deep | 130 mm | |||
| Height | 341,1 mm | |||
| IP Rating | IP65 (full) | |||
| Vibration | Reference Standard | IEC 68-2-64 | ||
| with SSD | 5~500 Hz, 1G | |||
| Shock | Measurement Data | 15G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 16500 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Power | 1 Pce | ||
| Color | Silver | |||
| Material | Aluminum | |||
| Mounting option | Arm Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Ubuntu 24.04 | ||
| Supported OS | Windows Embedded, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | UKCA | |||
| RoHS compliant | Yes | |||
