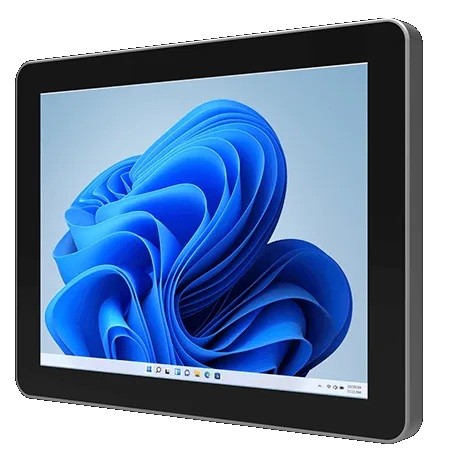

Panel PC with Full IP65 Protection
// 10.4" TFT LCD Panel-PC
// Intel N150
// Touchscreen (Capacitive)
// Passive cooled
// IP65 (full)
// SoC (System on a Chip)
// 8 GB
// 128 GB SSD
// 1 x G-LAN (Back side)
// 1 x USB (Back side)
// Power Supply DC 9 to 36V
Sales only to business customers.
Delivery time: upon request
Basic Module: Winmate R10IAN3S-GST2
| General information | ||||
| SKU / Item Number | R10IAN3S-GST2 | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Series | Intel Twin Lake | ||
| Number | Intel N150 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,6 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Maximum expansion | 16 GB | ||
| Internal memory | 8 GB | |||
| Storage | Solid State Drive (SSD) | 128 GB | ||
| Power supply - Input | Solid State Drive (SSD) 128 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Display | ||||
| Display Typ | 10.4" TFT LCD | |||
| Max. Resolution | 1024 x 768 | |||
| Aspect Ratio | 4 : 3 | |||
| Contrast | 1000:1 | |||
| Luminance | 1000 cd/m² | |||
| Viewing angle | Horizontal | 176 ° | ||
| Vertical | 176 ° | |||
| Backlight | Type | LED | ||
| Touch Screen | Type | Capacitive | ||
| Network | ||||
| G-LAN | Controller | Quantity | 1 Pce | |
| Network | 1x G-LAN | |||

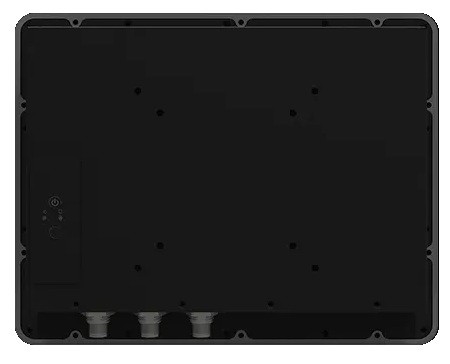

| Externe I/O (Rear Panel) | ||||
| Ethernet | M12 connectors | 1 Pce | ||
| Serial | RS-232 / 422 / 485 | M12 connectors | 1 Pce | |
| USB | USB v2.0 (M12) | 1 Pce | ||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | M12 | |||
| Power supply - Input | DC: 9~36V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -15°C to 55°C | ||
| Storage | -30°C to 60°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | 10.4" | ||
| Width | 252,41 mm | |||
| Deep | 43 mm | |||
| Height | 197,8 mm | |||
| IP Rating | IP65 (full) | |||
| Vibration | Vibration | 2G, 5 to 500 Hz | ||
| Shock | Measurement Data | 30G, 18 ms | ||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Color | Black / silver | |||
| Material | Steel | |||
| Mounting option | Panel Mounting, VESA | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Ubuntu 24.04 | ||
| Supported OS | Windows, Windows Embedded, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
