Panel PC with IP65 (All Sides)
// 21.5" TFT LCD Panel-PC
// Rockchip RK3568
// Touchscreen (Capacitive)
// Passive cooled
// IP65 (5-sided)
// SoC (System on a Chip)
// 2 GB
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// 32 GB eMMC
// Power Supply DC 12 to 24V
Sales only to business customers.
Delivery time: upon request
Basic Module: Avalue SPC-21WR2
| General information | ||||
| SKU / Item Number | SPC-21WR2 | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| Product ID | SPC-21WR2-6803-A1R | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | ARM Cortex-A55 | |||
| Number | Rockchip RK3568 | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 2 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Internal memory | 2 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 32 GB | |||
| Display | ||||
| Display Typ | 21.5" TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Contrast | 3000:1 | |||
| Luminance | 250 cd/m² | |||
| Response Time | 10 ms | |||
| Viewing angle | Horizontal | 178 ° | ||
| Vertical | 178 ° | |||
| Backlight | Type | LED | ||
| Touch Screen | Type | Capacitive | ||
| Light Transmission | 85 % | |||
| Interface | USB | |||
| Multitouch | 10-point | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 3.0 | 2 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12 to 24V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 21.5-inch | ||
| Width | 541,6 mm | |||
| Deep | 47 mm | |||
| Height | 348,6 mm | |||
| IP Rating | IP65 (5-sided) | |||
| Vibration | Vibration | 1.5G, 5-500Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 10G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| Drop | Reference Standard | ISTA-2A | ||
| Weight | 8200 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Antenna holes | 2 Pce | |||
| Color | Silver | |||
| Material | Stainless Steel | |||

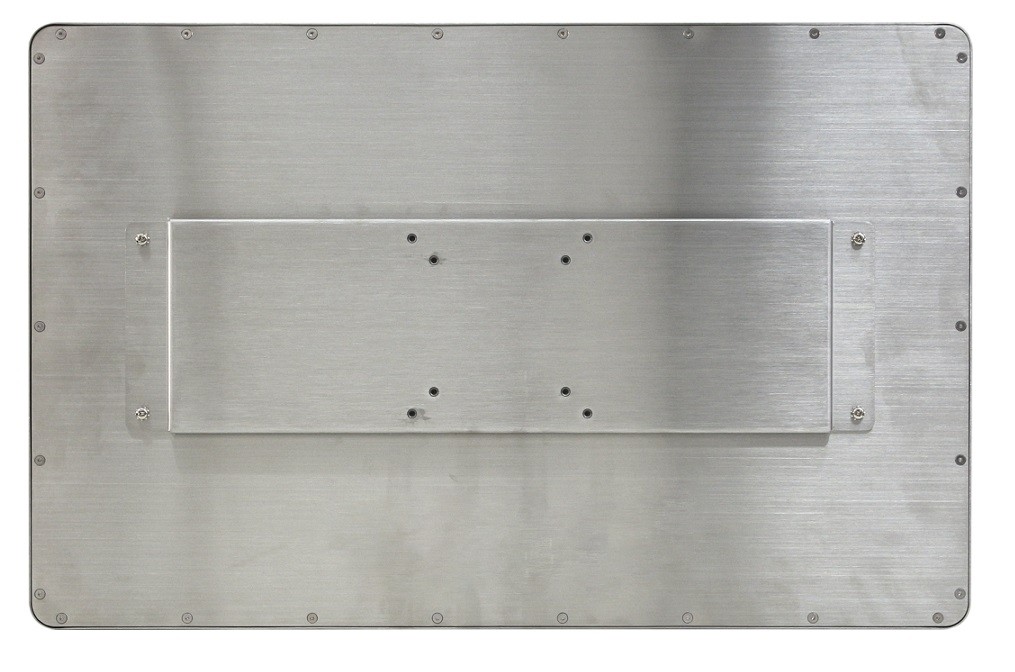

| Mounting option | VESA, Wall Mount | |||
| OS / Software | ||||
| Linux | Distribution | Debian 11 | ||
| Android | Release | 11 | ||
| Supported OS | Linux, Android | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
