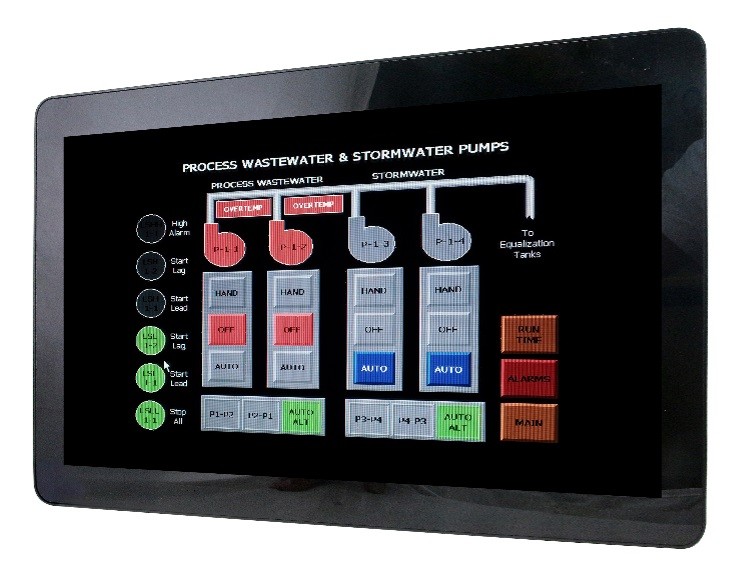

Panel PC with IP65 (Front Side)
// 18.5" TFT LCD Panel-PC
// [Intel Core i3 Processor 100UL | Intel Core i5 Processor 120UL | Intel Core i7-160UL Processor]
// Touchscreen (Capacitive)
// Passive cooled
// IP65 (front) / IP41 (back)
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 5 x USB (Back side)
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Avalue ARC-18W42
| General information | ||||
| SKU / Item Number | ARC-18W42 | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Raptor Lake | |||
| Number | Intel Core i3 Processor 100UL, Intel Core i5 Processor 120UL, Intel Core i7-160UL Processor | |||
| CPU cores | 6 Pce, 10 Pce | |||
| Threads | 8 Pce, 12 Pce | |||
| Socket | LGA 1700 (H6) | |||
| Performance Core Max Turbo Frequency | 4,5 GHz, 4,6 GHz, 5,2 GHz | |||
| Efficient-core Max Turbo Frequency | 3,3 GHz, 3,4 GHz, 3,9 GHz | |||
| Cache | 10 MB, 12 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 55 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 32 GB | |||
| I/O controller | Controller 1 | I/O controller | ITE IT8528E / FX | |
| Graphics | ||||
| Processor | Intel Graphics | |||
| Display | ||||
| Display Typ | 18.5" TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Contrast | 1200:1 | |||
| Luminance | 500 cd/m² | |||
| Response Time | 35 ms | |||
| Viewing angle | Horizontal | 170 ° | ||
| Vertical | 170 ° | |||
| Backlight | Type | LED | ||
| Touch Screen | Type | Capacitive | ||
| Light Transmission | 85 % | |||
| Interface | USB | |||
| Multitouch | 10-point | |||
| Audio | Speaker | 2 Pce | ||
| Watt | 2 W | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen 3), SATA III, USB 3.0 | |||
| Supported dimensions | 2280, 3042, 3052 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0, Wi-Fi | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | M | ||
| Interface | PCIe ×4 | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I225LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

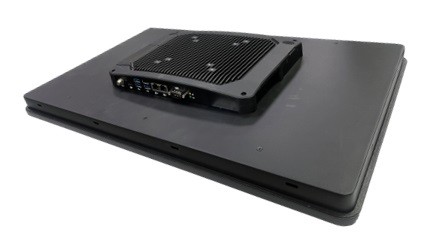

| Externe I/O (Rear Panel) | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 2.0 | 1 Pce | ||
| USB v3.0 (Type C) | 1 Pce | |||
| USB 3.2 (Gen 1) | 3 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Nuvoton NPCT754AABYX | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12 to 24V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10°C to 50°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 18.5" | ||
| Width | 460 mm | |||
| Deep | 59 mm | |||
| Height | 285,2 mm | |||
| IP Rating | IP65 (front) / IP41 (back) | |||
| Vibration | Vibration | 2G, 5 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 20G, 11 ms | ||
| Reference Standard | MIL-STD-810G Method 516.6 Procedure I | |||
| Drop | Reference Standard | ISTA-2A | ||
| Weight | 4600 g | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Antenna holes | 7 Pce | |||
| Color | Black | |||
| Mounting option | Panel Mounting, VESA, Wall Mount | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | VCCI | |||
| RoHS compliant | Yes | |||
