Panel PC with IP65 (Front Side)
// 7" TFT LCD Panel-PC
// Rockchip RK3568
// Touchscreen (Capacitive)
// Passive cooled
// IP65 (front)
// SoC (System on a Chip)
// 2 GB
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// 32 GB eMMC
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Avalue CCD-07WR2
| General information | ||||
| SKU / Item Number | CCD-07WR2 | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Series | ARM Cortex-A55 | ||
| Number | Rockchip RK3568 | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 2 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Internal memory | 2 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 32 GB | |||
| Graphics | ||||
| Processor | ARM Mali-G52 MP6 | |||
| HDMI | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Display | ||||
| Display Typ | 7" TFT LCD | |||
| Max. Resolution | 1024 x 600 | |||
| Aspect Ratio | 128 : 75 | |||
| Contrast | 700:1 | |||
| Luminance | 300 cd/m² | |||
| Response Time | 25 ms | |||
| Viewing angle | Horizontal | 160 ° | ||
| Vertical | 160 ° | |||
| Backlight | Type | LED | ||
| Touch Screen | Type | Capacitive | ||
| Light Transmission | 86 % | |||
| Interface | USB | |||
| Multitouch | 10-point | |||
| Audio | Speaker | 1 Pce | ||
| Watt | 2 W | |||
| Display Audio - Microphone | 1 Pce | |||
| Network | ||||
| Wireless | Wi-Fi | Protocol | 802.11a/b/g/n/ac | |
| Bluetooth | Type | v5.0 | ||
| Network | Bluetooth, Wi-Fi | |||

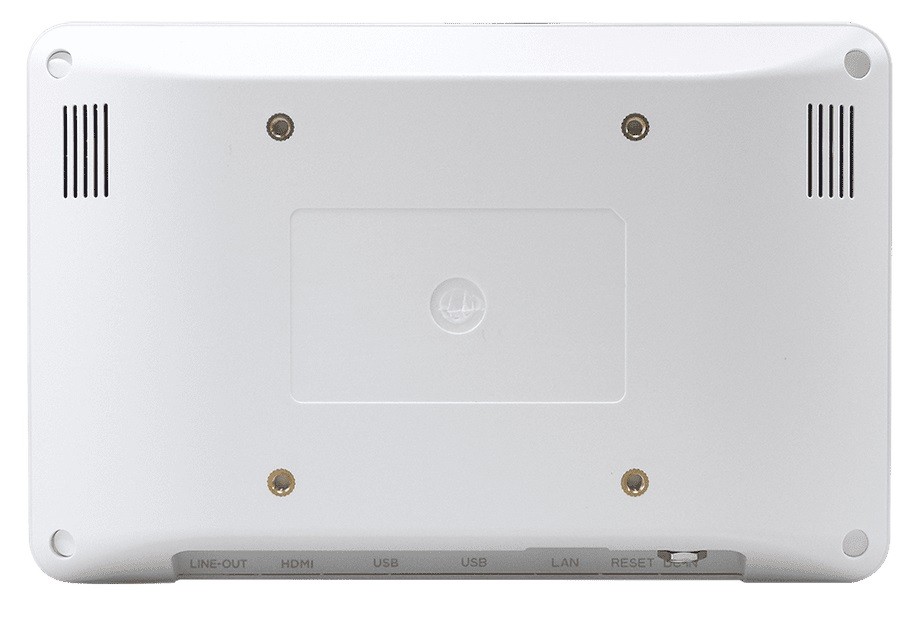

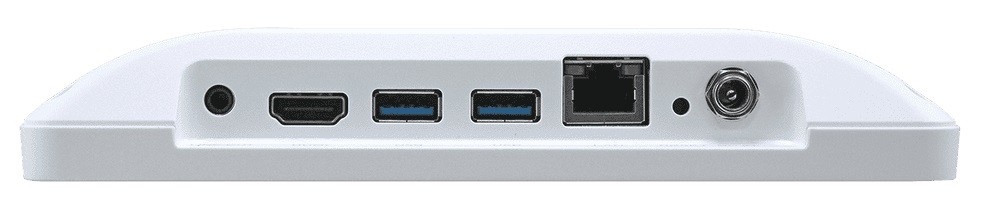

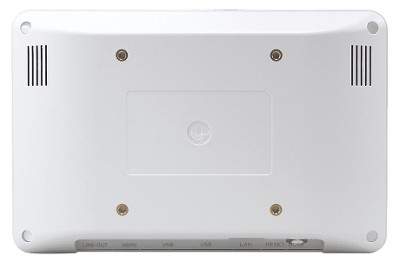

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 3.0 | 2 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12 to 24V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 7" | ||
| Width | 191 mm | |||
| Deep | 30 mm | |||
| Height | 124 mm | |||
| IP Rating | IP65 (front) | |||
| Weight | 600 g | |||
| Camera | Front | Resolution | 2 MP | |
| Controls | Reset | 1 Pce | ||
| Color | White | |||
| Material | plastic | |||
| Mounting option | VESA | |||
| OS / Software | ||||
| Linux | Distribution | Debian 11 | ||
| Android | Release | 11, - | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
