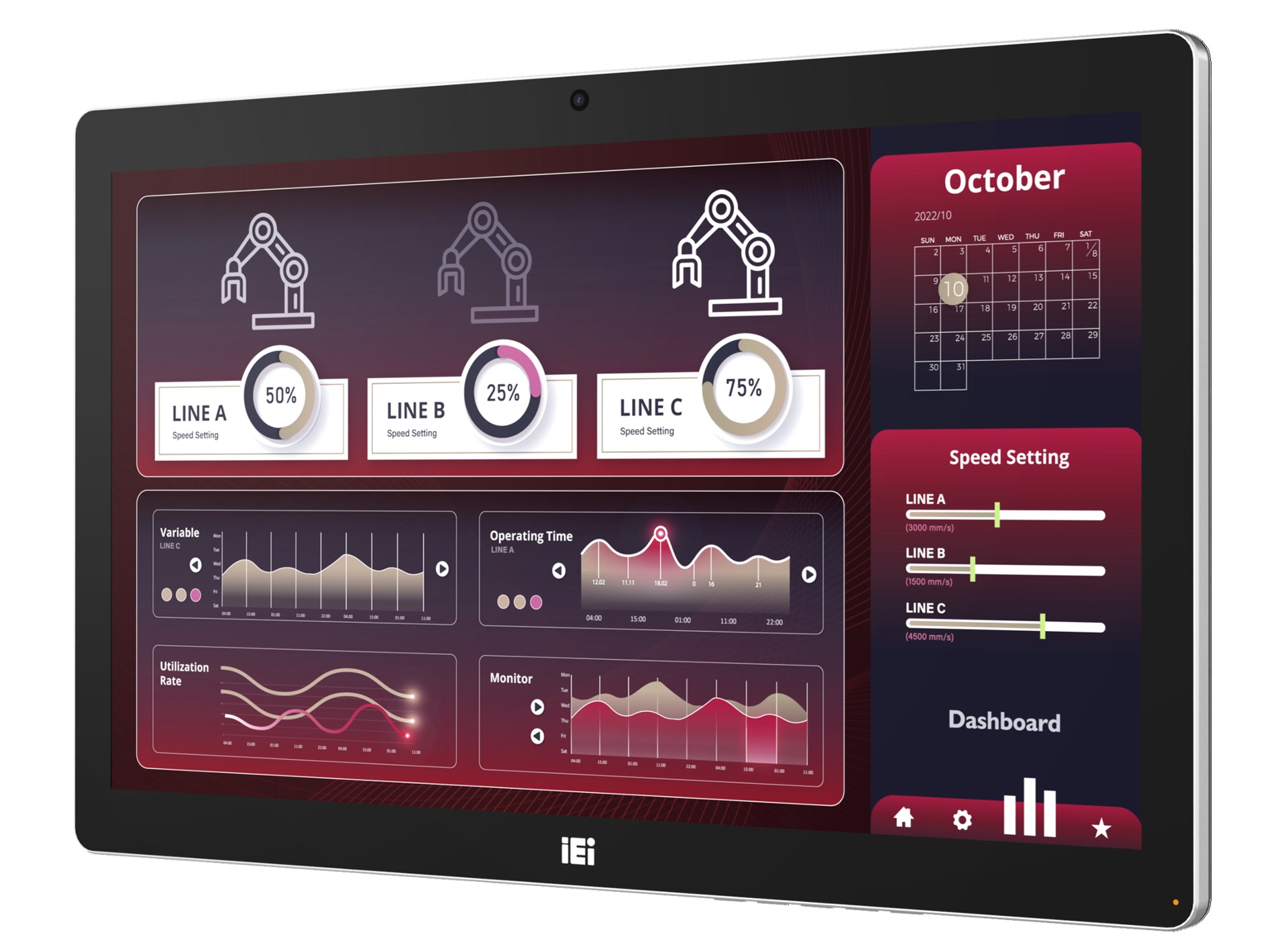

Panel PC with IP65 (Front Side)
// 21.5" TFT LCD Panel-PC
// [Intel Core Ultra 5 Processor 125U | Intel Core Ultra 7 Processor 155U]
// Touchscreen (Capacitive)
// IP65 (front)
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 6 x USB (Back side)
// Power Supply DC 10 to 28V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: IEI AURA-W215-MTL
| General information | ||||
| SKU / Item Number | AURA-W215-MTL | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| System | ||||
| Processor | Series | Intel Meteor Lake | ||
| Number | Intel Core Ultra 5 Processor 125U, Intel Core Ultra 7 Processor 155U | |||
| CPU cores | 12 Pce | |||
| Threads | 14 Pce | |||
| Socket | BGA 2049 | |||
| Performance core base clock frequency | 1,3 GHz, 1,7 GHz | |||
| Performance Core Max Turbo Frequency | 4,3 GHz, 4,8 GHz | |||
| Efficient-core base clock frequency | 0,8 GHz, 1,2 GHz | |||
| Efficient-core Max Turbo Frequency | 3,6 GHz, 3,8 GHz | |||
| Cache | 12 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 57 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 96 GB | |||
| Internal memory | 16 GB | |||
| Graphics | ||||
| Processor | Intel Graphics | |||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| Version | 1.4 | |||
| Display | ||||
| Display Typ | 21.5" TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Max. Colors | 16.7 million | |||
| Contrast | 1000:1 | |||
| Luminance | 350 cd/m² | |||
| Viewing angle | Horizontal | 178 ° | ||
| Vertical | 178 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 50000 h | |||
| Touch Screen | Type | Capacitive | ||
| Interface | USB | |||
| Audio | Speaker | 2 Pce | ||
| Watt | 2 W | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen 3), USB 2.0, USB 3.2 Gen 1 | |||
| Supported dimensions | 3042, 3052 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

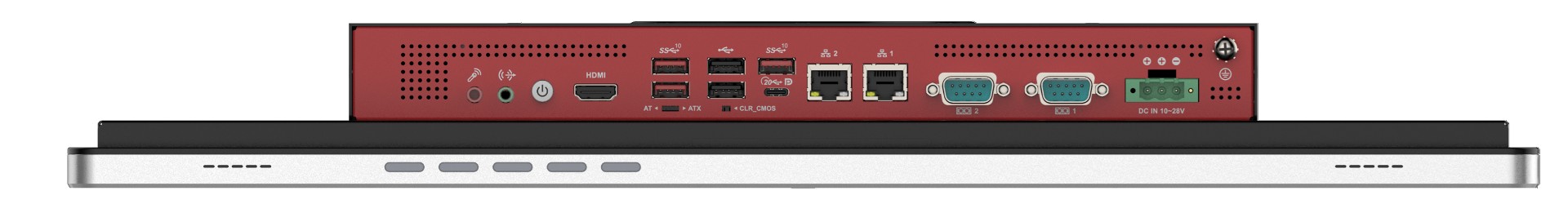

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP USB-C | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 2) | 3 Pce | |||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Safety | ||||
| Trusted Platform Module (TPM) | Intel PTT (wie TPM 2.0) und TPM header | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 10 to 28V | |||
| Connector | 3-pin terminal connector | |||
| Power supply - Input | DC: 10–28V | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 21.5-inch | ||
| Width | 327 mm | |||
| Deep | 519,4 mm | |||
| Height | 58,1 mm | |||
| IP Rating | IP65 (front) | |||
| Vibration | Vibration | 1G, 5 to 500 Hz | ||
| Reference Standard | IEC 68-2-6 | |||
| Shock | Measurement Data | 15G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| with SSD | 5G | |||
| Weight | 6530 g | |||
| Camera | Front | Resolution | 1 MP | |
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | System Status | 1 Pce | ||
| Antenna holes | 4 Pce | |||
| Color | Black | |||
| Coating | Coating | Yes | ||
| Material | Anti-Glare Glas | |||
| Material | Aluminum, Steel | |||
| Mounting option | Panel Mounting, Rackmount, VESA | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
