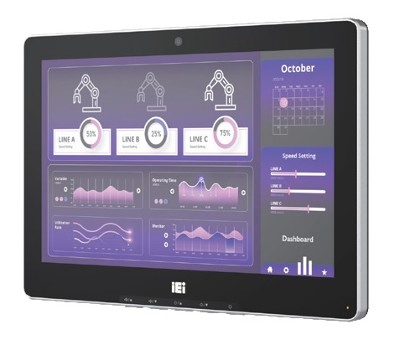

Panel PC with IP65 (Front Side)
// 23.8" TFT LCD Panel-PC
// Rockchip RK3576
// Touchscreen (Capacitive)
// IP65 (front)
// Rockchip RK3576
// SoC (System on a Chip)
// 8 GB
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 64 GB eMMC
// Power Supply DC 10 to 28V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: IEI AURA-W238-RK3576
| General information | ||||
| SKU / Item Number | AURA-W238-RK3576 | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| System | ||||
| Processor | Series | ARM Cortex-A72 | ||
| Number | Rockchip RK3576 | |||
| CPU cores | 4 Pce | |||
| Processor 2 | Series | ARM Cortex-A53 | ||
| Number | Rockchip RK3576 | |||
| CPU cores | 4 Pce | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| Maximum expansion | 16 GB | |||
| Internal memory | 8 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| eMMC version | 5.1 | |||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Display | ||||
| Display Typ | 23.8" TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Max. Colors | 16.7 million | |||
| Contrast | 1000:1 | |||
| Luminance | 350 cd/m² | |||
| Viewing angle | Horizontal | 178 ° | ||
| Vertical | 178 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 30000 h | |||
| Touch Screen | Type | Capacitive | ||
| Interface | USB | |||
| Audio | Speaker | 2 Pce | ||
| Watt | 2 W | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, PCIe ×1 (Gen. 2), USB 2.0 | |||
| Supported dimensions | 3042, 3052, 3080 | |||
| M.2 Key IDs | B | |||
| Storage | Micro SD | |||

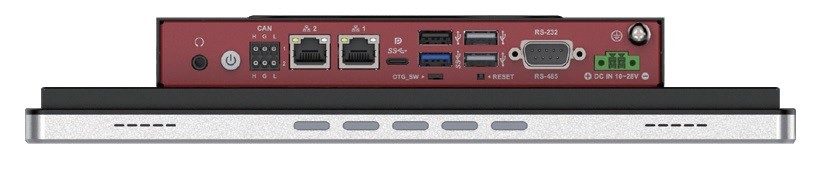

| Externe I/O (Rear Panel) | ||||
| Display | DP USB-C | 1 Pce | ||
| Audio | Combo Jack | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-422 / 485 | DB-9 | 1 Pce | |
| USB | USB 2.0 | 3 Pce | ||
| USB 3.2 (Gen 1) | 1 Pce | |||
| CAN bus | Connector | 2 x 3-pin connectors | ||
| piece | 1 Pce | |||
| Protocol | CAN 2.0B | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 10 to 28V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 10–28V | |||
| Typical power consumption | 25 W | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | 23.8" | ||
| Width | 571,4 mm | |||
| Deep | 51,2 mm | |||
| Height | 354,5 mm | |||
| IP Rating | IP65 (front) | |||
| Vibration | Reference Standard | MIL-STD-810H Method 514.8 Procedure I | ||
| Shock | Measurement Data | 5G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 6650 g | |||
| Camera | Front | Resolution | 1 MP | |
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Power | 1 Pce | ||
| Antenna holes | 4 Pce | |||
| Color | Black | |||
| Material | Aluminum, Steel | |||
| Mounting option | Panel Mounting, Rackmount, VESA | |||
| OS / Software | ||||
| Linux | Distribution | Debian 12 | ||
| Android | Release | 14, - | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
