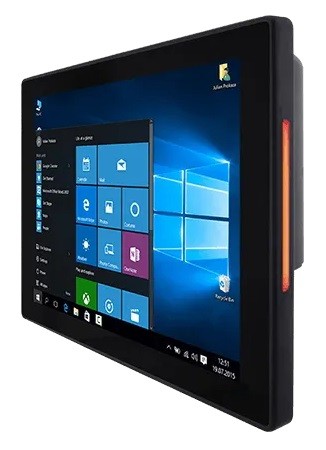

Panel PC with IP65 (Front Side)
// 12.1" TFT LCD Panel-PC
// Intel Pentium N4200
// Touchscreen (Capacitive)
// Passive cooled
// IP65 (front)
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// 128 GB SSD (M.2)
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// Power Supply DC 12V
Sales only to business customers.
Delivery time: upon request

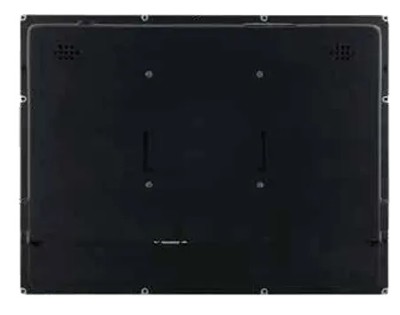

Basic Module: Winmate R12IP3S-PCM2AC-POE
| General information | ||||
| SKU / Item Number | R12IP3S-PCM2AC-POE | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Series | Intel Apollo Lake | ||
| Number | Intel Pentium N4200 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,1 GHz | |||
| Max Turbo Frequency | 2,5 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Memory Type | DDR3 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 1866 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 8 GB | |||
| Internal memory | 4 GB | |||
| Storage | Solid State Drive (M.2) | 128 GB | ||
| Power supply - Input | Solid State Drive (M.2) 128 GB | |||
| Graphics | ||||
| Processor | Intel HD Graphics 505 | |||
| Display | ||||
| Display Typ | 12.1" TFT LCD | |||
| Max. Resolution | 1024 x 768 | |||
| Aspect Ratio | 4 : 3 | |||
| Contrast | 1000:1 | |||
| Luminance | 500 cd/m² | |||
| Viewing angle | Horizontal | 178 ° | ||
| Vertical | 178 ° | |||
| Touch Screen | Type | Capacitive | ||
| Audio | Speaker | 2 Pce | ||
| Watt | 1 W | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | SATA III | |||
| Supported dimensions | 2242 | |||
| Slot 2 | Key ID | E | ||
| Interface | Wi-Fi | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Ethernet | RJ-45 | 1 Pce | ||
| RJ-45 with PoE | 1 Pce | |||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 2) | 2 Pce | ||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 3-pin terminal connector | |||
| PoE (Power over Ethernet) | Connectors | 1 Pce | ||
| Protocol | IEEE 802.3at / 25.5W | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -10° to 60°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 12.1" | ||
| Width | 296 mm | |||
| Deep | 46 mm | |||
| Height | 227 mm | |||
| IP Rating | IP65 (front) | |||
| Weight | 3000 g | |||
| Color | Black | |||
| Material | Steel | |||
| Mounting option | VESA, Wall Mount | |||
| Accessoires | Builtin RGB LED Status Light Bar, on both sides | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | is supported | ||
| Linux | Distribution | Ubuntu 20.04 | ||
| Supported OS | Windows Embedded, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
