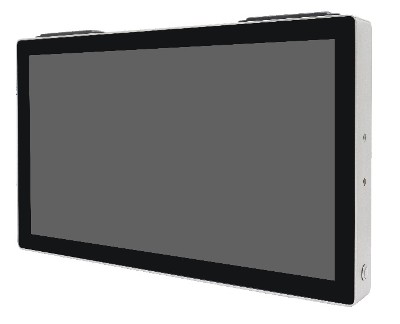

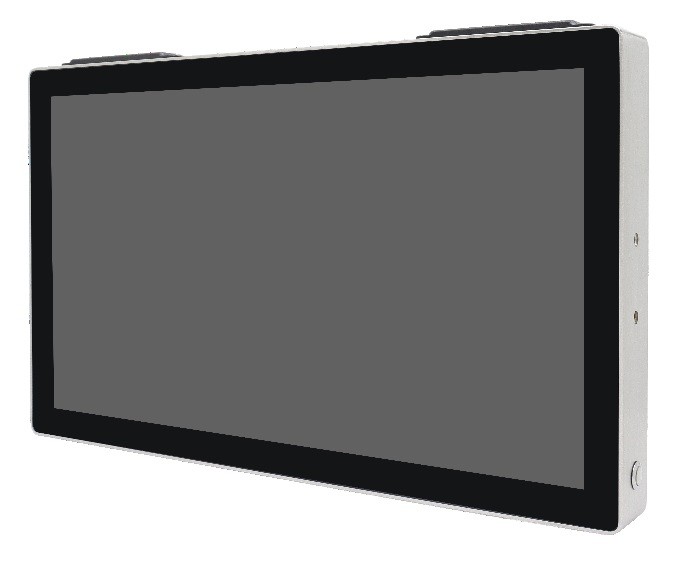

Panel PC with IP66/69K (Complete)
// 15" TFT LCD Panel-PC
// Intel N97
// Touchscreen (Capacitive)
// Passive cooled
// IP66/IP69K (full)
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 128 GB SSD (M.2)
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// Power Supply DC 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Aplex NuTAM-815CP(H)
| General information | ||||
| SKU / Item Number | NuTAM-815CP(H) | |||
| Product Basic Data | ||||
| Manufacturer | Aplex | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Alder Lake | |||
| Number | Intel N97 | |||
| CPU cores | 4 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,6 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 12 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 32 GB | |||
| Storage | Solid State Drive (M.2) | 128 GB | ||
| BIOS | AMI UEFI BIOS | |||
| Power supply - Input | Solid State Drive (M.2) 128 GB | |||
| Graphics | ||||
| Processor | Intel Graphics | |||
| Display | ||||
| Display Typ | 15" TFT LCD | |||
| Max. Resolution | 1024 x 768 | |||
| Aspect Ratio | 4 : 3 | |||
| Max. Colors | 16.2M, 16.7 million | |||
| Contrast | 800:1 | |||
| Luminance | 350 cd/m², 1000 cd/m² | |||
| Viewing angle | Horizontal | 170 °, 178 ° | ||
| Vertical | 170 °, 178 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 30000 h, 70000 h | |||
| Touch Screen | Type | Capacitive | ||
| Light Transmission | 90 % | |||
| Interface | USB | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×1 (Gen 3), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0, WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen 3), USB 2.0, USB 3.2 Gen 1 | |||
| Supported dimensions | 2242, 3042, 3052 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||

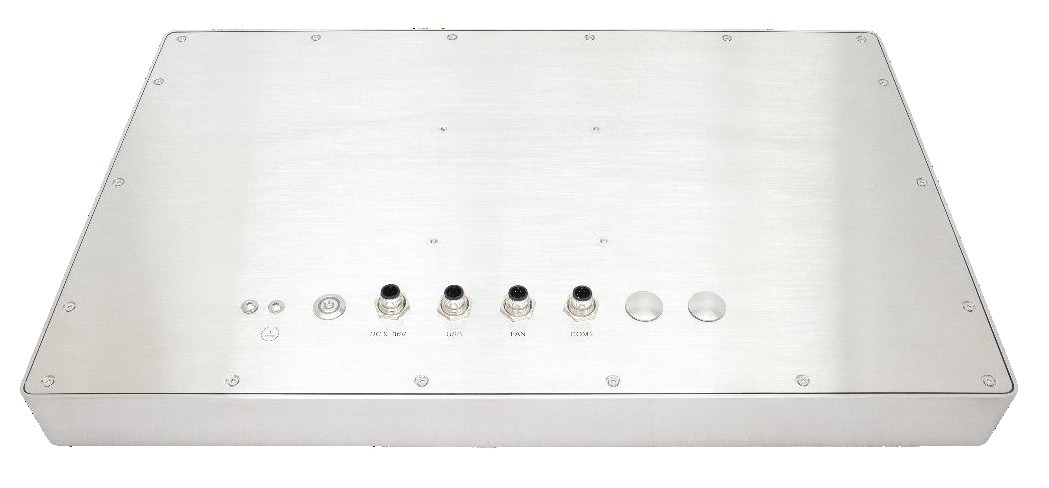

| Externe I/O (Rear Panel) | ||||
| Ethernet | M12 connectors | 1 Pce | ||
| Serial | RS-232 / 422 / 485 | M12 connectors | 1 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| M12 connectors | Yes | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | M12 | |||
| Power supply - Input | DC: 9~36V | |||
| Typical power consumption | 43,96 W | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C, -20° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | 15-inch | ||
| Width | 359,2 mm | |||
| Deep | 49 mm | |||
| Height | 283,2 mm | |||
| IP Rating | IP66/IP69K (full) | |||
| Weight | 6150 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Color | Silver | |||
| Material | Stainless Steel | |||

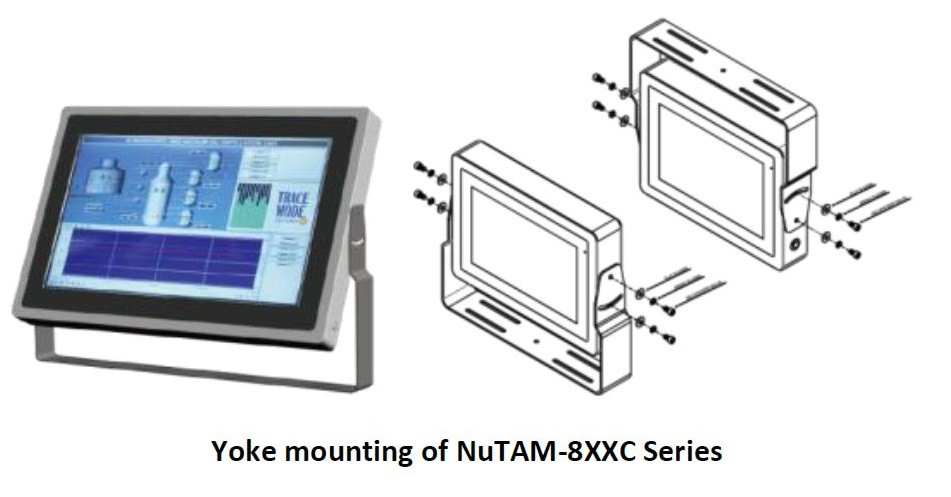

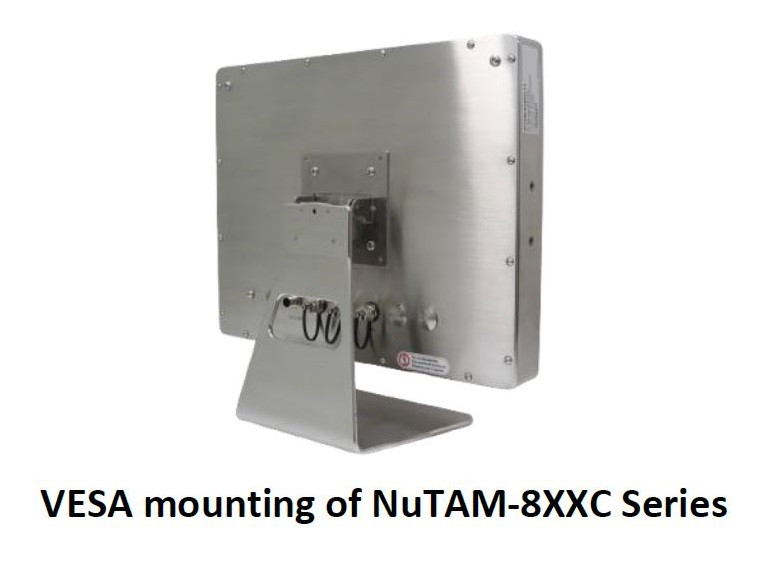

| Mounting option | Lug mount, VESA | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Ubuntu 24.04 | ||
| Supported OS | Linux, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
