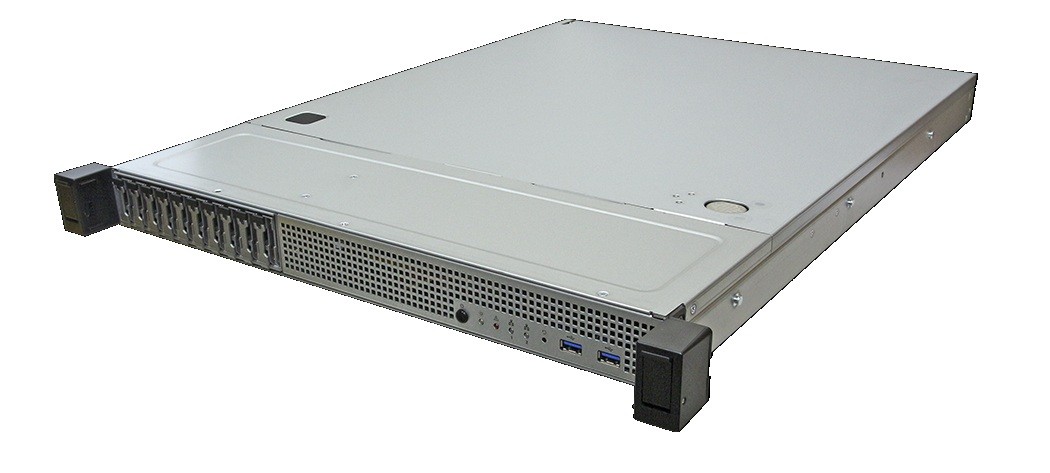

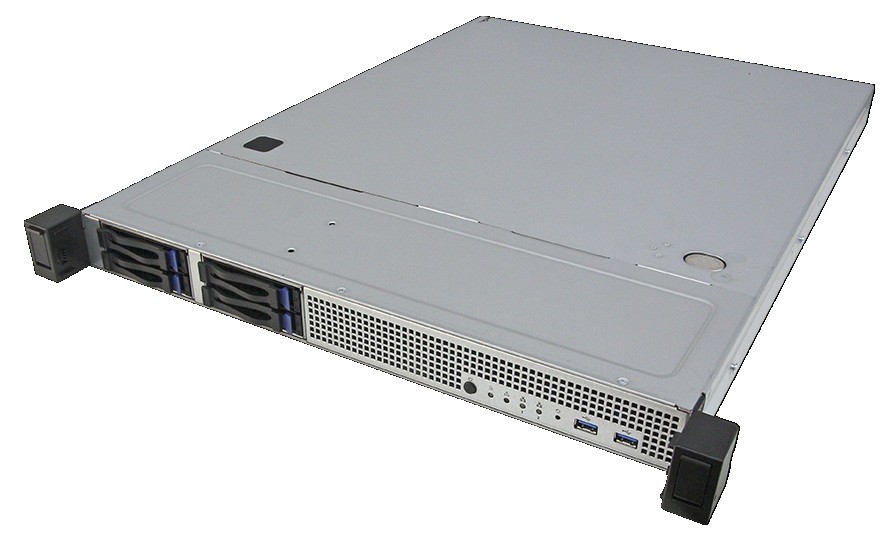

1U Server
// 19-inch
// LGA 4710
// TDP 350 W
// DDR5
// 3 x G-LAN (Back side)
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Avalue HPS-GNRU1A
| General information | ||||
| SKU / Item Number | HPS-GNRU1A | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Vertical Segment | Server | ||
| Socket | LGA 4710 | |||
| Thermal Design Power (TDP) | 350 W | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | Registered DIMM | |||
| DIMM data transfer rate | 6400 MT/s | |||
| Slots | 8 Pce | |||
| Maximum expansion | 2048 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| BIOS | AMI UEFI BIOS | |||
| IPMI (Intelligent Platform Management Interface) | IPMI controller | Aspeed AST2600 BMC | ||
| Version | 2.0 | |||
| Graphics | ||||
| Processor | Aspeed AST2600 BMC | |||
| DisplayPort | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Extension | ||||
| PCIe x8 | Generation | 5 | ||
| x8 signal | 1 Pce | |||
| PCIe x16 | x16 signal | Generation | 5 | |
| Quantity | 2 Pce | |||
| PCIe Interfaces | 1x PCIe x8, 2x PCIe x16 slots | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Supported dimensions | 2242, 2260, 2280, 22110 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Supported dimensions | 2242, 2260, 2280, 22110 | |||
| M.2 Key IDs | M | |||
| Storage | M.2, U.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel E610-XAT2 (2 x 10GbE) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Front Panel) | ||||
| USB | USB 3.2 (Gen 1) | 2 Pce | ||

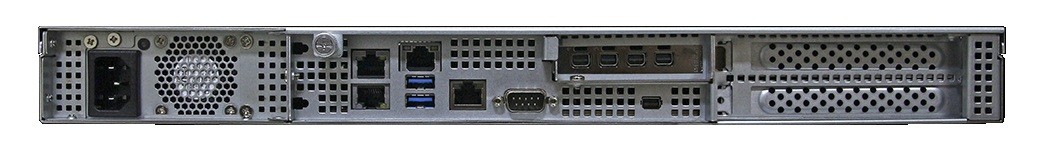

| Externe I/O (Rear Panel) | ||||
| Display | Mini DisplayPort | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| RJ-45 with OOB | 1 Pce | |||
| Serial | RS-232 | DB-9 | 1 Pce | |
| Management Ports | Amount | 1 Pce | ||
| Connenctor | RJ-45 | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | AC | Modules | 1 Pce, 2 Pce | |
| Connector | C14 | |||
| Redundant | -, Yes, dual AC | |||
| Maximum power consumption | 850 W | |||
| Inserts | ||||

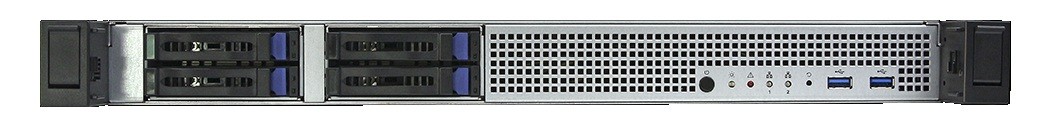

| external | 2.5" installation slot | 4 Pce, - | ||

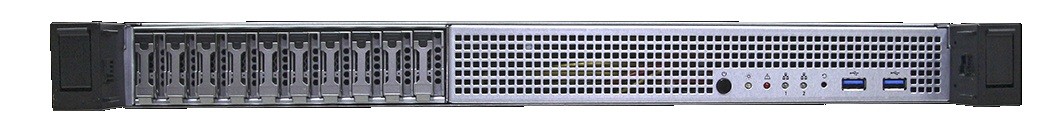

| E1.S | 10 Pce, - | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -40°C to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | 19-inch | ||
| Width | 438 mm | |||
| Deep | 596,9 mm | |||
| Height | 43,5 mm | |||
| Height units | 1 HE | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Power | 1 Pce | ||
| Gigabit Ethernet | 2 Pce | |||
| System Status | 1 Pce | |||
| Slots and Brackets | low profile | 1 Pce | ||
| Standard | 2 Pce | |||
| Color | Silver | |||
| Mounting option | Rackmount | |||
| OS / Software | ||||
| Windows | Windows Server 2025 | is supported | ||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Ubuntu 24.04 | ||
| Supported OS | Linux, Windows, Windows Embedded | |||
