1U Server
// 19-inch
// AMD AM5
// TDP 65 W
// DDR5
// 2 x G-LAN (Back side)
Sales only to business customers.
Delivery time: upon request
Basic Module: DFI RM310-RAP
| General information | ||||
| SKU / Item Number | RM310-RAP | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Series | AMD EPYC 4005/Ryzen 7000/9000 | ||
| Socket | AMD AM5 | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | AMD B650 | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered DIMM | |||
| DIMM data transfer rate | 5200 MT/s | |||
| Slots | 4 Pce | |||
| Maximum expansion | 128 GB | |||
| BIOS | AMI SPI 256 Mbit | |||
| Graphics | ||||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.0 | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| PCIe x16 | x16 signal | Quantity | 1 Pce | |
| PCIe Interfaces | 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Supported dimensions | 2242, 2260, 2280 | |||
| Slot 2 | Key ID | E | ||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888 | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| RAID support | RAID 0/1/5/10 | is supported | ||
| RAID support | RAID 0/1/5/10 | |||

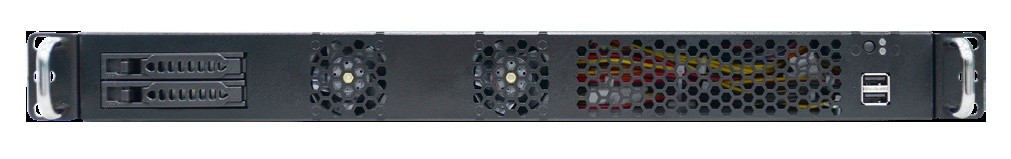

| Externe I/O (Front Panel) | ||||
| USB | USB 2.0 | 2 Pce | ||

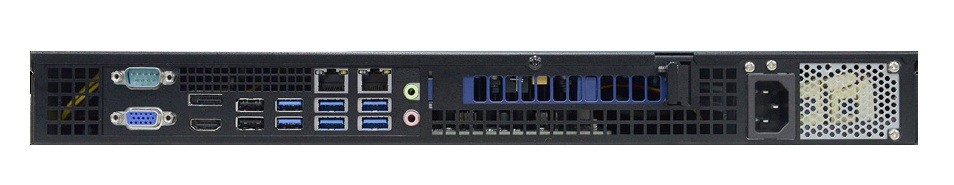

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DP++ | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 1) | 6 Pce | |||
| Inserts | ||||
| external | 2.5" installation slot | 2 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Dimensions | Form factor | 19-inch | ||
| Width | 431,8 mm | |||
| Deep | 385 mm | |||
| Height | 44 mm | |||
| Height units | 1 HE | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Slots and Brackets | Standard | 1 Pce | ||
| Color | Black | |||
| Material | Steel | |||
| Mounting option | Rackmount | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Supported OS | Windows Embedded | |||
