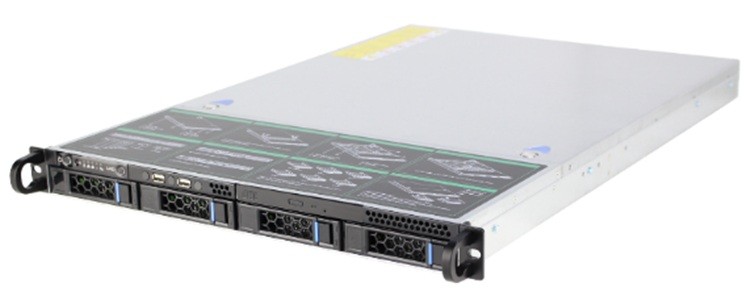

1U Server
// 19-inch
// LGA 1700 (H6)
// TDP 125 W
// DDR4
// 2 x G-LAN (Back side)
Sales only to business customers.
Delivery time: upon request
Basic Module: IEI GAIA-3010I
| General information | ||||
| SKU / Item Number | GAIA-3010I | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| Product ID | GAIA-3010I-R10 | |||
| System | ||||
| Processor | Series | Intel Alder Lake / Raptor Lake | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 125 W | |||
| Chipset | Intel Q670E | |||
| Memory | Structure | 288-pin DDR4 DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered DIMM | |||
| Slots | 4 Pce | |||
| Maximum expansion | 128 GB | |||
| BIOS | AMI UEFI BIOS | |||
| Graphics | ||||
| HDMI | Maximum resolution | 4096 x 2304 at 30 Hz | ||
| Version | 1.4 | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 1.4A | |||
| Extension | ||||
| PCIe x16 | x16 signal | Generation | 4 | |
| Quantity | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen. 3) | |||
| Supported dimensions | 2242, 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | PCIe ×2 (Gen 3) | |||
| Supported dimensions | 2242, 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 4 Pce | ||

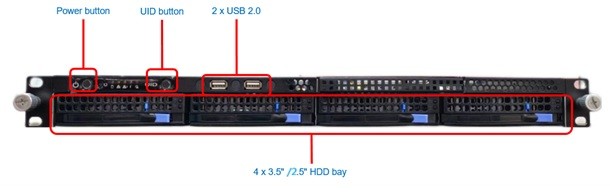

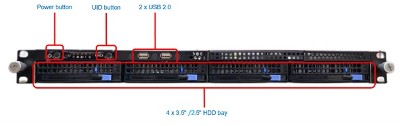

| Externe I/O (Front Panel) | ||||
| USB | USB 2.0 | 2 Pce | ||

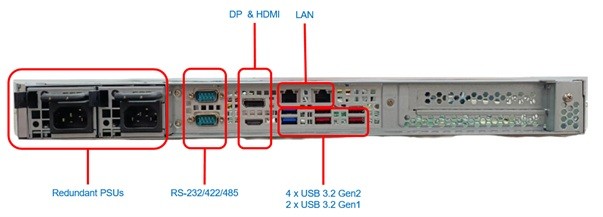

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| USB 3.2 (Gen 2) | 4 Pce | |||
| Power Supply | ||||
| Typ (Input) | AC | Modules | 2 Pce | |
| Connector | C19 | |||
| Redundant | Yes, dual AC | |||
| Maximum power consumption | 600 W | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 4 Pce | |
| Diameter | 40 mm | |||
| height | 28 mm | |||
| Speed | 12000 rpm | |||
| Inserts | ||||
| external | 3.5" Drive Bay | 4 Pce | ||
| 5.25" Slim Drive Bay | 1 Pce | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 19-inch | ||
| Width | 437 mm | |||
| Deep | 561 mm | |||
| Height | 44 mm | |||
| Height units | 1 HE | |||
| Weight | 9000 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Slots and Brackets | Standard | 1 Pce | ||
| Color | Black / silver | |||
| Mounting option | Rackmount | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Windows, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
