2U Server
// 19-inch
// null
// LGA 1700 (H6)
// TDP 25 W
// DDR4
// AC: 100-240V
// 8 x G-LAN
Sales only to business customers.
Delivery time: upon request

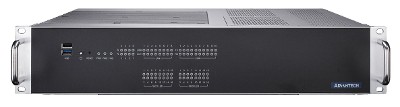

Basic Module: Advantech ECU-4784-V2
| General information | ||||
| SKU / Item Number | ECU-4784-V2 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Product ID | ECU-4784-V2-S1 | |||
| System | ||||
| Processor | Series | Intel Raptor Lake | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 25 W | |||
| Chipset | Intel R680E | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 3200 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| Graphics | ||||
| DisplayPort | Version | 1.2 | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen. 3) | |||
| Supported dimensions | 2242 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 8 Pce | |||
| Network | 8x G-LAN | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (Type-A socket) | 2 Pce | |
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 4 Pce | ||

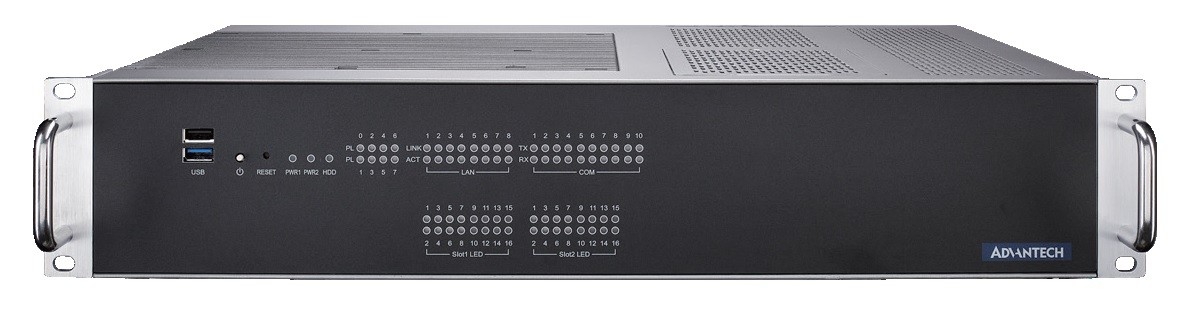

| Externe I/O (Front Panel) | ||||
| USB | USB 2.0 | 1 Pce | ||
| USB 3.2 (Gen 1) | 1 Pce | |||

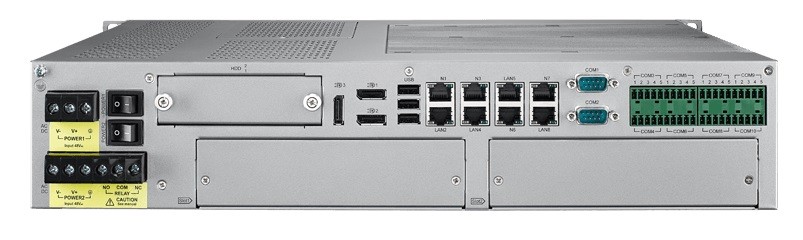

| Externe I/O (Rear Panel) | ||||
| Display | DP++ | 3 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| RS-232 / 422 / 485 | 5-pin terminal plug | 8 Pce | ||
| USB | USB 2.0 | 3 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | AC | Range | 100~240V | |
| Modules | 2 Pce | |||
| Redundant | Yes, dual AC | |||
| Power supply - Input | AC: 100-240V | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 4 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -25° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | 19-inch | ||
| Width | 482,6 mm | |||
| Deep | 323,9 mm | |||
| Height | 88 mm | |||
| Height units | 2 HE | |||
| IP Rating | IP20 (full) | |||
| Vibration | Reference Standard | IEC 68-2-64 | ||
| Shock | Measurement Data | 20G, 11 ms | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 7600 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 2 Pce | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Windows Server 2022 | is supported | |||
| Linux | Distribution | Ubuntu 24.04 | ||
| Supported OS | Windows, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | CB, IEC 61850-3 | |||
| RoHS compliant | Yes | |||
