4U Server
// 19-inch
// null
// LGA 4677 (P5)
// TDP 270 W
// DDR5
// 4 x G-LAN (Front page)
Sales only to business customers.
Delivery time: upon request

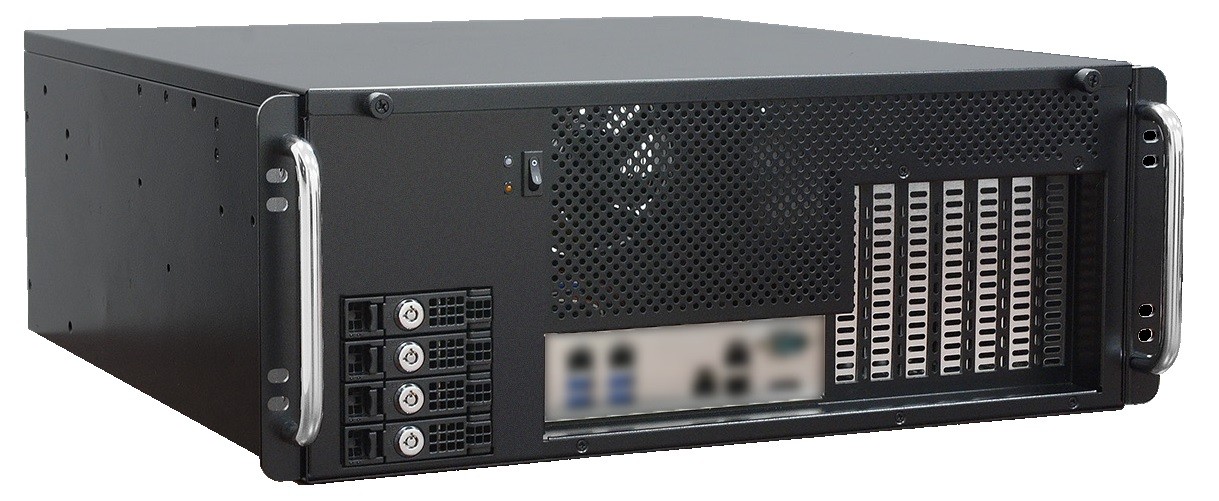

Basic Module: DFI RM645-ERX610
| General information | ||||
| SKU / Item Number | RM645-ERX610 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Vertical Segment | Server | ||
| Socket | LGA 4677 (P5) | |||
| Thermal Design Power (TDP) | 270 W | |||
| Chipset | Intel C741 | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | ECC RDIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 16 Pce | |||
| Maximum expansion | 1024 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| BIOS | Insyde SPI 256 Mbit | |||
| IPMI (Intelligent Platform Management Interface) | IPMI controller | Realtek RTL8211F | ||
| Version | 2.0 | |||
| Extension | ||||
| PCIe x8 | Generation | 5 | ||
| x8 signal | 3 Pce | |||
| PCIe x16 | x16 signal | Generation | 5 | |
| Quantity | 3 Pce | |||
| PCIe Interfaces | 3x PCIe x8, 3x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Controller | Chipset | Intel E610-XAT2 (2 x 10GbE) | ||
| Quantity | 1 Pce | |||
| Network | 3x G-LAN | |||
| Internal I/O | ||||
| Audio | Connector | 2.00 mm pitch | ||
| Externe I/O (Front Panel) | ||||
| Display | DisplayPort | 1 Pce | ||
| Ethernet | RJ-45 | 4 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 1) | 4 Pce | ||
| Management Ports | Amount | 1 Pce | ||
| Connenctor | RJ-45 | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 2 Pce | |
| Diameter | 120 mm | |||
| Inserts | ||||
| external | 2.5" installation slot | 4 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | 19-inch | ||
| Width | 481,6 mm | |||
| Deep | 470,8 mm | |||
| Height | 175,6 mm | |||
| Height units | 4 HE | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Slots and Brackets | Standard | 7 Pce | ||
| Color | Black | |||
| Material | Steel | |||
| Mounting option | Rackmount | |||
| OS / Software | ||||
| Windows | Windows Server 2022 | is supported | ||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Supported OS | Windows, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
