4U Server
// 19-inch
// null
// LGA 1700 (H6)
// TDP 125 W
// DDR5
// [2 | 4] x G-LAN (Front page)
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

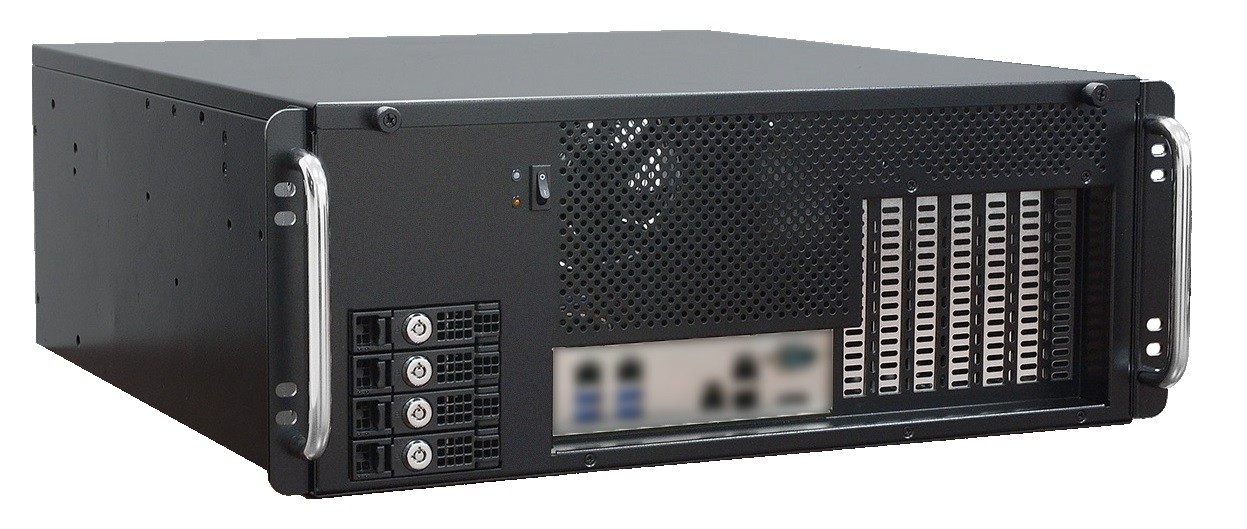

Basic Module: DFI RM645-RPS630
| General information | ||||
| SKU / Item Number | RM645-RPS630 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Series | Intel Alder Lake / Raptor Lake / Raptor Lake Refresh / Bartlett Lake-S | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 125 W | |||
| Chipset | Intel Q670E, Intel R680E | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 4 Pce | |||
| Maximum expansion | 192 GB | |||
| ECC (Error-Correcting Code) | is supported, not supported | |||
| Graphics | ||||
| Screens (Multi-display) | 4 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 4096 x 2160 at 24 Hz | ||
| Version | 2.0a | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| PCI | Quantity | 1 Pce | ||
| PCI Interfaces | 1x PCI slot | |||
| PCIe x4 | x4 signal | 4 Pce | ||
| PCIe x16 | x8 signal | Generation | 4 | |
| Quantity | 2 Pce | |||
| PCIe Interfaces | 2x PCIe x16 slots, 4x PCIe x4 | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | CNVi (Connected Network Interface), Wi-Fi | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | A | ||
| Interface | OOB (Out Of Box) | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen 4), SATA III | |||
| Supported dimensions | 2242, 2260, 2280 | |||
| Slot 4 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 3) | |||
| Supported dimensions | 2242, 2260, 2280 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce, 2 Pce | |||
| Controller | Chipset | -, Intel I210AT PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce, - | |||
| Network | 1x G-LAN | |||
| Externe I/O (Front Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DP++ | 2 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce, 4 Pce | ||
| USB | USB 3.2 (Gen 1) | 4 Pce | ||
| USB 3.2 (Gen 2) | 4 Pce | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 2 Pce | |
| Diameter | 120 mm | |||
| Inserts | ||||
| external | 2.5" installation slot | 4 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Dimensions | Form factor | 19-inch | ||
| Width | 481,6 mm | |||
| Deep | 470,8 mm | |||
| Height | 175,6 mm | |||
| Height units | 4 HE | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Slots and Brackets | Standard | 7 Pce | ||
| Color | Black | |||
| Material | Steel | |||
| Mounting option | Rackmount | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Supported OS | Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
