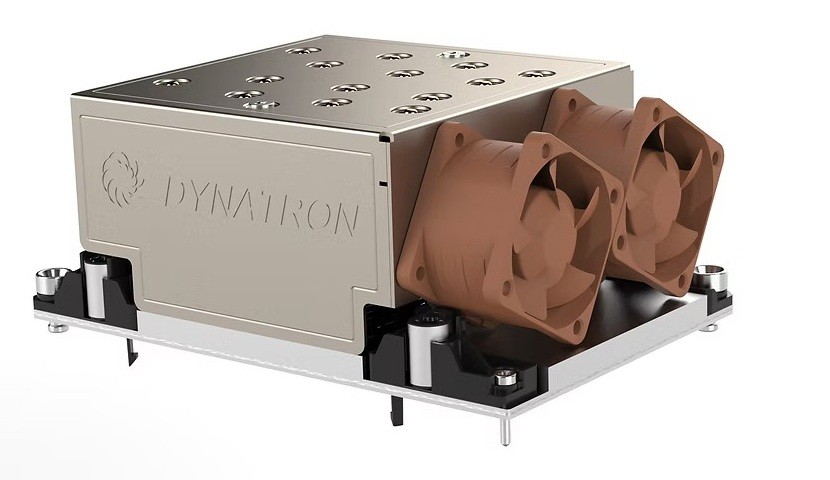

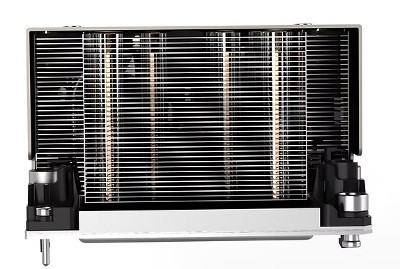

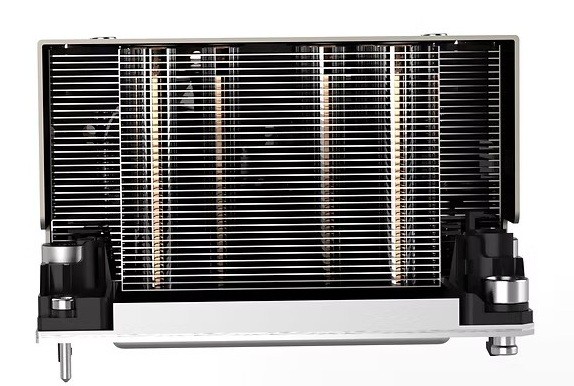

Dynatron CA26

LGA 9324

PRODUCT FEATURES

// CA26
// double ball bearing loaded

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Dynatron CA26

General information
	SKU / Item Number			CA26
Product Basic Data
	Manufacturer			Dynatron
Cooling
	Implementation			Active (fan cooling)
	Active	Fan	Quantity	2 Pce
			Diameter	40 mm
			height	28 mm
			bearing	double ball bearing loaded
			Speed	26000 rpm
			Tolerance	10 %
			Air flow (at 100%)	45 cfm
			Air pressure (at 100%)	131,91 mmH2O
			Noise Level (at 100%)	69,59 dB
			Wires connector	4
			Lead Wire Pin Out	Pin 1 (-), Pin 2 (+), Pin 3 (Tachometer / Signal output), Pin 4 (PWM)
			Voltage (DC)	12 V
			Power (at 100%)	23 W
Mechanical / Environment
	Dimensions	Width		153,5 mm
		Deep		101,5 mm
		Height		65,2 mm
		Height units		2 HE
Certificates / Conformities
	CE			Yes
	FCC	Class B		Yes
	RoHS compliant			Yes
