COM Express Compact
// COM Express Compact
// [Intel Core Ultra 5 Processor 125H | Intel Core Ultra 5 Processor 125U | Intel Core Ultra 5 Processor 135H | Intel Core Ultra 5 Processor 135U | Intel Core Ultra 7 Processor 155U | Intel Core Ultra 7 Processor 165U]
// LVDS
// 1 x G-LAN
// 11 x USB (internal)
// Digital I/O (8-Bit)
// 8 x PCIe x1
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

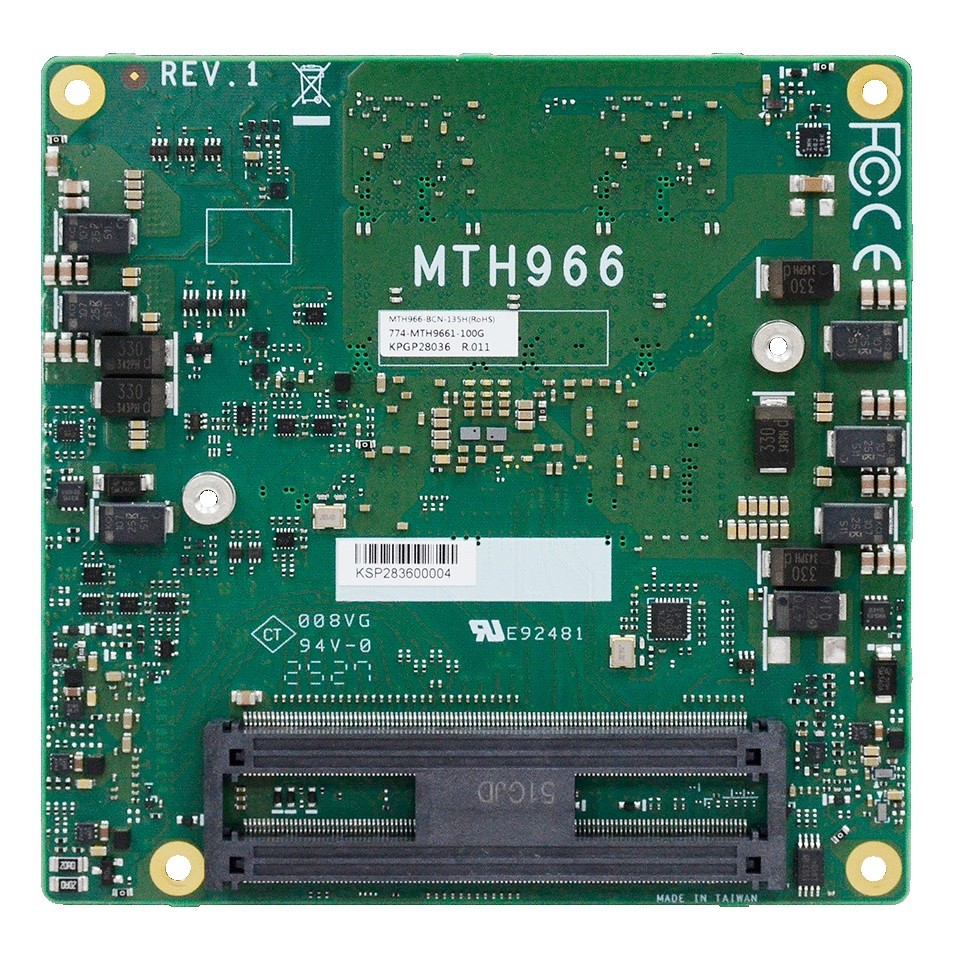

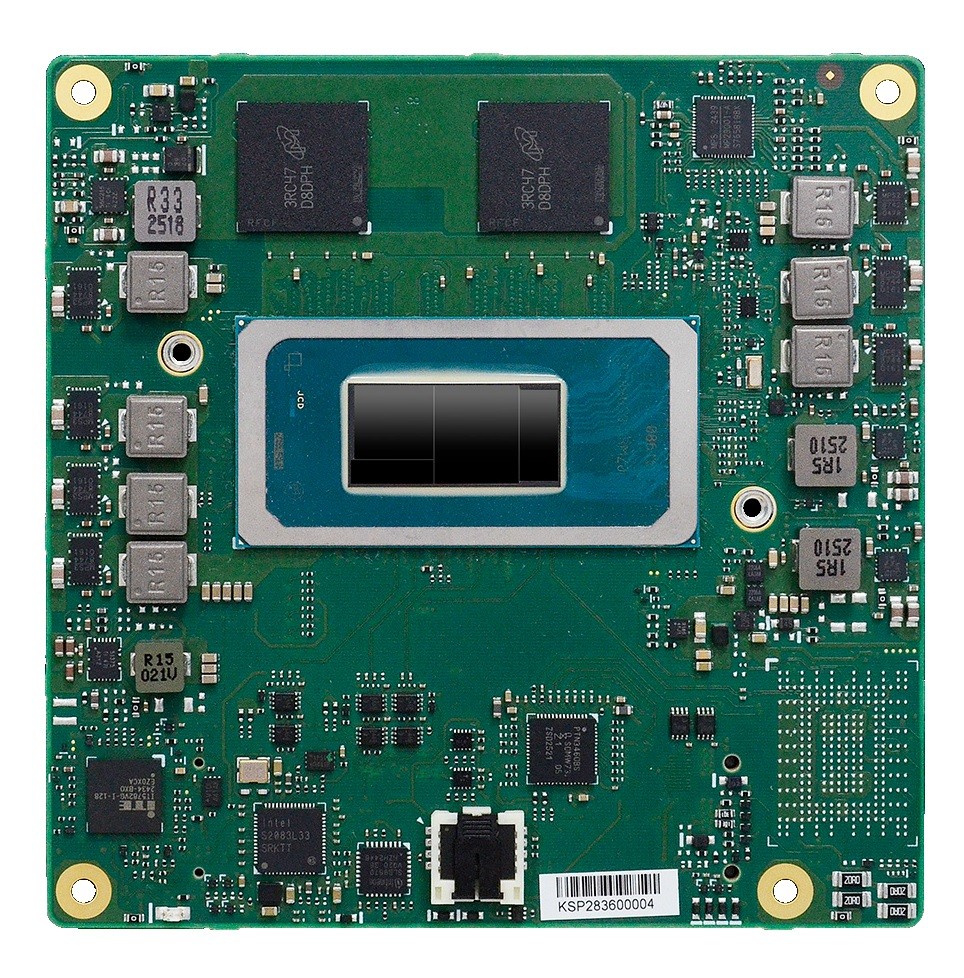

Basic Module: DFI MTH966
| General information | ||||
| SKU / Item Number | MTH966 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Meteor Lake | |||
| Number | Intel Core Ultra 5 Processor 125H, Intel Core Ultra 5 Processor 125U, Intel Core Ultra 5 Processor 135H, Intel Core Ultra 5 Processor 135U, Intel Core Ultra 7 Processor 155U, Intel Core Ultra 7 Processor 165U | |||
| CPU cores | 12 Pce, 14 Pce | |||
| Threads | 14 Pce, 18 Pce | |||
| Socket | BGA 2049 | |||
| Max Turbo Frequency | 4,3 GHz, 4,4 GHz, 4,5 GHz, 4,6 GHz, 4,8 GHz, 4,9 GHz | |||
| Performance core base clock frequency | 1,2 GHz, 1,3 GHz, 1,6 GHz, 1,7 GHz | |||
| Performance Core Max Turbo Frequency | 4,3 GHz, 4,4 GHz, 4,5 GHz, 4,6 GHz, 4,8 GHz, 4,9 GHz | |||
| Efficient-core base clock frequency | 0,7 GHz, 0,8 GHz, 1,1 GHz, 1,2 GHz | |||
| Efficient-core Max Turbo Frequency | 3,6 GHz, 3,8 GHz | |||
| Cache | 12 MB, 18 MB | |||
| Basic power consumption of the processor | 15 W, 28 W | |||
| Maximum Turbo Power Consumption | 57 W, 115 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| Frequency | 5600 MHz | |||
| Maximum expansion | 64 GB | |||
| Storage | Solid State Drive (NVMe SSD) | - | ||
| BIOS | AMI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Fintek F85227N | |
| Controller 2 | I/O controller | ITE IT8528VG | ||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Dual mode | Yes (DP++) | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | NXP PTN3460 | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Extension | ||||
| PCIe x1 | Generation | 4 | ||
| x1 Signal (Interface) | 8 Pce | |||
| PCIe x4 | Generation | 4 | ||
| x4 signal (interface) | 2 Pce | |||
| PCIe x8 | Generation | 5, - | ||
| x8 Signal (Interface) | 1 Pce, - | |||
| PCIe Interfaces | 2x PCIe x4, 8x PCIe x1 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226IT PCIe (10/100/1000/2500 Mbps), Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||
| Internal I/O | ||||
| USB | USB 2.0 | Interface | 8 Pce | |
| USB 3.2 | Interface | 3 Pce | ||
| Display | LVDS interface | 1 Pce, - | ||
| eDP (Embedded DisplayPort) lanes | 1 Pce, - | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| UART | Tx/Rx | 2 Pce | ||
| Serial ATA | SATA R3.0 (Interface) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Available Upon Request | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | VCC_RTC (AT Mode), 8.5V ~ 12V | |
| DC | Range | VCC_RTC (ATX mode), 8.5V~20V, 5VSB | ||
| Power supply - Input | DC: VCC_RTC (AT Mode), 8.5V~12V, VCC_RTC (ATX Mode), 8.5V~20V, 5VSB | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Cooling | ||||
| Implementation | Active (fan cooling), Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Storage | 10 to 90%, non-condensing | |||
| Dimensions | Form factor | COM Express Compact | ||
| Width | 95 mm | |||
| Deep | 95 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Compatibility | PICMG COM Express R3.1, Type 6 | |||
| RoHS compliant | Yes | |||
