COM Express Mini
// COM Express Mini
// [Intel Atom X7211RE | Intel Atom x7213RE | Intel Atom X7433RE | Intel Atom x7835RE]
// [8 GB | 16 GB]
// LVDS|DDI
// 1 x G-LAN
// 10 x USB (internal)
// 64 GB eMMC
// Digital I/O (8-Bit)
// 4 x PCIe x1
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

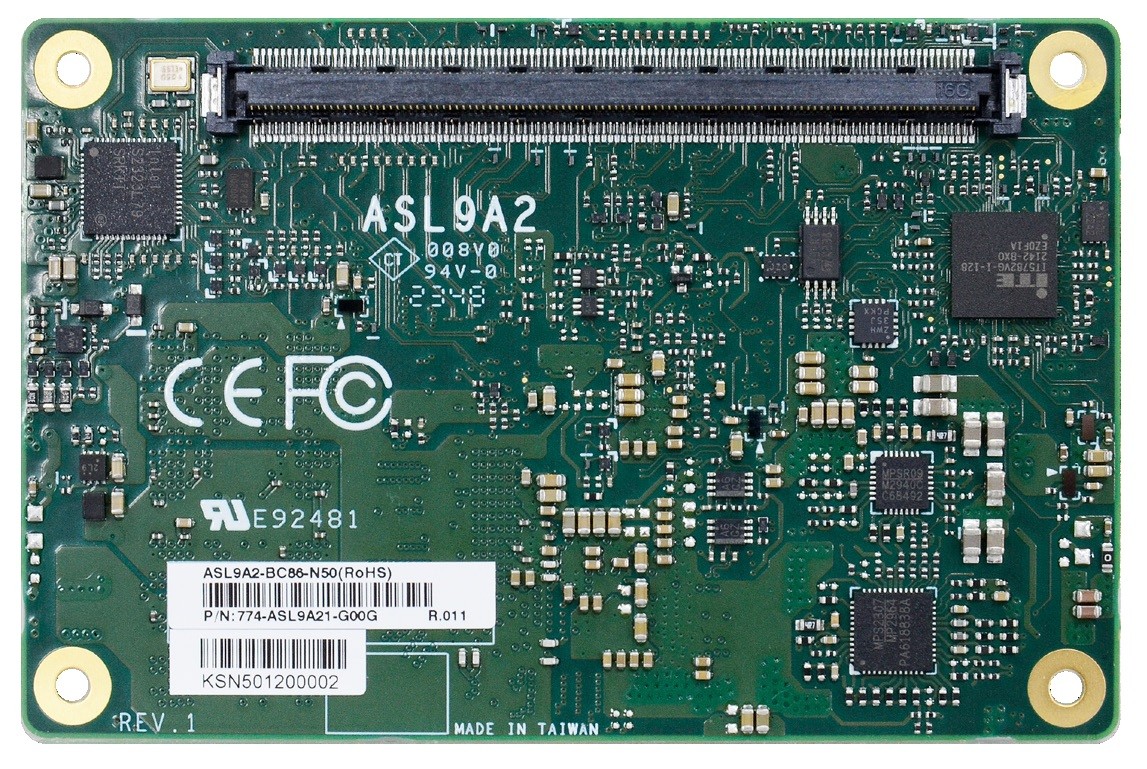

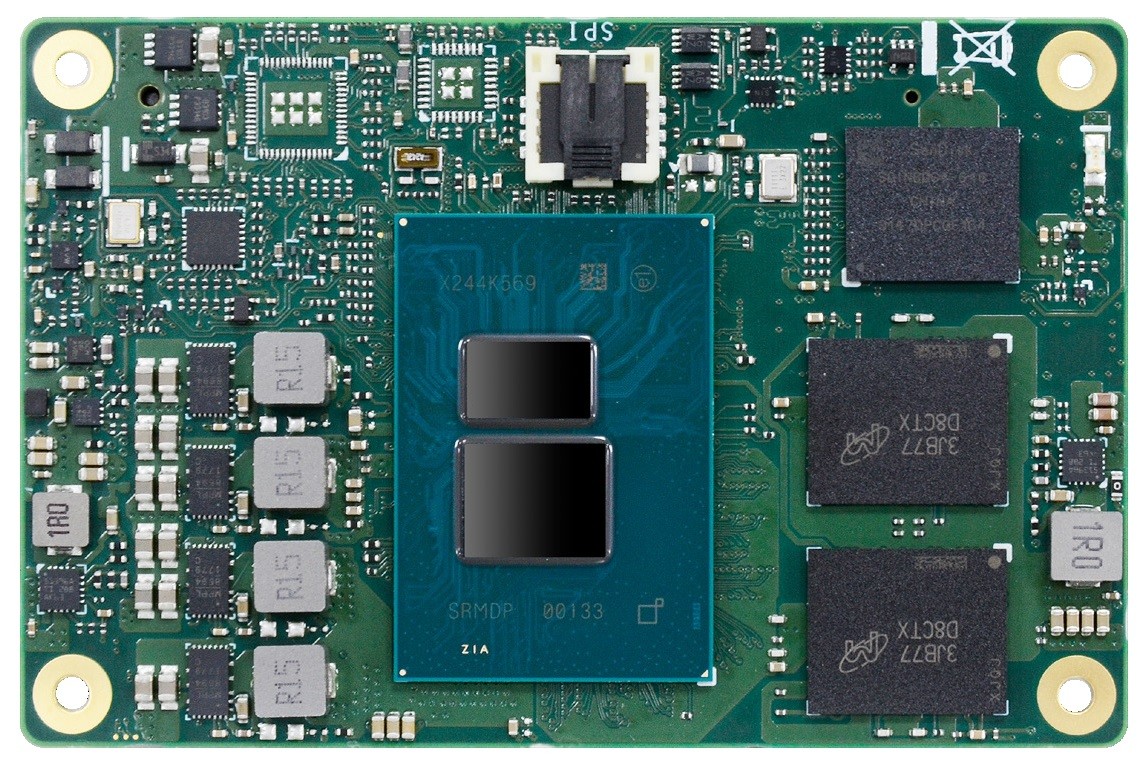

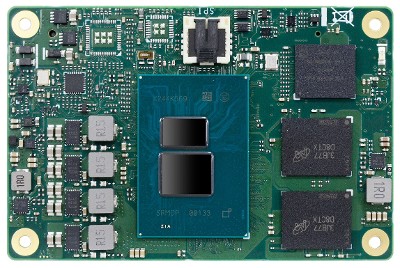

Basic Module: DFI ASL9A2
| General information | ||||
| SKU / Item Number | ASL9A2 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-ASL9A21-000G, 770-ASL9A21-100G, 770-ASL9A21-200G, 770-ASL9A21-300G | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Amston Lake | |||
| Number | Intel Atom X7211RE, Intel Atom x7213RE, Intel Atom X7433RE, Intel Atom x7835RE | |||
| CPU cores | 2 Pce, 4 Pce, 8 Pce | |||
| Threads | - | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,2 GHz, 3,4 GHz, 3,6 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W, 9 W, 12 W | |||
| Memory | Memory Type | DDR5 | ||
| Frequency | 4800 MHz | |||
| Maximum expansion | 16 GB | |||
| Internal memory | 8 GB, 16 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| eMMC version | 5.1 | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O controller | Controller 1 | I/O controller | ITE IT5782VG | |
| Controller 2 | I/O controller | Fintek F85227N | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Screens (Multi-display) | 2 displays | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | NXP PTN3460 | |||
| DDI (Digital Display Interfaces) | DP++ | Maximum resolution | 4096 x 2160 at 60 Hz | |
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| eDP (Embedded DisplayPort) | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Extension | ||||
| PCIe x1 | Generation | 3 | ||
| x1 Signal (Interface) | 4 Pce | |||
| PCIe Interfaces | 4x PCIe x1 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||
| Internal I/O | ||||
| USB | USB 2.0 | Interface | 8 Pce | |
| USB 3.2 | Generation | Gen. 2 | ||
| Interface | 2 Pce | |||
| Display | LVDS (Low Voltage Differential Signaling) | Single channel | ||
| LVDS interface | 1 Pce, - | |||
| eDP (Embedded DisplayPort) lanes | 1 Pce, - | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| LPC | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| UART | Tx/Rx | 2 Pce | ||
| Serial ATA | SATA R2.0 (Interface) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | - | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Storage | 5 to 90%, non-condensing | |||
| Dimensions | Form factor | COM Express Mini | ||
| Width | 84 mm | |||
| Deep | 55 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Compatibility | PICMG COM Express R3.1, Typ 10 | |||
| RoHS compliant | Yes | |||
