COM Express Mini
// COM Express Mini
// [Intel Atom X7211RE | Intel Atom x7213RE | Intel Atom X7433RE | Intel Atom x7835RE]
// [8 GB | 16 GB]
// LVDS|DDI
// 1 x G-LAN
// 10 x USB (internal)
// 64 GB eMMC
// Digital I/O (8-Bit)
// 4 x PCIe x1
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

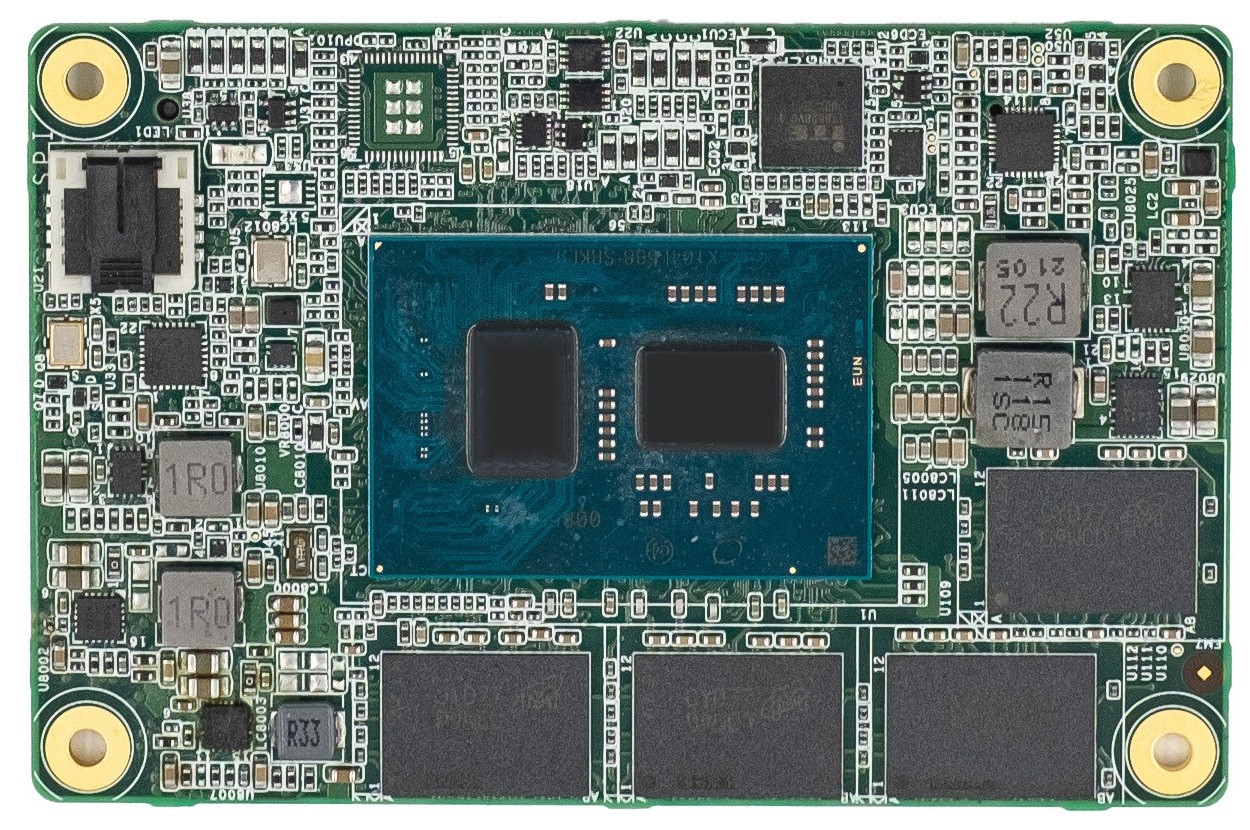

Basismodul: DFI ASL9A2
Allgemein | ||||
SKU / Artikelnummer | ASL9A2 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-ASL9A21-000G, 770-ASL9A21-100G, 770-ASL9A21-200G, 770-ASL9A21-300G | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Amston Lake | |||
Nummer | Intel Atom X7211RE, Intel Atom x7213RE, Intel Atom X7433RE, Intel Atom x7835RE | |||
CPU Kerne | 2 St, 4 St, 8 St | |||
Threads | - | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,2 GHz, 3,4 GHz, 3,6 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 6 W, 9 W, 12 W | |||
Speicher | Memory Type | DDR5 | ||
Frequenz | 4800 MHz | |||
Maximaler Ausbau | 16 GB | |||
Speicher onBoard | 8 GB, 16 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
eMMC Version | 5.1 | |||
BIOS | AMI SPI 256 Mbit | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT5782VG | |
Controller 2 | I/O Controller | Fintek F85227N | ||
Storage | Embedded MultiMedia Card (eMMC) 64 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
Bridge | NXP PTN3460 | |||
DDI (Digital Display Interfaces) | DP++ | Maximale Auflösung | 4096 x 2160 bei 60 Hz | |
HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Erweiterung | ||||
PCIe x1 | Generation | 3 | ||
x1 Signal (Interface) | 4 St | |||
PCIe Schnittstellen | 4x PCIe x1 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||
Interne I/O | ||||
USB | USB v2.0 | Interface | 8 St | |
USB v3.2 | Generation | Gen. 2 | ||
Interface | 2 St | |||
Anzeige | LVDS | Single Channel | ||
LVDS Interface | 1 St, - | |||
eDP (embedded Display Port) Lanes | 1 St, - | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
LPC | 1 St | |||
I²C | 1 St | |||
UART | Tx/Rx | 2 St | ||
Serial-ATA | S-ATA R2.0 (Interface) | 2 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | - | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | COM Express Mini | ||
Breite | 84 mm | |||
Tiefe | 55 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Kompatibilität | PICMG COM Express R3.1, Type 10 | |||
RoHS konform | Ja |
