Open Standard Module (OSM)
// Mini-ITX Open Standard Module (OSM)
// 4 x USB
// 3 x Seriell I/O
// 2 x CAN Bus [CAN-FD]
// Digital I/O (8-Bit)
// 1 x PCIe x4
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

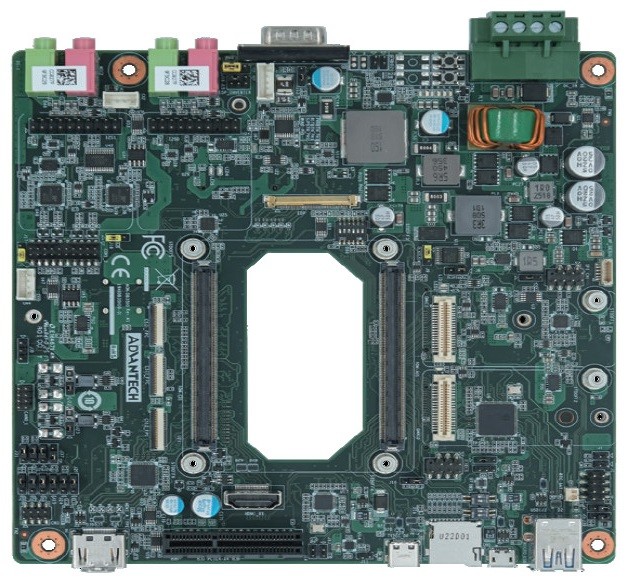

Basic Module: Advantech AOM-DB3500
| General information | ||||
| SKU / Item Number | AOM-DB3500 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Extension | ||||
| PCIe x4 | Generation | 3 | ||
| x4 signal | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x4 | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | SDIO, UART | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×2, SATA III, UART, USB 2.0, USB 3.0 | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | B | ||
| Interface | PCIe ×2, SATA III, USB 3.0 | |||
| Supported dimensions | 2242 | |||
| M.2 Key IDs | B, E | |||
| Storage | Micro SD (external) | |||
| External I/O | ||||
| USB | USB 3.0 | 2 Pce | ||
| USB v3.0 (Type C) | 1 Pce | |||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Serial | RS-232 | DB-9 | 1 Pce | |
| Display | DP USB-C | 1 Pce | ||
| Audio | Line Out | 2 Pce | ||
| Mic-In | 2 Pce | |||
| Internal I/O | ||||
| Serial | RS-422 / 485 | Ports (2.00 mm pitch) | 2 Pce | |
| Display | eDP (Embedded DisplayPort) lanes | 1 Pce | ||
| HDMI (Gold-Plated Contacts) | 1 Pce, - | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial Peripheral Interface (SPI) | 2 Pce | |||
| I²C (Inter-Integrated Circuit) | 2 Pce | |||
| Image Capture Interfaces | Camera Input 1 | Quantity | 2 Pce, - | |
| Lanes | 4 Pce | |||
| CAN bus | Version 2.0B (with isolation) | 2 Pce | ||
| Protocol | CAN-FD | |||
| Audio | S/PDIF | available | ||
| I²S | 2 Pce | |||
| Output current | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 24V | |||
| Connector | 4-pin terminal plug | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Mini-ITX | ||
| Width | 170 mm | |||
| Deep | 170 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
