Digital Signage System
// Digital Signage System
// Intel Core i5-1335U
// Passive cooled
// 4 x Display
// 1 x Serial
// 6 x USB (Front page)
// 2 x USB (Back side)
// 2 x G-LAN (Front page)
// 3 x M.2 Slot
// 12 to 24V
Sales only to business customers.
Delivery time: upon request
Basic Module: GIGAIPC QL-1335A
| General information | ||||
| SKU / Item Number | QL-1335A | |||
| Product Basic Data | ||||
| Manufacturer | GIGAIPC | |||
| Product ID | 6BQL1335AMR-SI | |||
| System | ||||
| Processor | Series | Intel Raptor Lake | ||
| Number | Intel Core i5-1335U | |||
| CPU cores | 10 Pce | |||
| Threads | 12 Pce | |||
| Socket | BGA 1744 | |||
| Max Turbo Frequency | 4,6 GHz | |||
| Performance Core Max Turbo Frequency | 4,6 GHz | |||
| Efficient-core Max Turbo Frequency | 3,4 GHz | |||
| Cache | 12 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 55 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5200 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 96 GB | |||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Screens (Multi-display) | 4 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.1 | |||
| DisplayPort | Maximum resolution | 7680 x 4320 at 30 Hz | ||
| Version | 1.4 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen 4), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module | |||
| Supported dimensions | 3042, 3052 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC269 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

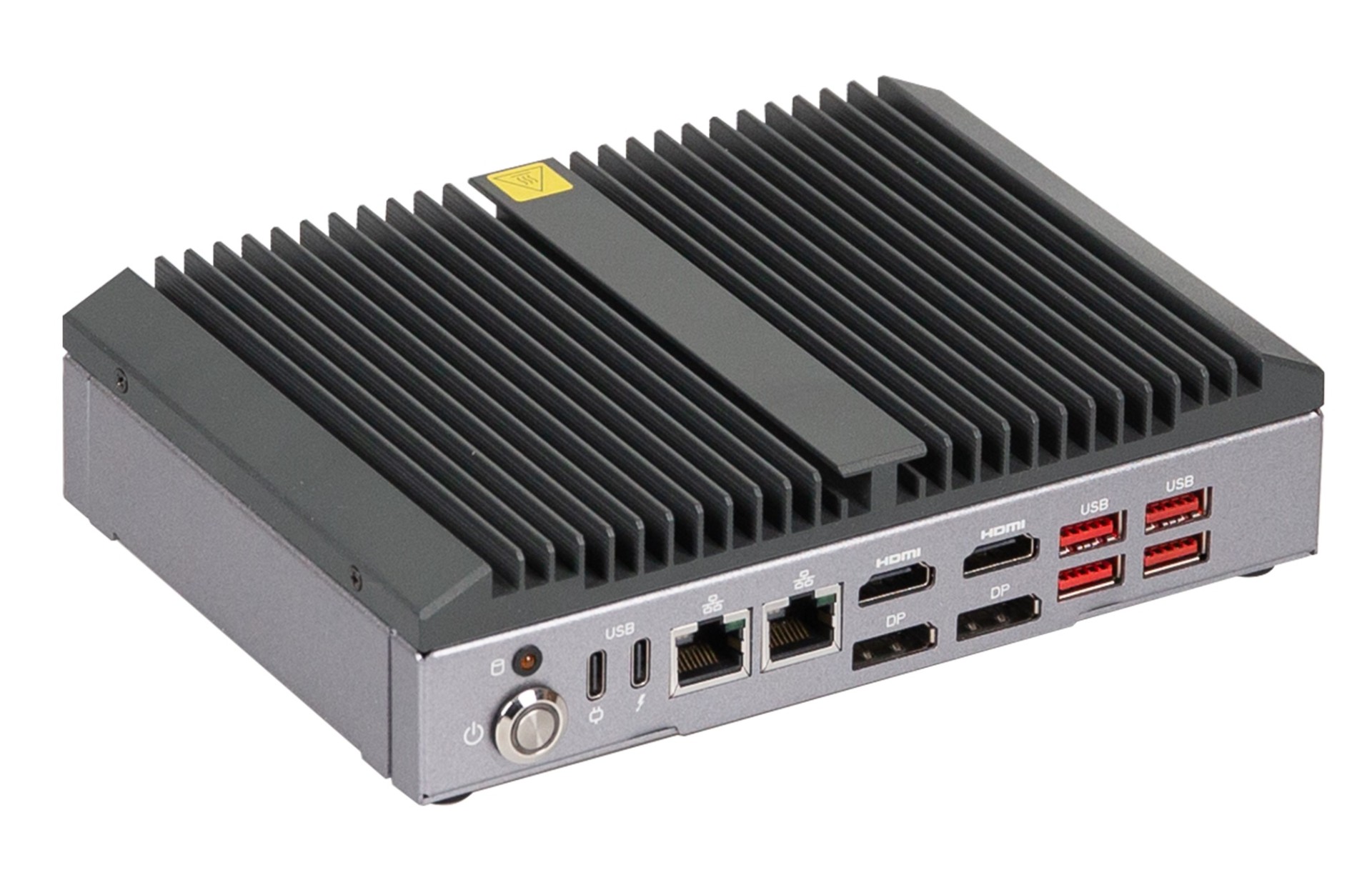

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 2 Pce | ||
| DisplayPort | 2 Pce | |||
| DP USB-C | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 4 Pce | ||
| USB v3.2 (Gen 2, Type C) | 2 Pce | |||

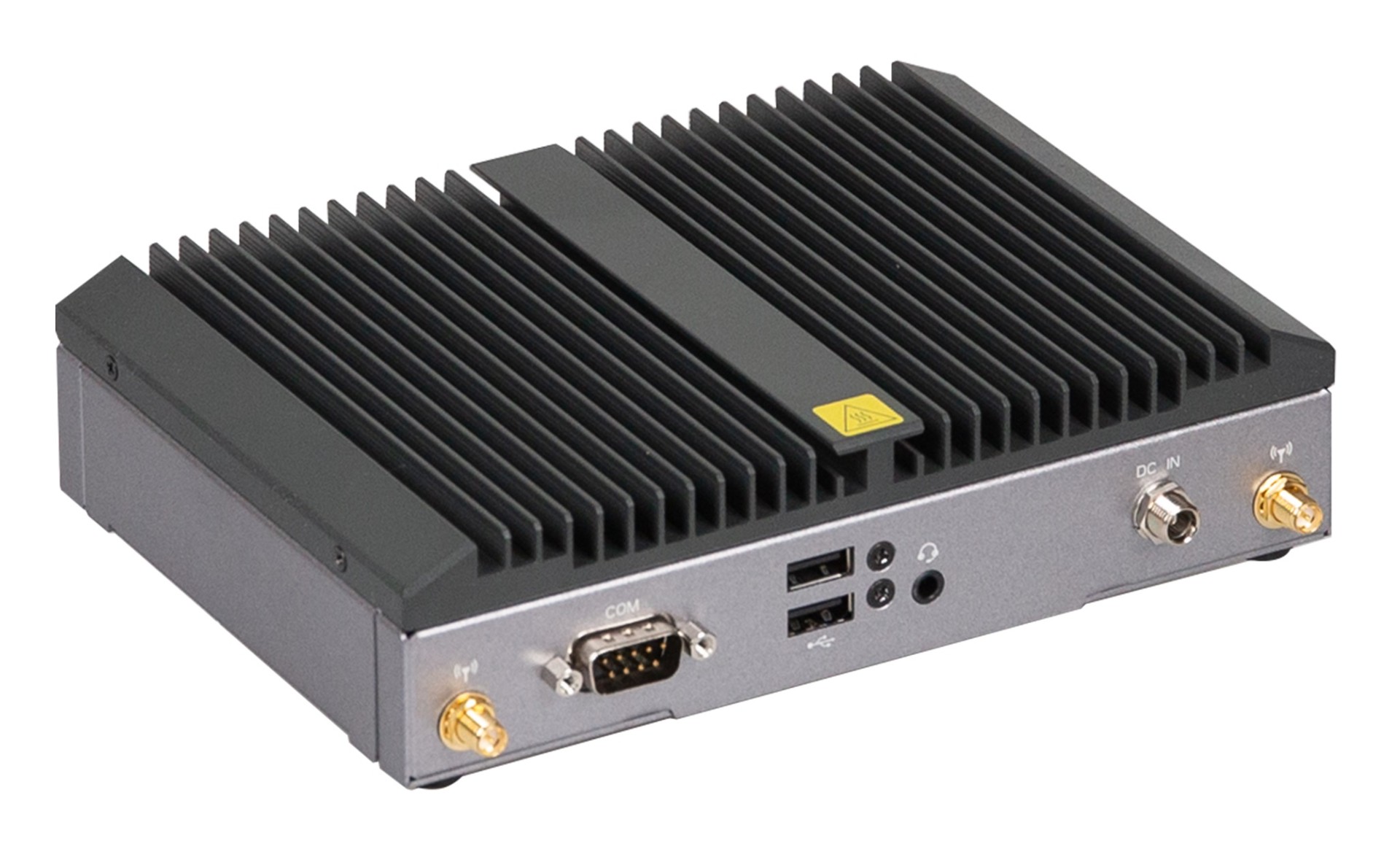

| Externe I/O (Rear Panel) | ||||
| Audio | Combo Jack | 1 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | Male connector (screw-in) | |||
| DC | Connector | USB Type-C | ||
| Power supply - Input | DC: 12 to 24V | |||
| Typ (Output) | DC | Connector | USB Type-C | |
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 20 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | Digital Signage System | ||
| Width | 178 mm | |||
| Deep | 125 mm | |||
| Height | 42,7 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 50G, 0.5 ms | ||
| Reference Standard | IEC 68-2-27 | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Antenna holes | 2 Pce | |||
| Mounting option | VESA, Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
