Embedded System
// Embedded System
// Intel Core i5-1145G7
// Passive cooled
// 8 GB RAM
// 2 x Display
// 2 x Serial
// 6 x USB (Front page)
// 2 x G-LAN (Front page)
// 4 x G-LAN (Back side)
// 3 x M.2 Slot
// 9 to 36V
Sales only to business customers.
Delivery time: upon request
Basic Module: Artessa IT AIT-B04-I5G11-M4-F-4L10-M01-COM2-P36
| General information | ||||
| SKU / Item Number | AIT-B04-I5G11-M4-F-4L10-M01-COM2-P36 | |||
| Product Basic Data | ||||
| Manufacturer | Artessa IT | |||
| System | ||||
| Processor | Series | Intel Tiger Lake | ||
| Number | Intel Core i5-1145G7 | |||
| CPU cores | 4 Pce | |||
| Threads | 8 Pce | |||
| Socket | BGA 1449 | |||
| Max Turbo Frequency | 4,4 GHz | |||
| Cache | 8 MB | |||
| Basic power consumption of the processor | 12 W | |||
| Maximum Turbo Power Consumption | 28 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Internal memory | 8 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 128 GB | ||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module | |||
| Supported dimensions | 3042 | |||
| Slot 3 | Key ID | E | ||
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Network | ||||
| Cellular Network | GNSS (Global Navigation Satellite System) | BeiDou, Galileo, GLONASS, GPS | ||

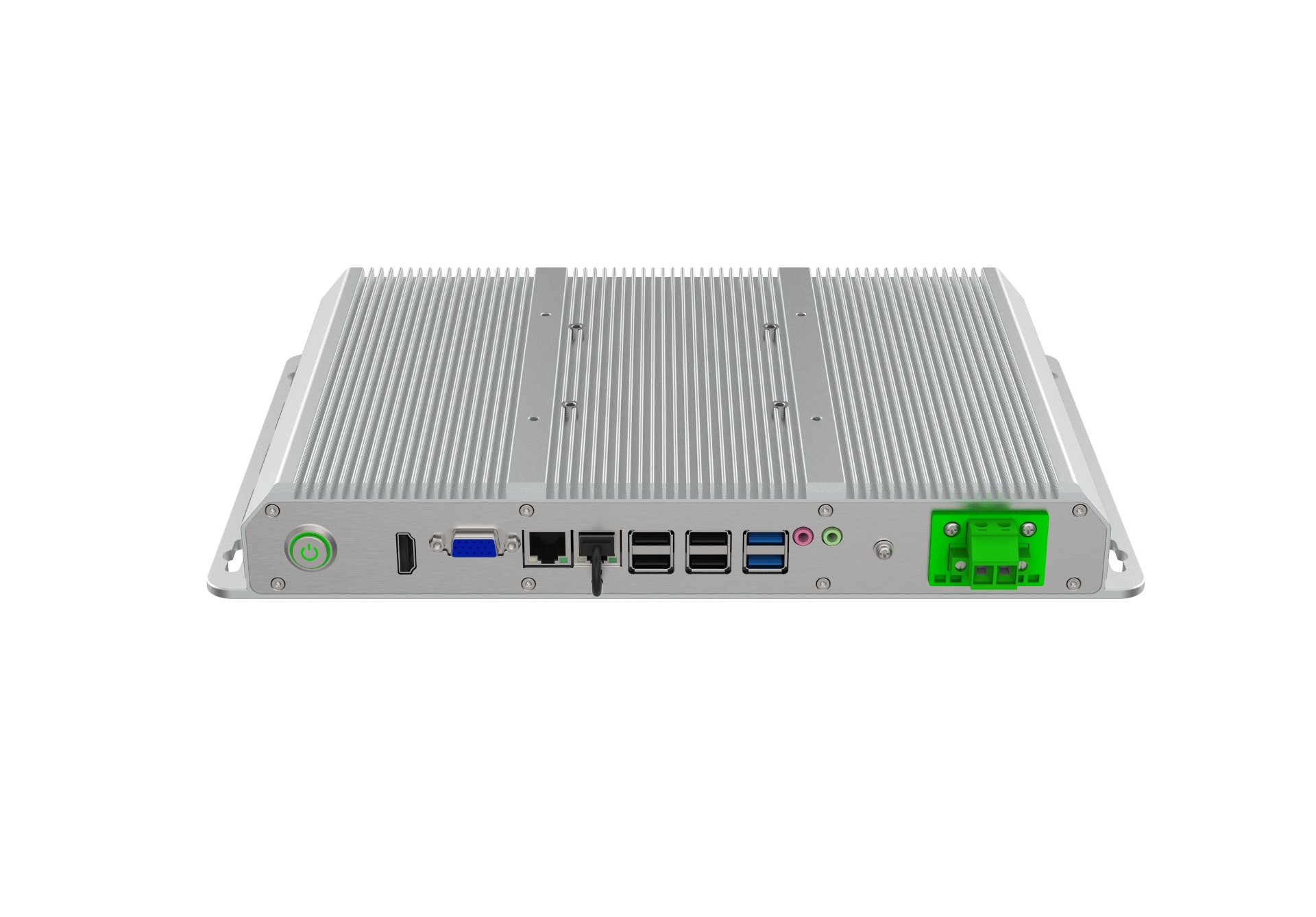

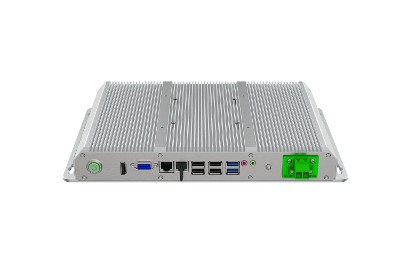

| Externe I/O (Front Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 4 Pce | ||
| USB 3.0 | 2 Pce | |||

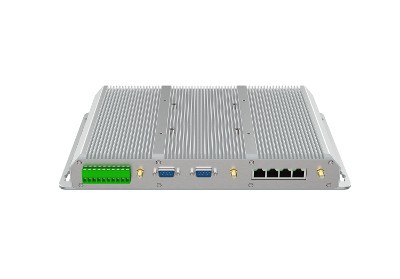

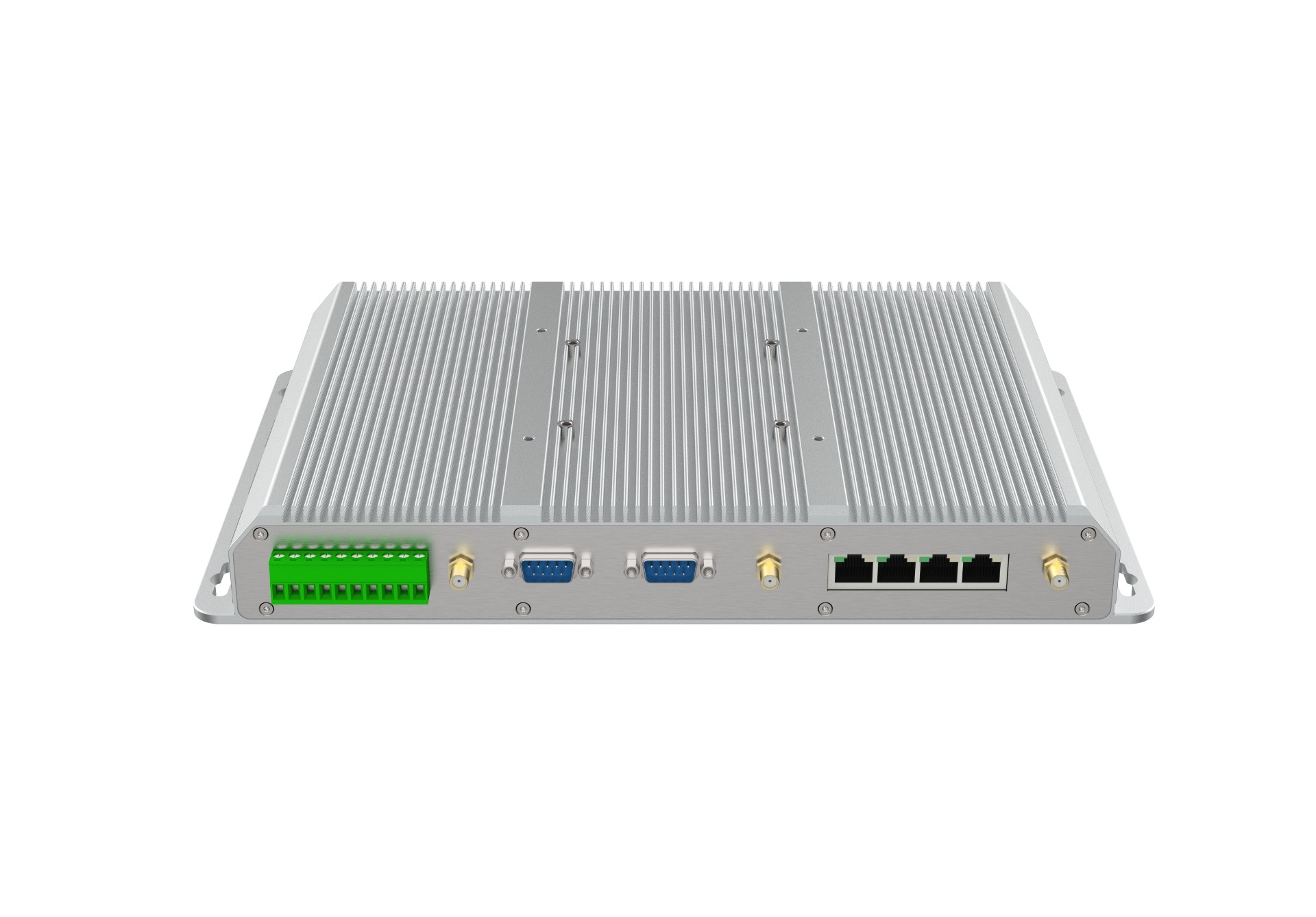

| Externe I/O (Rear Panel) | ||||
| Ethernet | RJ-45 with PoE | 4 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| CAN bus | Connector | 10 pin | ||
| piece | 1 Pce | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 9~36V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Dimensions | Form factor | Embedded System | ||
| Width | 322 mm | |||
| Deep | 210 mm | |||
| Height | 43 mm | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Antennas | 3 Pce | |||
| Antenna connection | TNC connector | |||
| Color | Silver | |||
| Material | Aluminum, Stainless Steel | |||

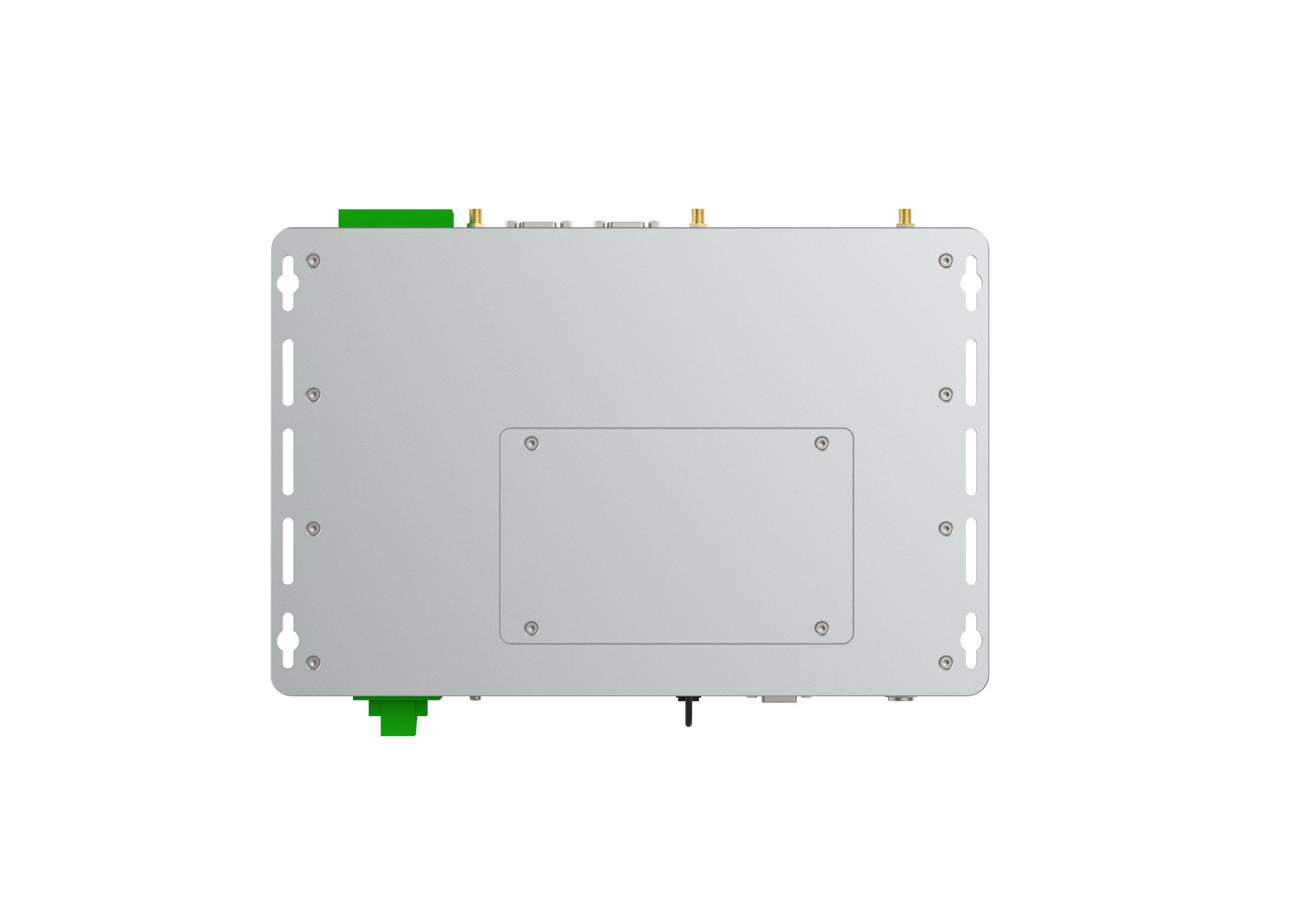

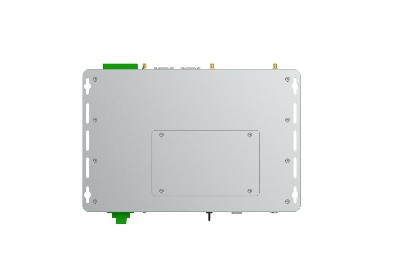

| Mounting option | VESA, Wall Mount | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Windows, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
