Embedded System
// Embedded System
// [Intel Atom X7433RE | Intel Atom x7835RE]
// Passive cooled
// 8 GB RAM
// 2 x USB (Front page)
// 2 x G-LAN (Front page)
// 3 x M.2 Slot
// 10 to 28V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

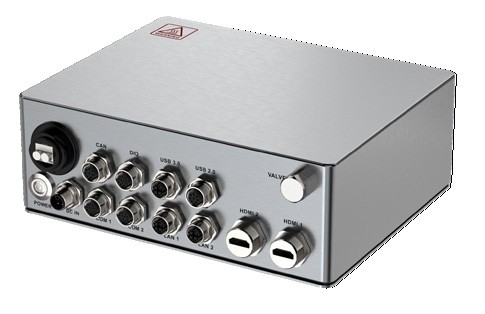

Basic Module: IEI SWBOX-ASL
| General information | ||||
| SKU / Item Number | SWBOX-ASL | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Amston Lake | |||
| Number | Intel Atom X7433RE, Intel Atom x7835RE | |||
| CPU cores | 4 Pce, 8 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,4 GHz, 3,6 GHz | |||
| Cache | 6 MB | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| Internal memory | 8 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×2 (Gen 3) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | A | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | B | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 3042, 3052 | |||
| M.2 Key IDs | A, B, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Externe I/O (Front Panel) | ||||
| Display | HDMI-IP67 | 2 Pce | ||
| Ethernet | M12 connectors | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | M12 connectors | 2 Pce | |
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 8-bit | |||
| Connector | M12 | |||
| USB | USB 2.0 | 2 Pce | ||
| USB v3.2 (Gen 1, Type C) | 1 Pce | |||
| M12 connectors | Yes | |||
| CAN bus | Connector | M12 | ||
| piece | 2 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | TPM header | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 10 to 28V | |||
| Connector | M12 | |||
| Power supply - Input | DC: 10–28V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation (SSD) | -40°C to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | Embedded System | ||
| Width | 226,4 mm | |||
| Deep | 178,5 mm | |||
| Height | 81 mm | |||
| IP Rating | IP69K (completely) | |||
| Vibration | Reference Standard | MIL-STD-810H Method 514.8 Procedure I | ||
| Shock | Measurement Data | 10G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 2580 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Material | Stainless Steel | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
