Industrial Panel-Mount Display
// 21.5" TFT LCD
// Touchscreen (Capacitive)
// IP66 (front side)
// 1 x USB (Back side)
// Power Supply DC 12 to 24V
Sales only to business customers.
Delivery time: upon request

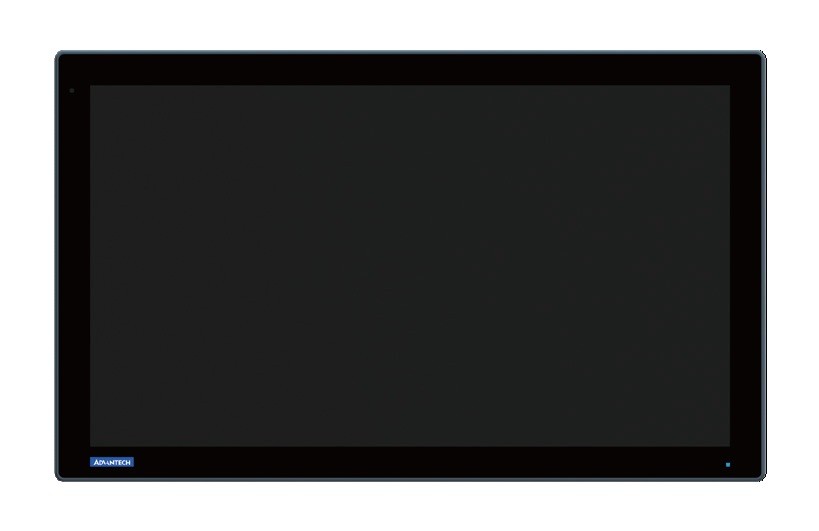

Basic Module: Advantech FPM-321SW
| General information | ||||
| SKU / Item Number | FPM-321SW | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Product ID | FPM-321SW-P5AE | |||
| Display | ||||
| Display Typ | 21.5" TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Max. Colors | 16.7 million | |||
| Contrast | 1000:1 | |||
| Luminance | 1400 cd/m² | |||
| Viewing angle | Horizontal | 178 ° | ||
| Vertical | 178 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 50000 h | |||
| Touch Screen | Type | Capacitive | ||
| Interface | USB | |||
| Multitouch | 10-point | |||
| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DisplayPort | 1 Pce | |||
| USB | USB 2.0 | 1 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12 to 24V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° down to 70°C | ||
| Storage | -30°C to 80°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | 21.5-inch | ||
| Width | 529,6 mm | |||
| Deep | 54,8 mm | |||
| Height | 321,3 mm | |||
| IP Rating | IP66 (front side) | |||
| Vibration | Vibration | 1G, 5 to 500 Hz | ||
| Weight | 7500 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | System Status | 1 Pce | ||
| Color | Black | |||
| Coating | Coating | Yes | ||
| Material | Anti-Glare Glas | |||
| Material | Aluminum | |||
| Mounting option | Base (or stand), Panel Mounting, VESA, Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | CB | |||
| RoHS compliant | Yes | |||
| Conforms to EuP/ErP v2.0 | Yes | |||
