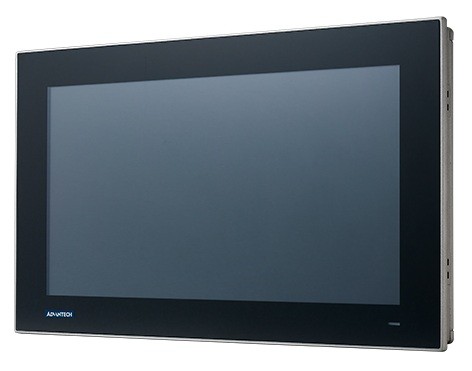

Industrial Panel-Mount Display
// 21.5" TFT LCD
// Touchscreen (Capacitive)
// IP66 (front side)
// Power Supply DC 12V
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech FPM-221W
| General information | ||||
| SKU / Item Number | FPM-221W | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Display | ||||
| Display Typ | 21.5" TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Max. Colors | 16.7 million | |||
| Contrast | 1000:1 | |||
| Luminance | 250 cd/m² | |||
| Viewing angle | Horizontal | 178 ° | ||
| Vertical | 178 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 50000 h | |||
| Touch Screen | Type | Capacitive | ||
| Interface | USB | |||
| Multitouch | 10-point | |||

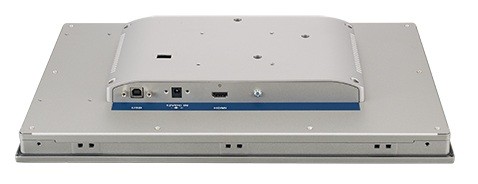

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | 21.5-inch | ||
| Width | 558,4 mm | |||
| Deep | 56,2 mm | |||
| Height | 349,8 mm | |||
| IP Rating | IP66 (front side) | |||
| Vibration | Vibration | 1G, 5 to 500 Hz | ||
| Weight | 6000 g | |||
| Material | Aluminum | |||
| Mounting option | Panel Mounting, VESA | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class A | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI, CB, KC | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
