Mini-ITX Mainboards
// Mini-ITX Industrial Mainboards
// [AMD Ryzen Embedded 8640U | AMD Ryzen Embedded 8645HS | AMD Ryzen Embedded 8840U | AMD Ryzen Embedded 8845HS]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 5 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x16
// Power Supply ATX
// DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: DFI HPT171
| General information | ||||
| SKU / Item Number | HPT171 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-HPT1711-000G, 770-HPT1711-100G, 770-HPT1711-200G, 770-HPT1711-300G | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | AMD Ryzen Embedded 8000 Series | |||
| Number | AMD Ryzen Embedded 8640U, AMD Ryzen Embedded 8645HS, AMD Ryzen Embedded 8840U, AMD Ryzen Embedded 8845HS | |||
| CPU cores | 6 Pce, 8 Pce | |||
| Threads | 12 Pce, 16 Pce | |||
| Base frequency | 3,3 GHz, 3,5 GHz, 3,8 GHz, 4,3 GHz | |||
| Max Turbo Frequency | 4,9 GHz, 5 GHz, 5,1 GHz | |||
| Cache | 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 28 W, 45 W | |||
| Basic power consumption of the processor | 15 W, 35 W | |||
| Maximum Turbo Power Consumption | 30 W, 54 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 96 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O controller | Controller 1 | I/O controller | ITE IT8786E-I/BX | |
| Graphics | ||||
| Screens (Multi-display) | 4 displays | |||
| DisplayPort | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| Version | 1.2 | |||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| PCIe x16 | x8 signal | Generation | 4 | |
| Quantity | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen 4), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | A | ||
| Interface | OOB (Out Of Box) | |||
| Supported dimensions | 3030, 3042, 3060 | |||
| M.2 Key IDs | A, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

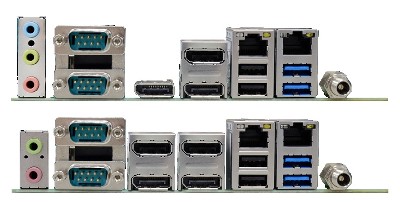

| Externe I/O (Rear Panel) | ||||
| Display | DP++ | 3 Pce, 4 Pce | ||
| DP USB-C | 1 Pce | |||
| Audio | Line-in | 1 Pce, - | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| RS-232 / 422 / 485 | DB-9 | 1 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Ports (Type-A socket) | 1 Pce | |||
| Serial | RS-232 | Ports (Special Connection) | 4 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce | |
| DIO Power | 4-pin (2 mm pitch) | |||
| SMBus | 1 Pce | |||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| Enhanced Serial Peripheral Interface (eSPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 2 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| S/PDIF | available | |||
| Verstärker | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| RAID support | RAID 0/1 | is supported | ||
| Power connection (onboard) | 2 Pce | |||
| RAID support | RAID 0/1 | |||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | dTPM 2.0 (Hardware) | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 4-pin ATX (12V DC) | |
| DC | Wide Range | No | ||
| Range | 12V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | ATX: 4-Pin ATX (12V DC), DC: 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux, Windows, Windows Embedded | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -5° to 65°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | Mini-ITX | ||
| Width | 195 mm | |||
| Deep | 170 mm | |||
| Height | 24,6 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
