Mini-ITX Mainboards
// Mini-ITX Industrial Mainboards
// [Intel Core Ultra 5 Processor 125H | Intel Core Ultra 7 Processor 155H]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 6 x USB (internal)
// Digital I/O (8-Bit)
// 1 x PCIe x8
// Power Supply DC 8 to 34V
// 9 to 28V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

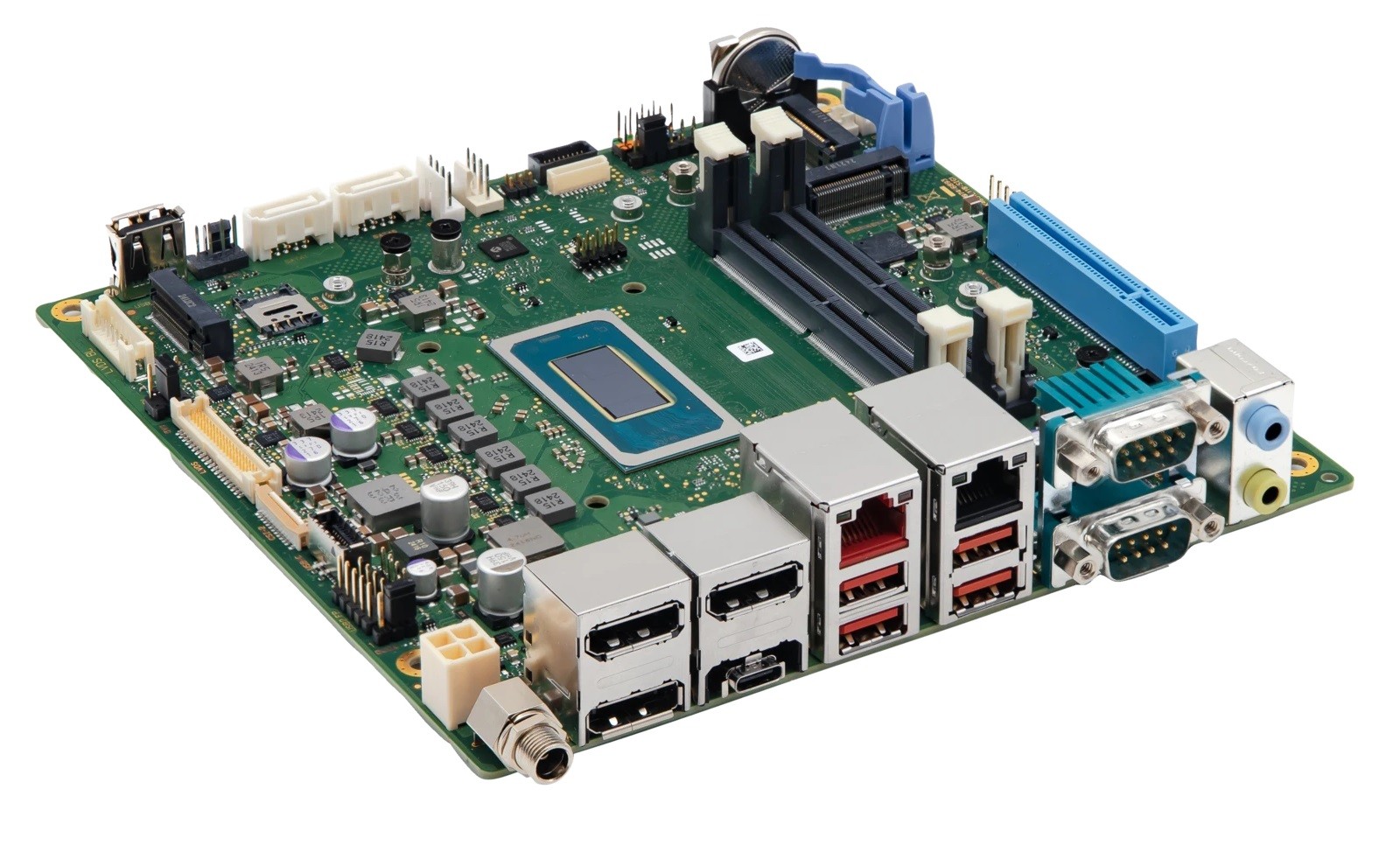

Basic Module: Kontron K4031-H
| General information | ||||
| SKU / Item Number | K4031-H | |||
| Product Basic Data | ||||
| Manufacturer | Kontron | |||
| System | ||||
| Processor | Series | Intel Meteor Lake | ||
| Number | Intel Core Ultra 5 Processor 125H, Intel Core Ultra 7 Processor 155H | |||
| CPU cores | 14 Pce, 16 Pce | |||
| Threads | 18 Pce, 22 Pce | |||
| Socket | BGA 2049 | |||
| Performance core base clock frequency | 1,2 GHz, 1,4 GHz | |||
| Performance Core Max Turbo Frequency | 4,5 GHz, 4,8 GHz | |||
| Efficient-core base clock frequency | 0,7 GHz, 0,9 GHz | |||
| Efficient-core Max Turbo Frequency | 3,6 GHz, 3,8 GHz | |||
| Cache | 18 MB, 24 MB | |||
| Basic power consumption of the processor | 28 W | |||
| Maximum Turbo Power Consumption | 115 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 96 GB | |||
| BIOS | AMI UEFI Aptio 5.x | |||
| Graphics | ||||
| Processor | Intel Arc Graphics | |||
| Screens (Multi-display) | 4 displays | |||
| DisplayPort | Version | 1.4A | ||
| Extension | ||||
| PCIe x8 | Generation | 5 | ||
| x8 signal | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x8 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2230, 2242, 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2230, 2242, 2280 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×2, USB 2.0 | |||
| Supported dimensions | 2230, 3052 | |||
| Slot 4 | Key ID | E | ||
| Interface | CNVi (Connected Network Interface), WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC256 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Realtek RTL8126 (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

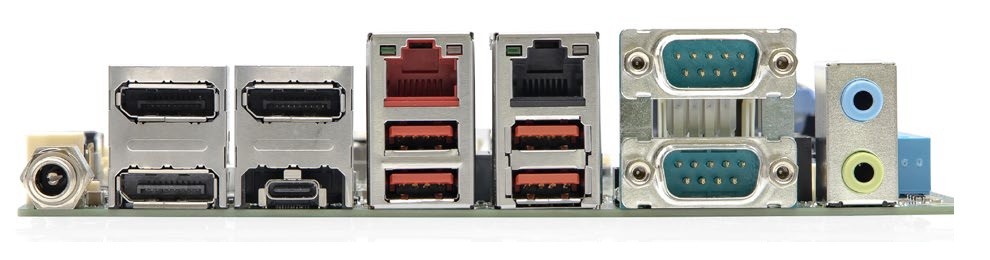

| Externe I/O (Rear Panel) | ||||
| Display | DisplayPort | 3 Pce | ||
| DP USB-C | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 3.2 (Gen 2) | 4 Pce | ||
| USB v4.0 Type C | Stück | 1 Pce | ||
| Data transfer modes | DisplayPort v.1.4 | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 3 Pce | |
| Ports (Type-A socket) | 1 Pce | |||
| USB 3.1 | Key-A Header (20-pin) | 1 Pce | ||
| USB 3.2 | Key-A Header (20-pin) | 1 Pce | ||
| Generation | Gen. 1 | |||
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| LVDS connectors | 1 Pce | |||
| eDP (Embedded DisplayPort) lanes | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Image Capture Interfaces | Camera Input 1 | Quantity | 1 Pce | |
| Standard | MIPI CSI-2 | |||
| Audio | Connector | 2.00 mm pitch | ||
| S/PDIF | available | |||
| Verstärker | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| RAID support | RAID 0/1 | is supported | ||
| Power connection (onboard) | 1 Pce | |||
| RAID support | RAID 0/1 | |||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Intel PTT (like TPM 2.0) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 8 to 34V | |||
| Connector | Male connector (screw-in) | |||
| Current | 10 A | |||
| DC | Wide Range | Yes | ||
| Range | 8 to 34V | |||
| Connector | 4-pin connector (horizontal) | |||
| Current | 10 A | |||
| DC | Range | 9 to 28V | ||
| Connector | USB Type-C | |||
| Power supply - Input | DC: 8~34V,8~34V,9~28V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| Typ (Output) | DC | Range | 5V | |
| Connector | USB Type-C | |||
| Current | 3 A | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Dimensions | Form factor | Mini-ITX | ||
| Width | 170 mm | |||
| Deep | 170 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | IEC 62368-1, UKCA | |||
| RoHS compliant | Yes | |||
