ATX Server Mainboards
// ATX Industrial Mainboards
// LGA 3647 (P3)
// [Intel C621 | Intel C622]
// 288-pin DDR4 DIMM
// [2 | 4] x G-LAN (Back side)
// 6 x USB (Back side)
// 7 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x PCIe x4
// 3 x PCIe x8
// 2 x PCIe x16
// 1 x Mini-PCIe
// Power Supply ATX
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: MSI MS-98M9
| General information | ||||
| SKU / Item Number | MS-98M9 | |||
| Product Basic Data | ||||
| Manufacturer | MSI | |||
| Product ID | 919-98M9-001, 919-98M9-002 | |||
| System | ||||
| Processor | Vertical Segment | Server | ||
| Socket | LGA 3647 (P3) | |||
| Thermal Design Power (TDP) | 205 W | |||
| Chipset | Intel C621, Intel C622 | |||
| Memory | Structure | 288-pin DDR4 DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | ECC RDIMM | |||
| Frequency | 2666 MHz | |||
| Slots | 6 Pce | |||
| Maximum expansion | 192 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| BIOS | AMI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81866AD-I | |
| Extension | ||||
| PCIe x4 | x4 signal | 2 Pce | ||
| PCIe x8 | x8 signal | 3 Pce | ||
| PCIe x16 | x16 signal | Quantity | 2 Pce | |
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| mSATA support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe, 2x PCIe x4, 2x PCIe x16 slots, 3x PCIe x8 | |||
| Audio | ||||
| Chipset | Realtek ALC887-VD2-CG | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Controller | Chipset | -, Intel X557-AT2 (10 Gbps) | ||
| Quantity | 1 Pce, - | |||
| Network | 2x G-LAN | |||

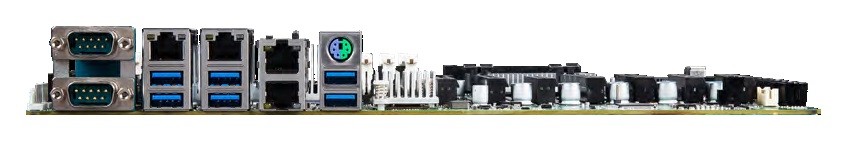

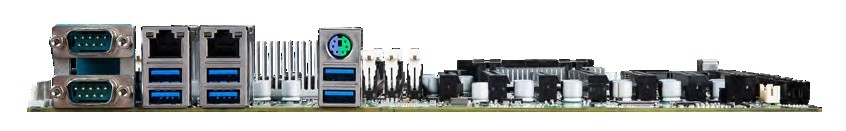

| Externe I/O (Rear Panel) | ||||
| Ethernet | RJ-45 | 2 Pce, 4 Pce | ||
| PS/2 | mini-DIN-6 | 1 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 3.2 (Gen 1) | 6 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 6 Pce | |
| Ports (Type-A socket) | 1 Pce | |||
| Serial | RS-232 | Ports (2.54 mm pitch) | 4 Pce | |
| Digital I/O | Bits | 8-bit | 2 Pce | |
| SMBus | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| S/PDIF | available | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 8 Pce | ||
| RAID support | RAID 0/1/5/10 | is supported | ||
| RAID support | RAID 0/1/5/10 | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Infineon SLB 9665 TT 2.0 | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 8-pin ATX (12V DC), 24-pin ATX | |||
| OS / Software | ||||
| Windows | Windows Server 2012 | is supported | ||
| Windows Server 2016 | is supported | |||
| Windows Server 2019 | is supported | |||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows, Windows Embedded | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Storage | 10 to 90%, non-condensing | |||
| Dimensions | Form factor | ATX | ||
| Width | 305 mm | |||
| Deep | 244 mm | |||
| Weight | 900 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | BSMI, RCM, VCCI | |||
| RoHS compliant | Yes | |||
