ATX Server Mainboards
// ATX Industrie-Mainboards
// LGA 3647 (P3)
// [Intel C621 | Intel C622]
// 288 Pin DIMM DDR4
// [2 | 4] x G-LAN (Back side)
// 6 x USB (Back side)
// 7 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x PCIe x4
// 3 x PCIe x8
// 2 x PCIe x16
// 1 x Mini-PCIe
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

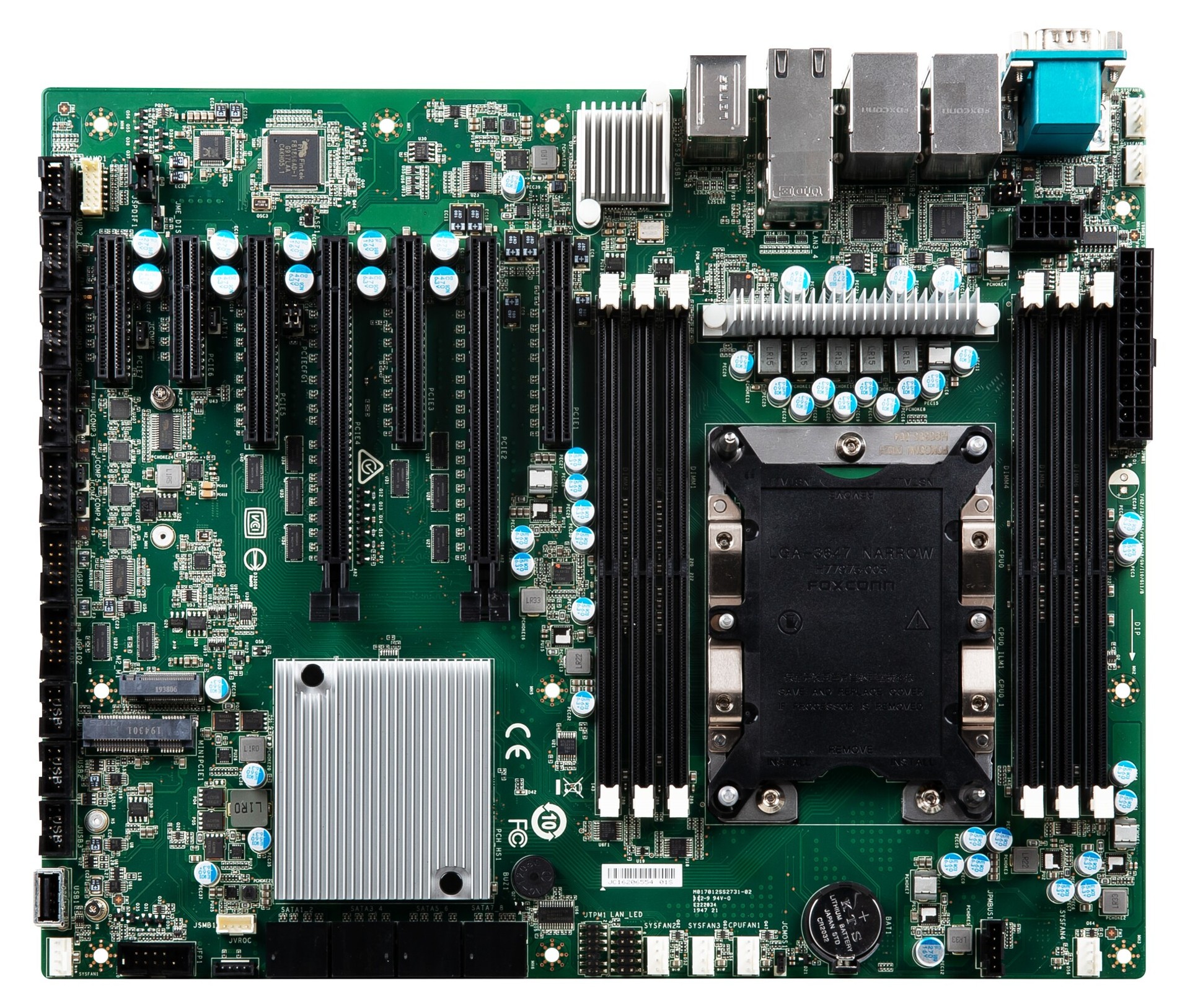

Basismodul: MSI MS-98M9
| Allgemein | ||||
| SKU / Artikelnummer | MS-98M9 | |||
| Produktgrunddaten | ||||
| Hersteller | MSI | |||
| Produkt-ID | 919-98M9-001, 919-98M9-002 | |||
| System | ||||
| Prozessor | Vertikales Segment | Server | ||
| Sockel | LGA 3647 (P3) | |||
| Thermal Design Power (TDP) | 205 W | |||
| Chipsatz | Intel C621, Intel C622 | |||
| Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| DIMM Type | ECC RDIMM | |||
| Frequenz | 2666 MHz | |||
| Steckplätze | 6 St | |||
| Maximaler Ausbau | 192 GB | |||
| ECC | wird unterstützt | |||
| BIOS | AMI BIOS | |||
| I/O Controller | Controller 1 | I/O Controller | Fintek F81866AD-I | |
| Erweiterung | ||||
| PCIe x4 | x4 Signal | 2 St | ||
| PCIe x8 | x8 Signal | 3 St | ||
| PCIe x16 | x16 Signal | Anzahl | 2 St | |
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| mSATA Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe, 2x PCIe x4, 2x PCIe x16, 3x PCIe x8 | |||
| Audio | ||||
| Chipsatz | Realtek ALC887-VD2-CG | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Anzahl | 2 St | |||
| Controller | Chipsatz | -, Intel X557-AT2 (10 Gbps) | ||
| Anzahl | 1 St, - | |||
| Netzwerk | 2x G-LAN | |||

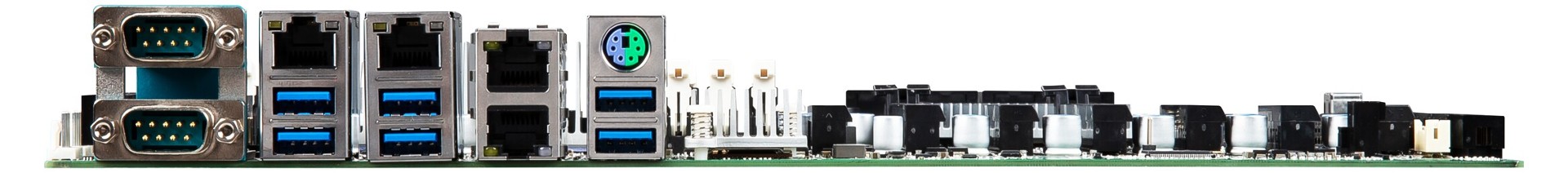

| Externe I/O (Rückseite) | ||||
| Ethernet | RJ-45 | 2 St, 4 St | ||
| PS/2 | mini-DIN-6 | 1 St | ||
| Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
| USB | USB v3.2 (Gen 1) | 6 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 6 St | |
| Ports (Typ-A-Buchse) | 1 St | |||
| Seriell | RS-232 | Ports (2.54 mm Pitch) | 4 St | |
| Digital I/O | Bits | 8-Bit | 2 St | |
| SMBus | 1 St | |||
| Audio | Anschluss | 2.00 mm Pitch | ||
| S/PDIF | verfügbar | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 8 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| RAID Unterstützung | RAID 0/1/5/10 | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Infineon SLB 9665 TT 2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
| Betriebssysteme / Software | ||||
| Windows | Windows Server 2012 | wird unterstützt | ||
| Windows Server 2016 | wird unterstützt | |||
| Windows Server 2019 | wird unterstützt | |||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
| Linux | Distribution | Linux | ||
| Unterstützte BS | Linux, Windows, Windows Embedded | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -20° bis 80°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
| Lagerung | 10 bis 90%, nicht kondensierend | |||
| Abmaße | Formfaktor | ATX | ||
| Breite | 305 mm | |||
| Tiefe | 244 mm | |||
| Gewicht | 900 g | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | BSMI, RCM, VCCI | |||
| RoHS konform | Ja | |||
