E-ATX Server Mainboards
// E-ATX Industrial Mainboards
// LGA 3647 (P3)
// LGA 3647 (P3)
// Intel C621
// 288-pin DDR4 DIMM
// 4 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 2 x Seriell I/O
// 1 x PCI
// 2 x PCIe x8
// 4 x PCIe x16
// Power Supply ATX
Sales only to business customers.
Delivery time: upon request

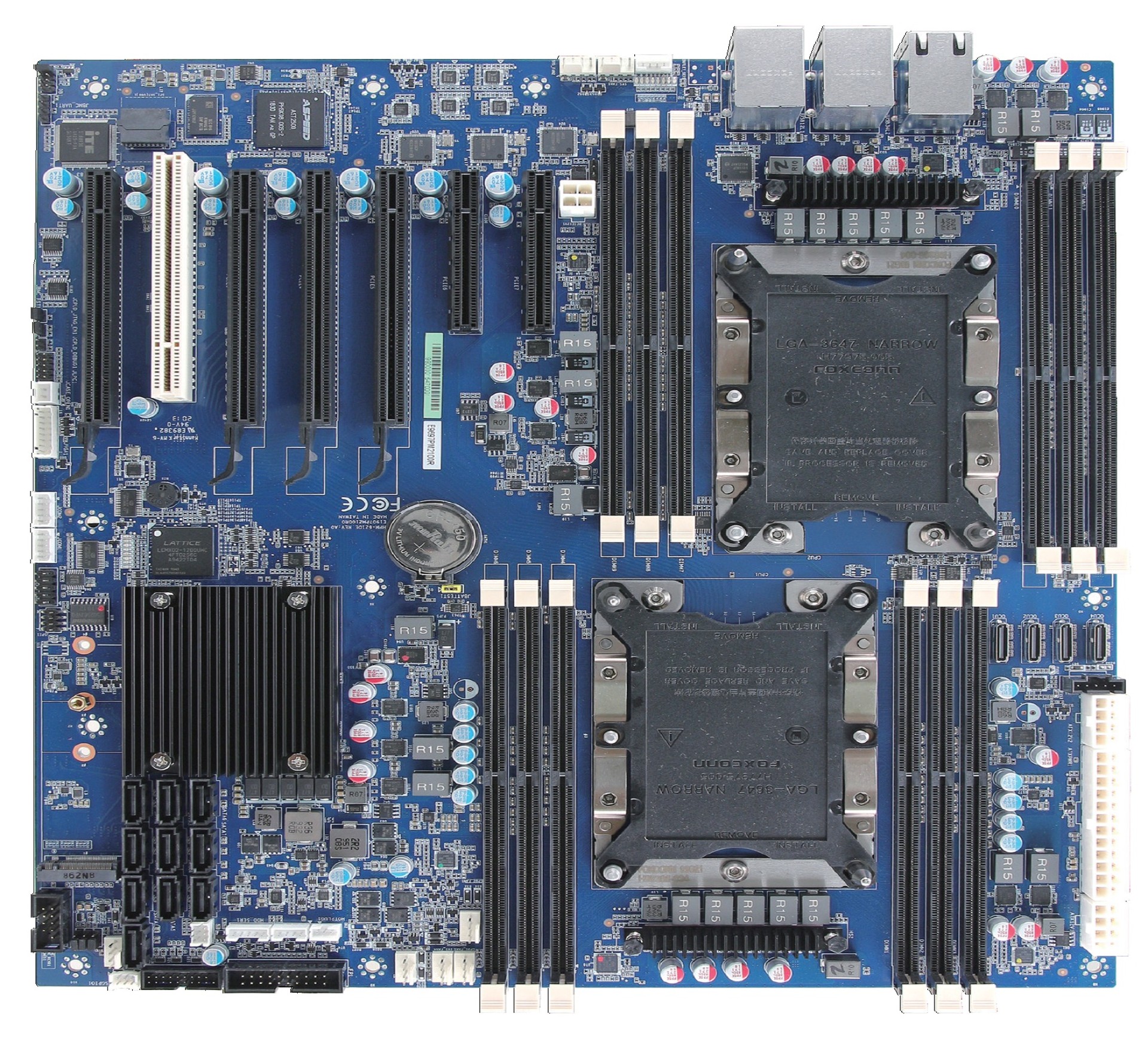

Basic Module: Avalue HPM-621DE
| General information | ||||
| SKU / Item Number | HPM-621DE | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Vertical Segment | Server | ||
| Socket | LGA 3647 (P3) | |||
| Thermal Design Power (TDP) | 150 W | |||
| Processor 2 | Socket | LGA 3647 (P3) | ||
| Thermal Design Power (TDP) | 150 W | |||
| Chipset | Intel C621 | |||
| Memory | Structure | 288-pin DDR4 DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Registered DIMM | |||
| Frequency | 2666 / 2933 MHz | |||
| Slots | 12 Pce | |||
| Maximum expansion | 1536 GB | |||
| BIOS | AMI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Aspeed AST2500 BMC | |
| IPMI (Intelligent Platform Management Interface) | IPMI controller | Aspeed AST2500 BMC | ||
| Version | 2.0 | |||
| Graphics | ||||
| Processor | Aspeed AST2500 BMC | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Extension | ||||
| PCI | Version | 3.0 | ||
| Quantity | 1 Pce | |||
| PCI Interfaces | 1x PCI slot | |||
| PCIe x8 | x8 signal | 2 Pce | ||
| PCIe x16 | x16 signal | Quantity | 4 Pce | |
| PCIe Interfaces | 2x PCIe x8, 4x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen. 3), SATA III | |||
| Supported dimensions | 2242, 2260, 2280 | |||
| M.2 Key IDs | M | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 4 Pce | |||
| Network | 4x G-LAN | |||

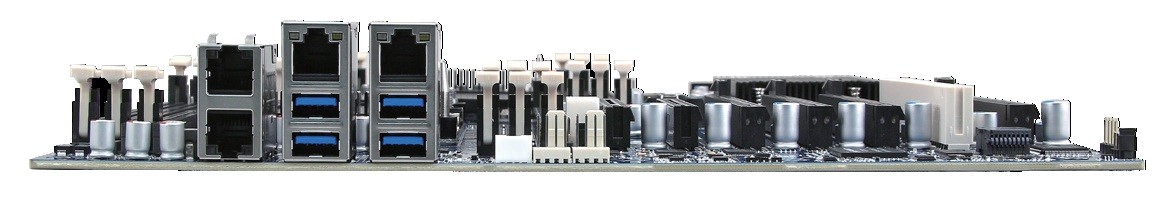

| Externe I/O (Rear Panel) | ||||
| Ethernet | RJ-45 | 4 Pce | ||
| USB | USB 3.2 (Gen 1) | 4 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| USB 3.2 | Key-A Header (20-pin) | 2 Pce | ||
| Serial | RS-232 | Ports (2.00 mm pitch) | 2 Pce | |
| Display | VGA (2.00 mm pitch) | 1 Pce | ||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 10 Pce | ||
| RAID support | RAID 0/1/5/10 | is supported | ||
| RAID support | RAID 0/1/5/10 | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 2 x 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 2 x 8-pin ATX (12V DC), 24-pin ATX | |||
| Real-Time Clock (RTC) Battery | CR2450 Button Cell Battery | |||
| OS / Software | ||||
| Windows | Windows Server 2016 | is supported | ||
| Windows Server 2019 | is supported | |||
| Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | is supported | ||
| Windows 10 Enterprise IoT LTSC (2019) | is supported | |||
| Supported OS | Windows, Windows Embedded | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | E-ATX | ||
| Width | 304,8 mm | |||
| Deep | 330,2 mm | |||
| Weight | 1800 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
