E-ATX Server Mainboards
// E-ATX Industrie-Mainboards
// LGA 3647 (P3)
// LGA 3647 (P3)
// Intel C621
// 288 Pin DIMM DDR4
// 4 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 2 x Seriell I/O
// 1 x PCI
// 2 x PCIe x8
// 4 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

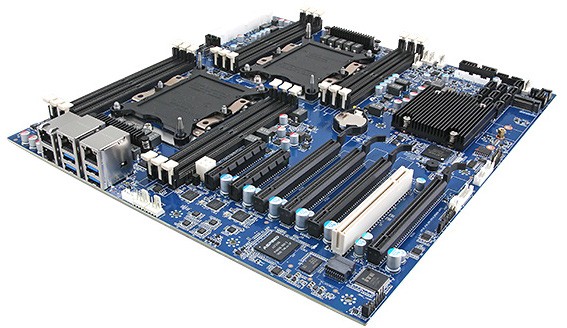

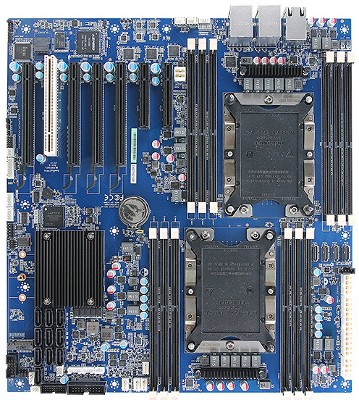

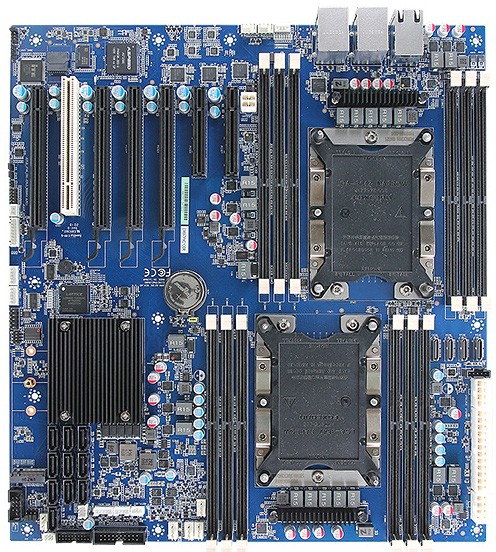

Basismodul: Avalue HPM-621DE
Allgemein | ||||
SKU / Artikelnummer | HPM-621DE | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Sockel | LGA 3647 (P3) | |||
Thermal Design Power (TDP) | 150 W | |||
Prozessor 2 | Sockel | LGA 3647 (P3) | ||
Thermal Design Power (TDP) | 150 W | |||
Chipsatz | Intel C621 | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Memory Type | DDR4 | |||
DIMM Type | Registered DIMM | |||
Frequenz | 2666 / 2933 MHz | |||
Steckplätze | 12 St | |||
Maximaler Ausbau | 1536 GB | |||
BIOS | AMI BIOS | |||
I/O Controller | Controller 1 | I/O Controller | Aspeed AST2500 BMC | |
IPMI | IPMI-Controller | Aspeed AST2500 BMC | ||
Version | 2.0 | |||
Grafik | ||||
Prozessor | Aspeed AST2500 BMC | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCI | Version | 3.0 | ||
Anzahl | 1 St | |||
PCI Schnittstellen | 1x PCI | |||
PCIe x8 | x8 Signal | 2 St | ||
PCIe x16 | x16 Signal | Anzahl | 4 St | |
PCIe Schnittstellen | 2x PCIe x8, 4x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2242, 2260, 2280 | |||
M.2 Key IDs | M | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 4 St | |||
Netzwerk | 4x G-LAN | |||
Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 4 St | ||
USB | USB v3.2 (Gen 1) | 4 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
USB v3.2 | Key-A Header (20-Pin) | 2 St | ||
Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St | |
Anzeige | VGA (2.00 mm Pitch) | 1 St | ||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 10 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC), 24-Pin ATX | |||
Real-Time Clock (RTC) Batterie | CR2450 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows Server 2016 | wird unterstützt | ||
Windows Server 2019 | wird unterstützt | |||
Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | |||
Unterstützte BS | Windows, Windows Embedded | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | E-ATX | ||
Breite | 304,8 mm | |||
Tiefe | 330,2 mm | |||
Gewicht | 1800 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
